TS and CG Terminal Circuit: Wiring Diagram

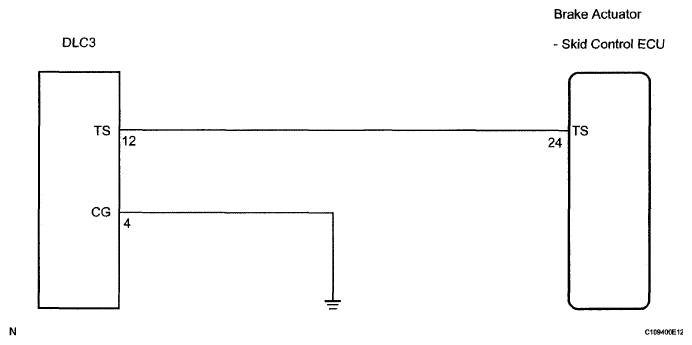

Fig 1: TS And CG Terminal - Wiring Diagram
G05131063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
