VSC Warning Light Remains ON: Wiring Diagram

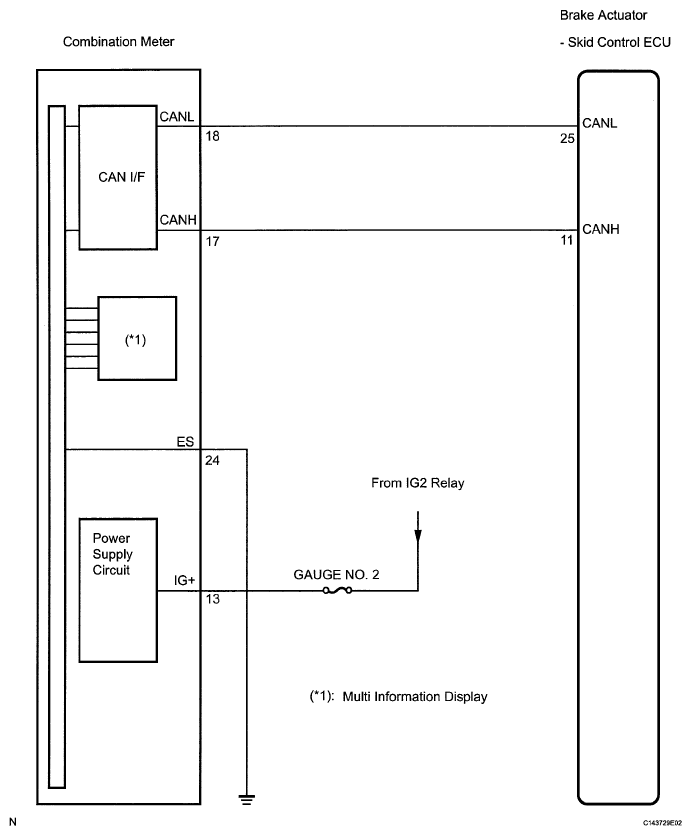

Fig 1: VSC Warning Light - Wiring Diagram
G05250449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
