Navigation, Parking Assist (Rear View Monitor) and Audio System: Notes

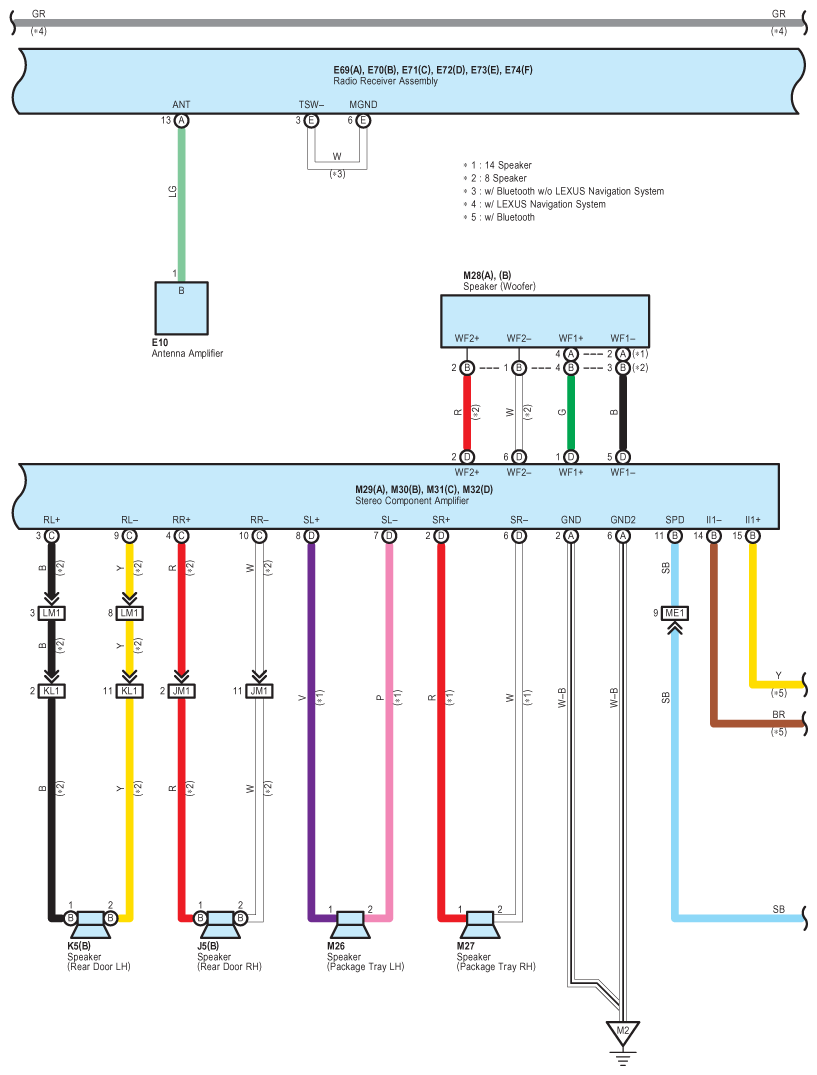

Fig 1: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

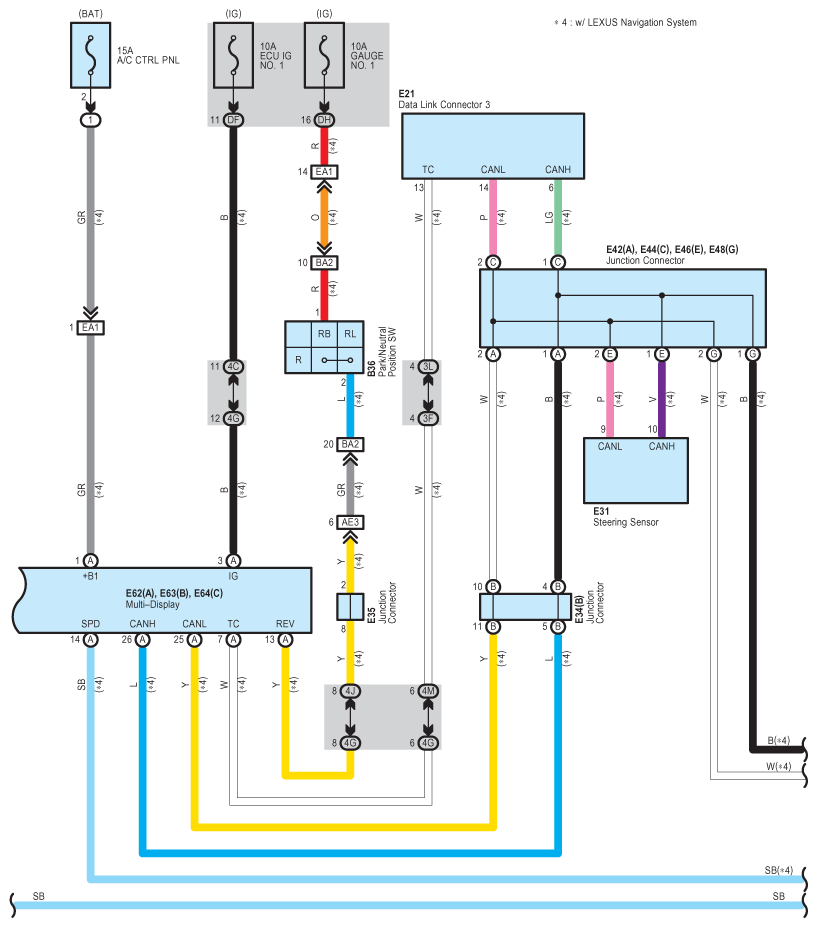

Fig 2: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

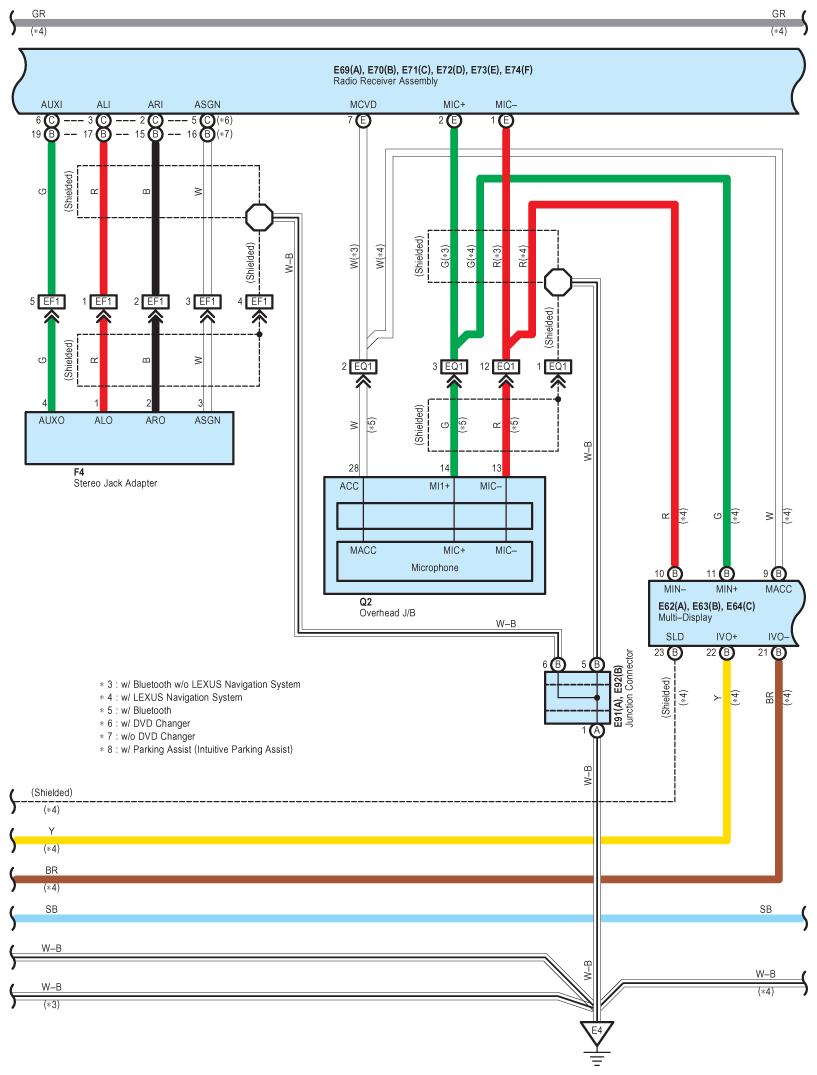

Fig 3: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

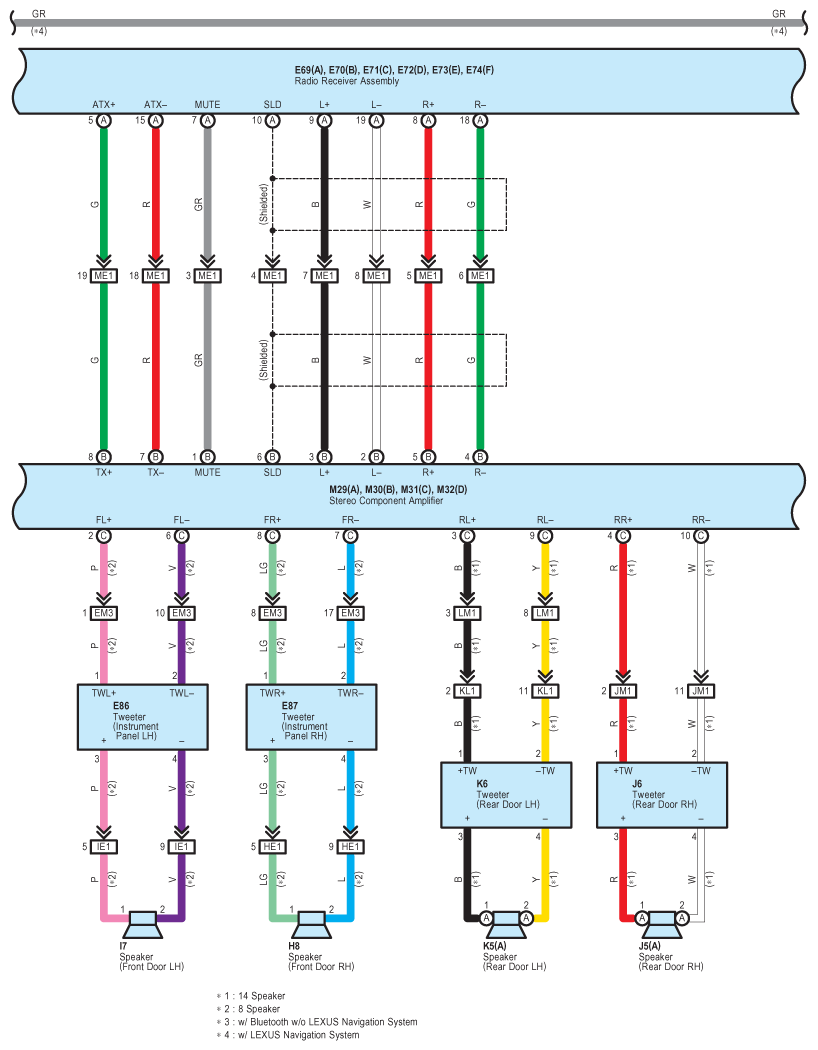

Fig 4: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

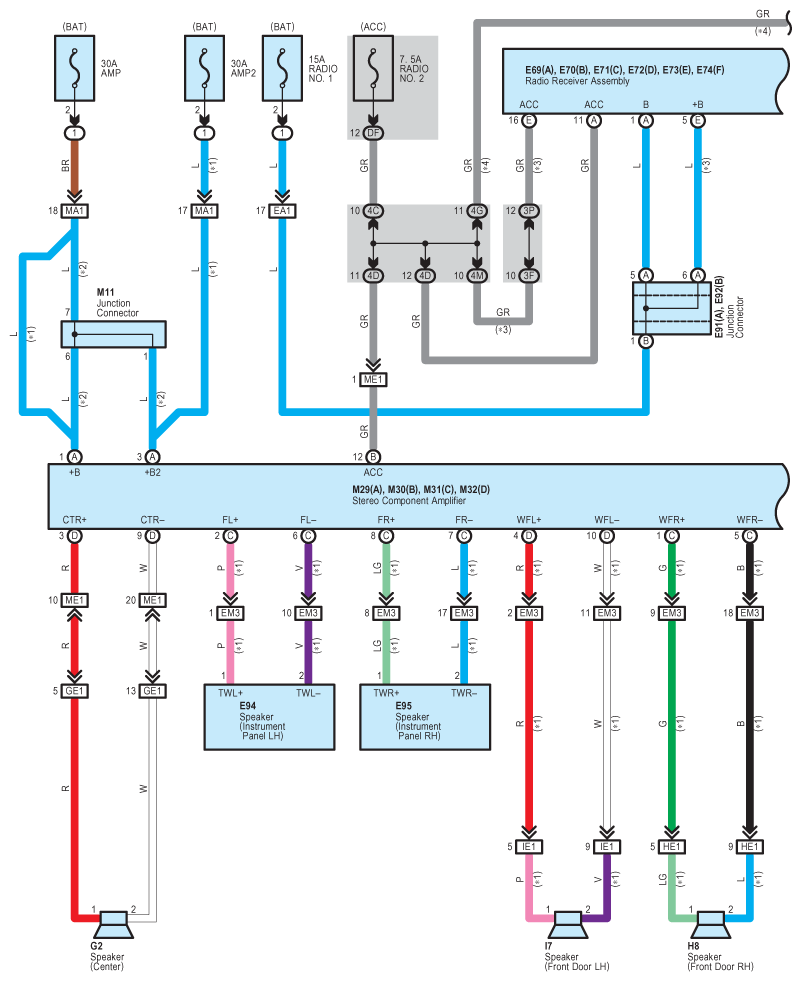

Fig 5: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

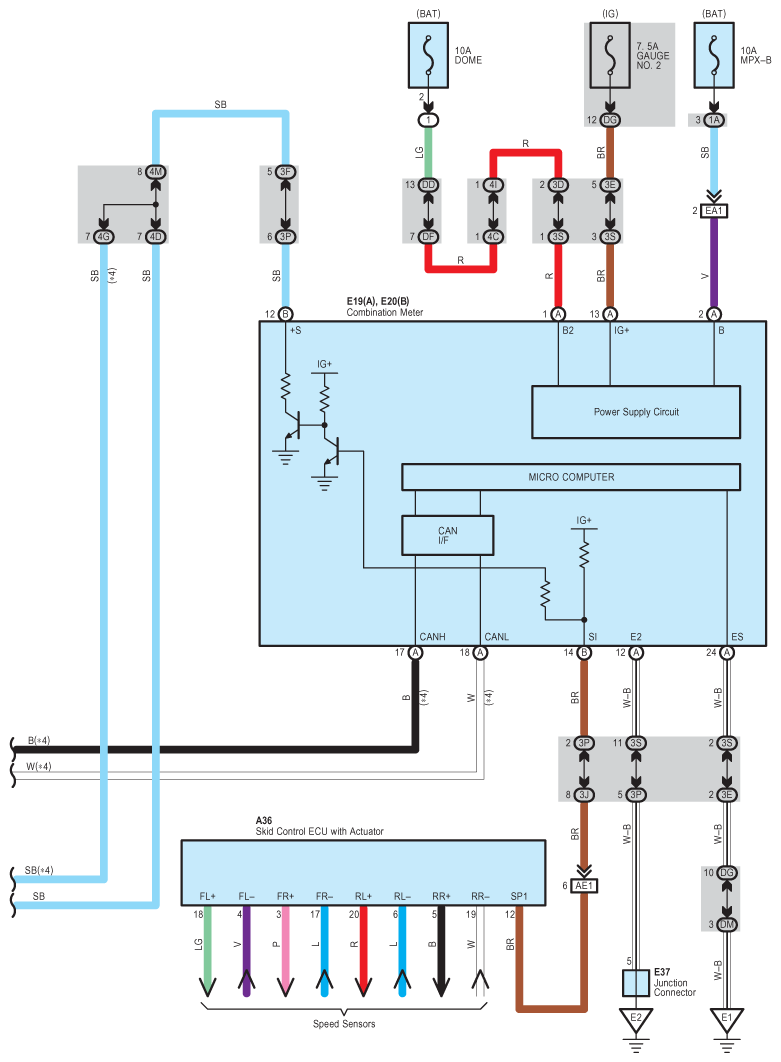

Fig 6: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (6 Of 8)

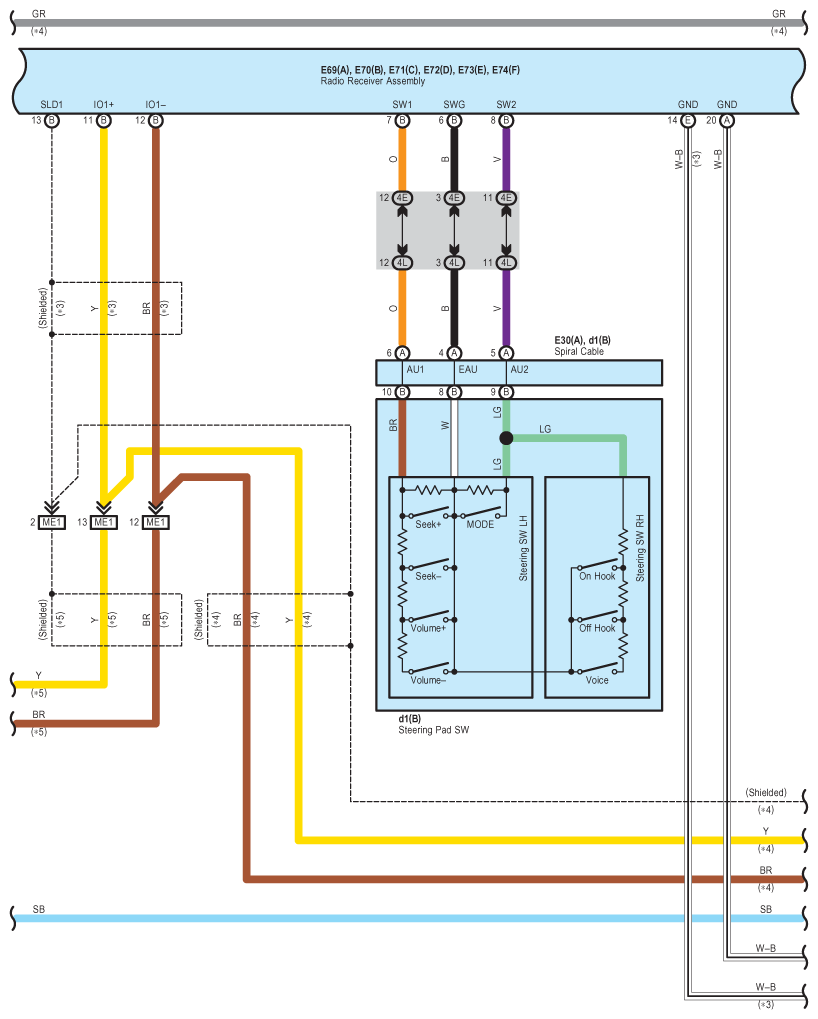

Fig 7: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (7 Of 8)

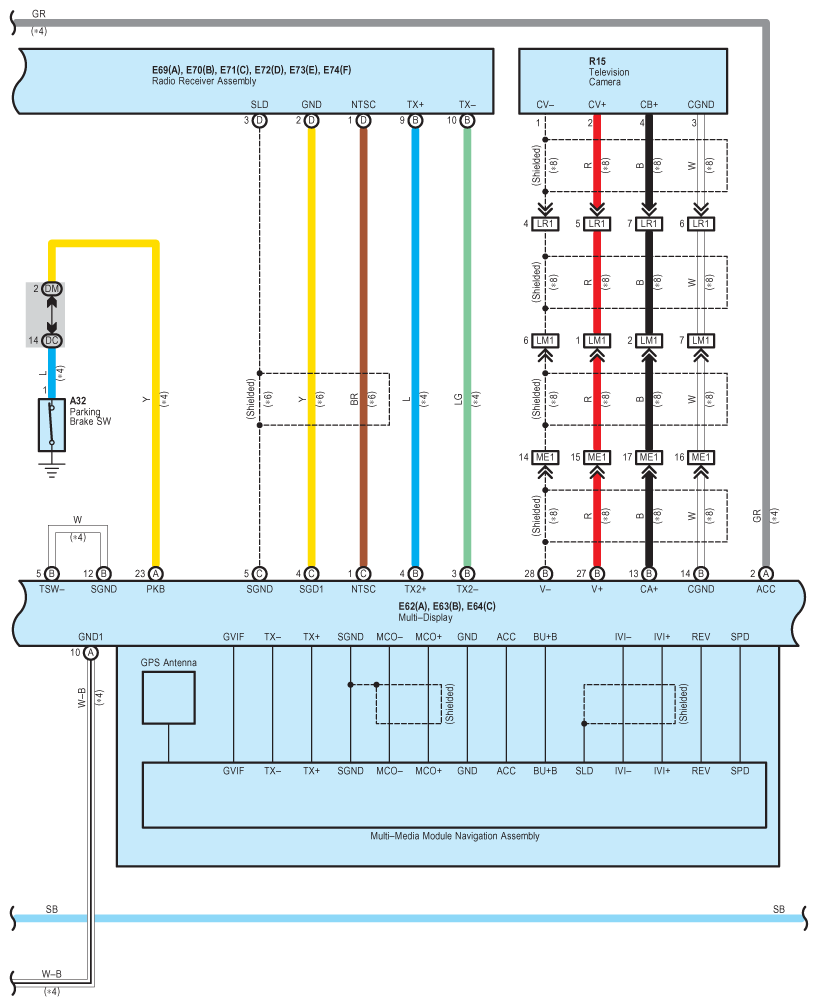

Fig 8: Navigation, Parking Assist (Rear View Monitor) And Audio System Wiring Diagram (8 Of 8)
