Parking Assist (Intuitive Parking Assist): Notes

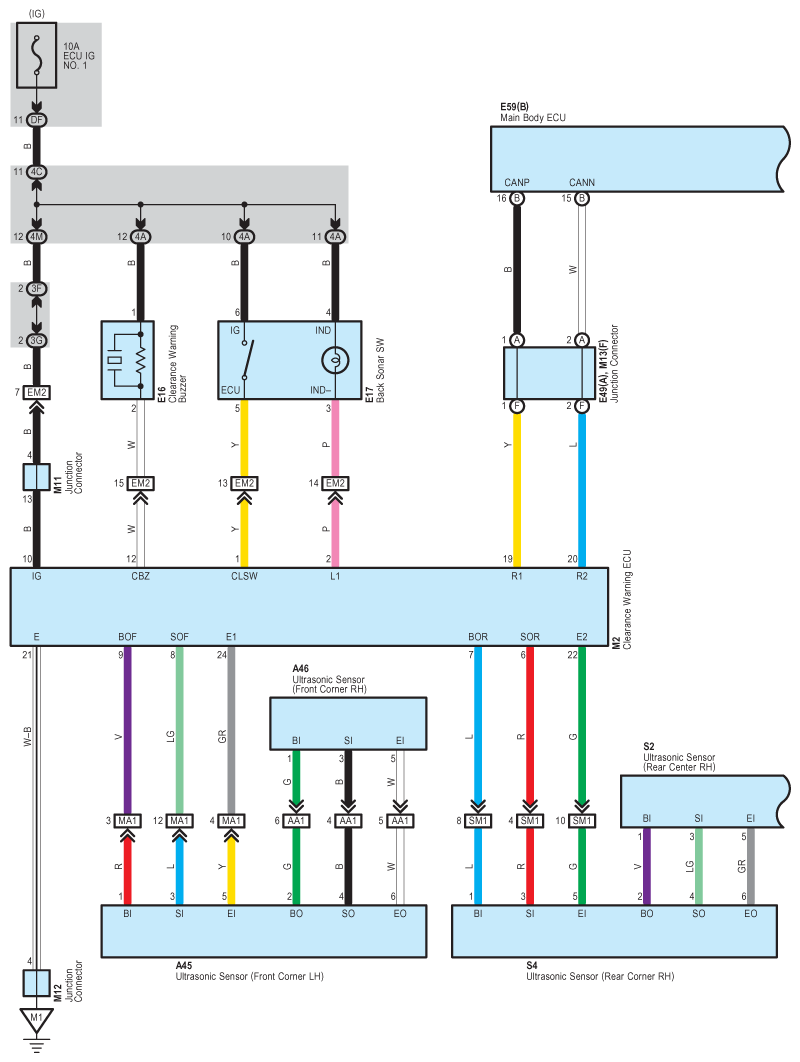

Fig 1: Parking Assist (Intuitive Parking Assist) System Wiring Diagram (1 Of 3)
G08916944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

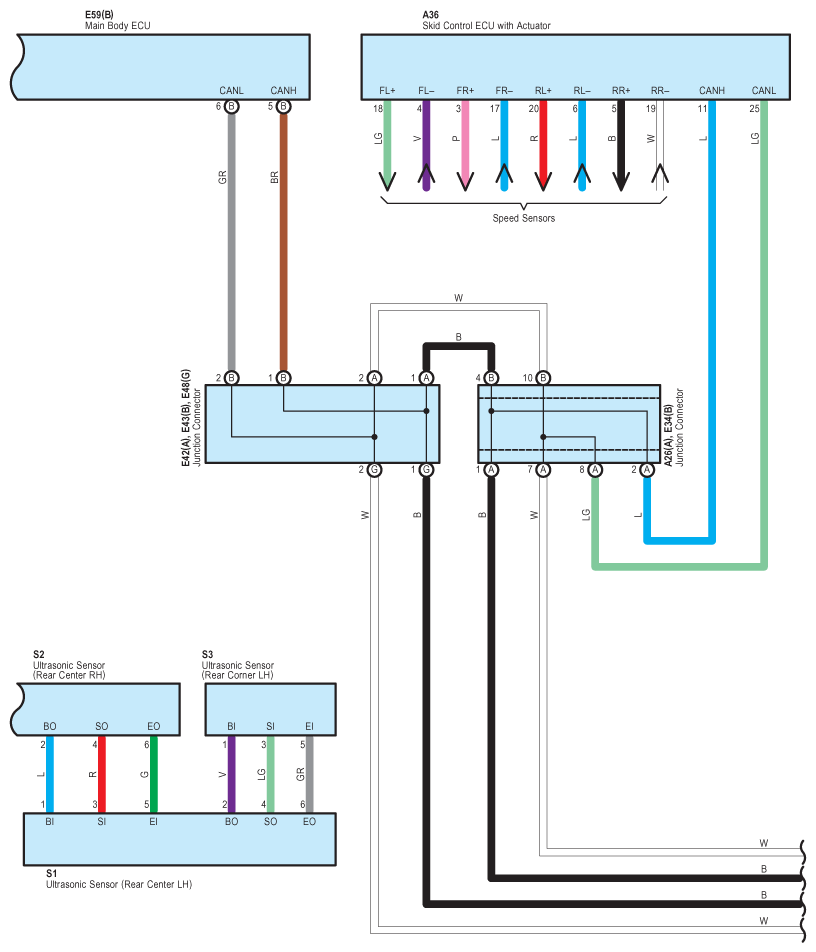

Fig 2: Parking Assist (Intuitive Parking Assist) System Wiring Diagram (2 Of 3)
G08916945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

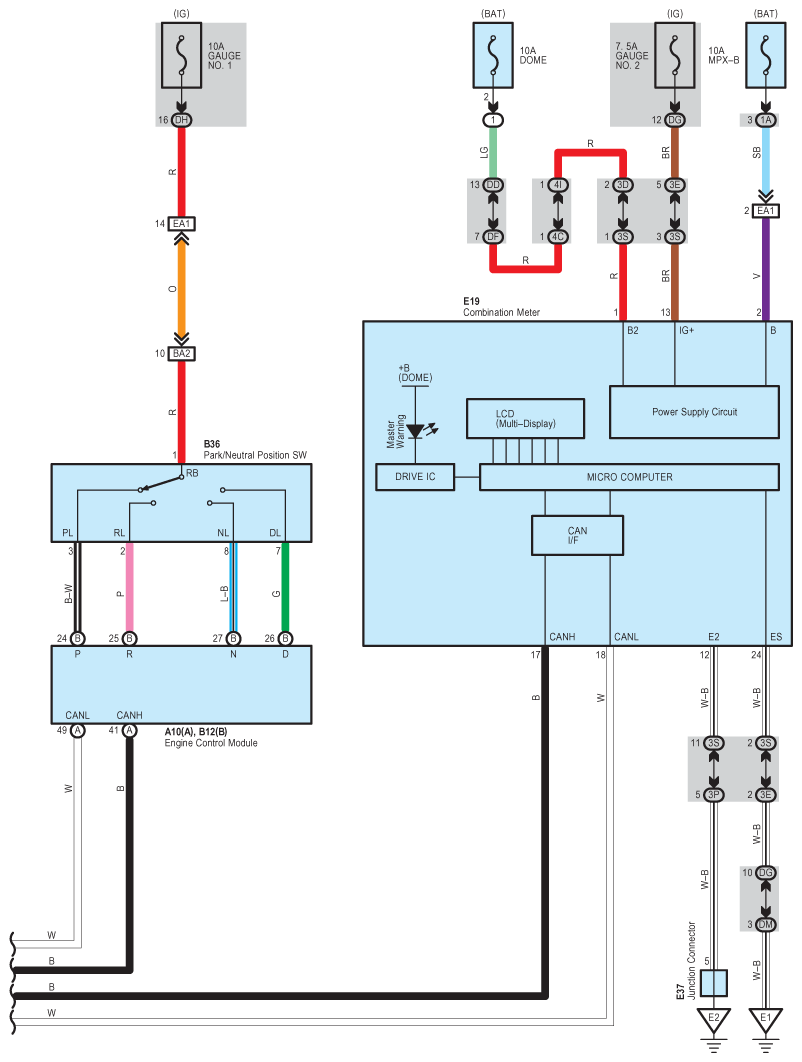

Fig 3: Parking Assist (Intuitive Parking Assist) System Wiring Diagram (3 Of 3)
G08916946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
