Wiper and Washer with Auto Wiper System: Notes

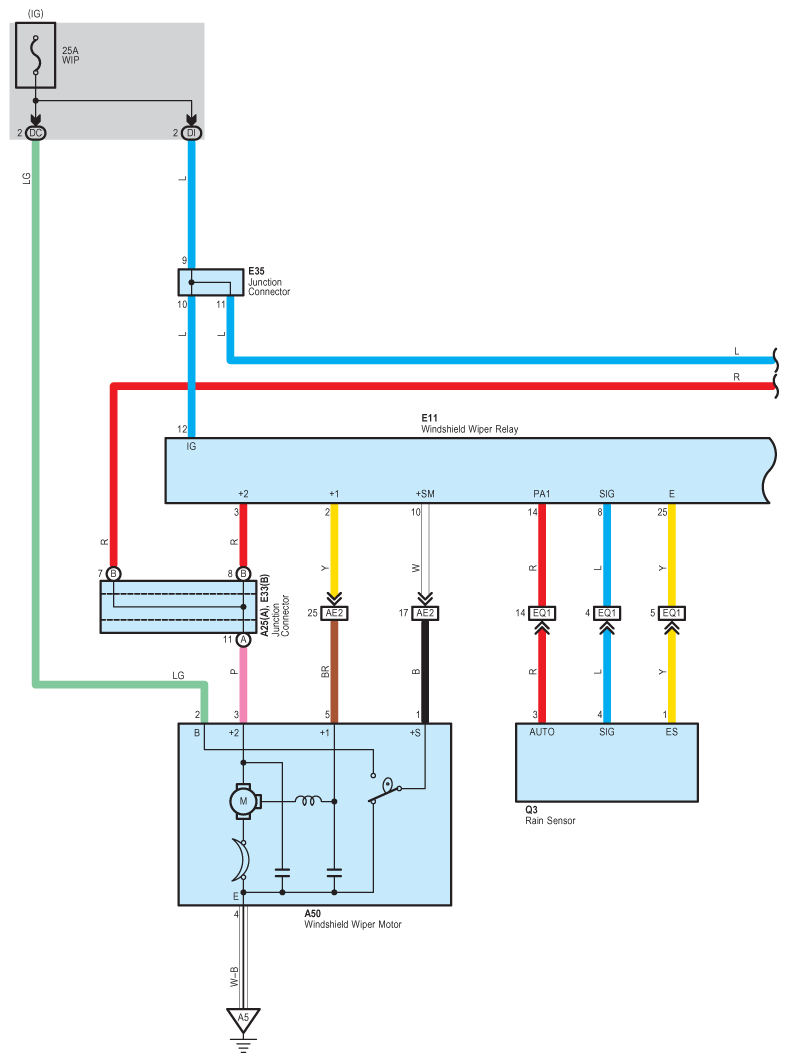

Fig 1: Wiper And Washer With Auto Wiper System Wiring Diagram (1 Of 4)
G08916824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

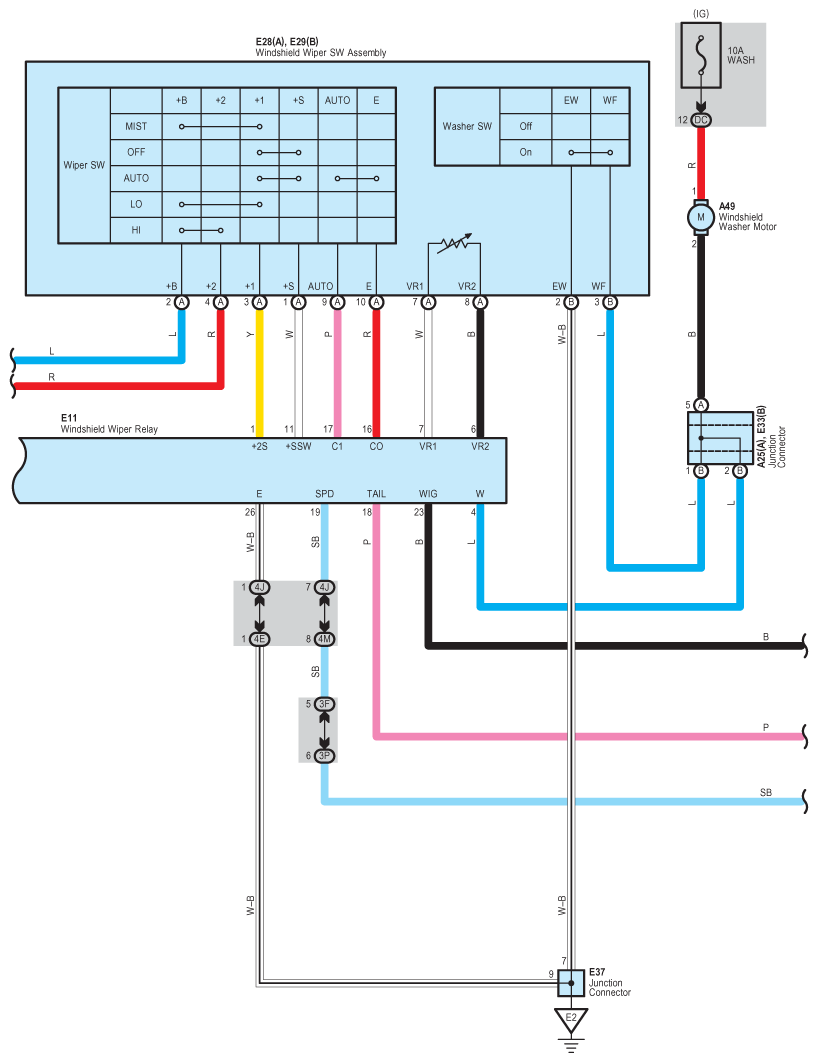

Fig 2: Wiper And Washer With Auto Wiper System Wiring Diagram (2 Of 4)
G08916825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

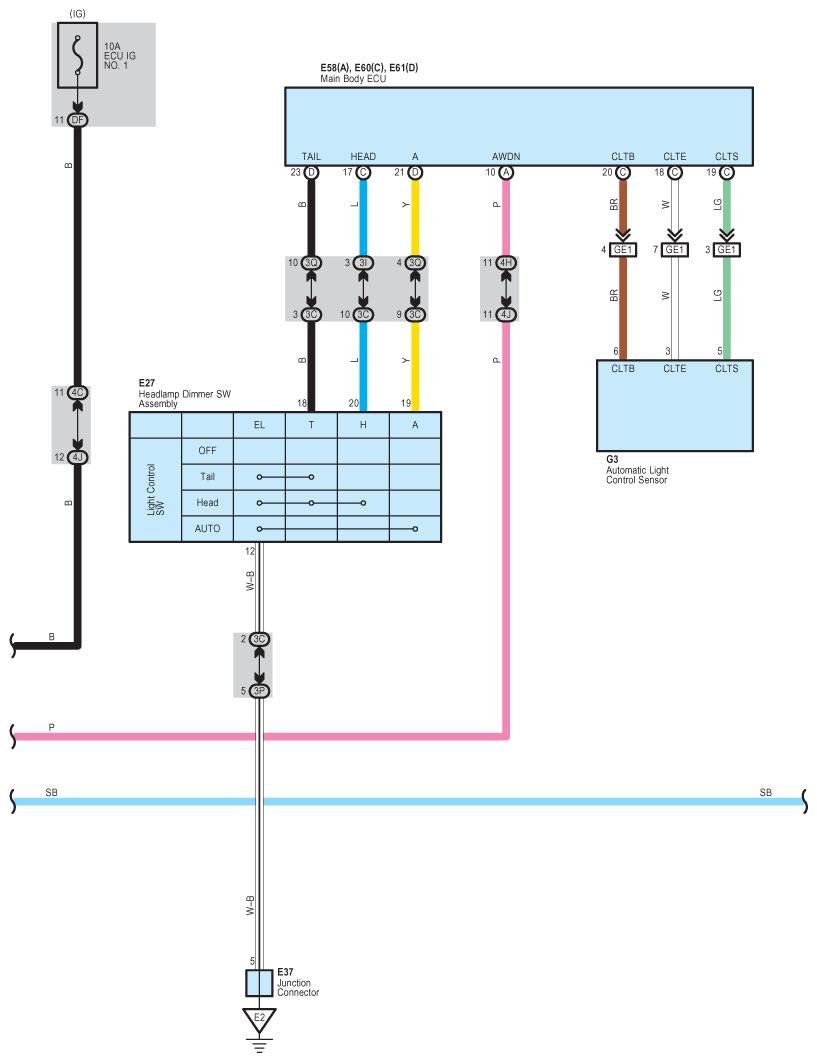

Fig 3: Wiper And Washer With Auto Wiper System Wiring Diagram (3 Of 4)
G08916826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

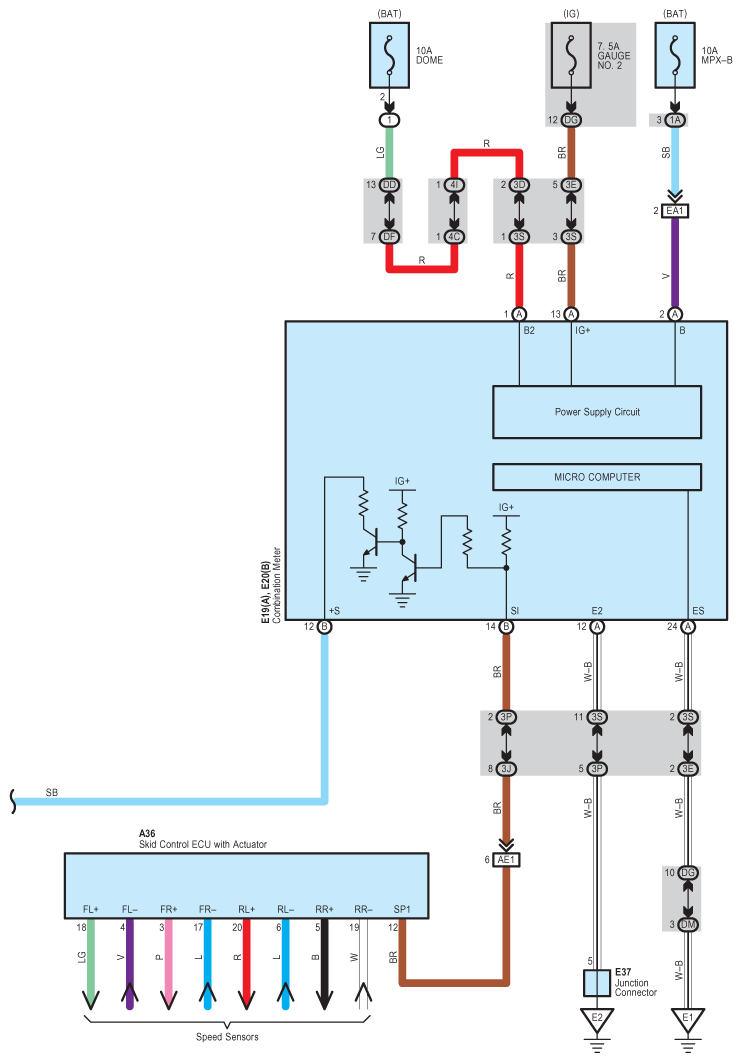

Fig 4: Wiper And Washer With Auto Wiper System Wiring Diagram (4 Of 4)
G08916827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
