Rear Console Box: Components

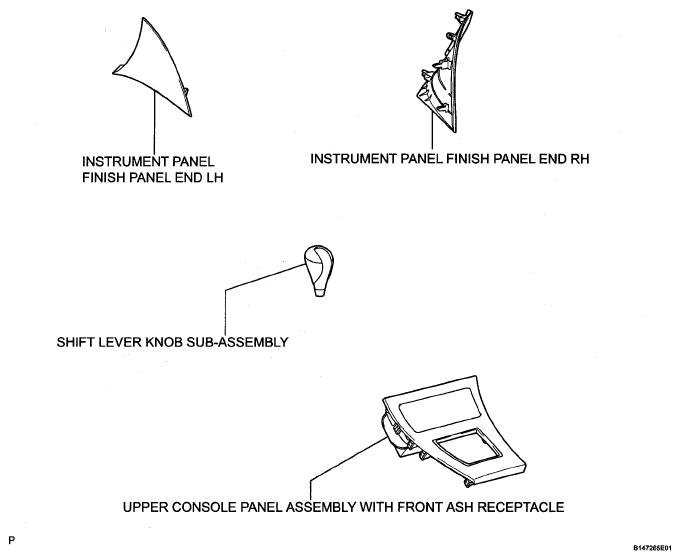

Fig 1: Identifying Rear Console Box Components (1 Of 3)
G05252486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

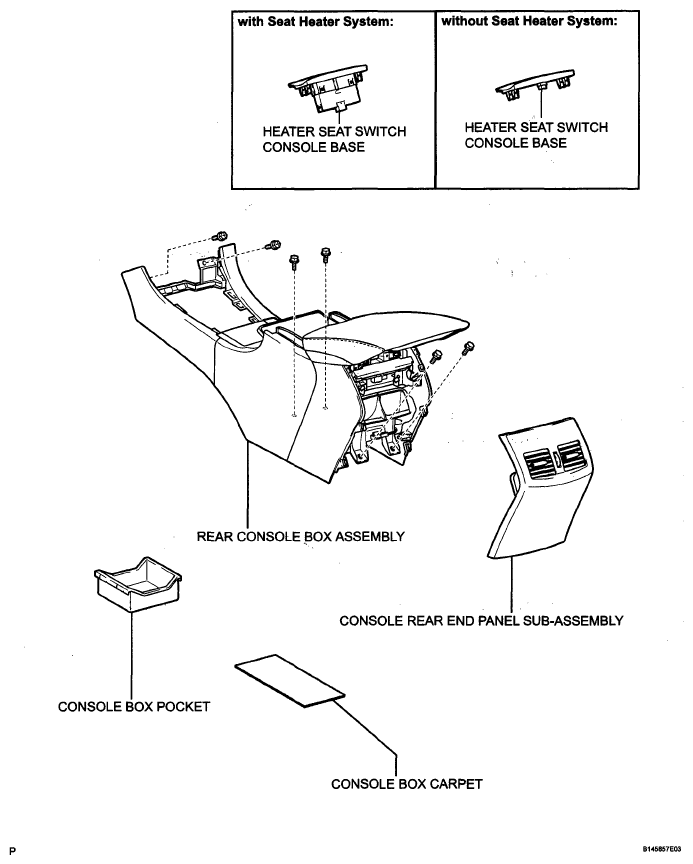

Fig 2: Identifying Rear Console Box Components (2 Of 3)
G05252487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

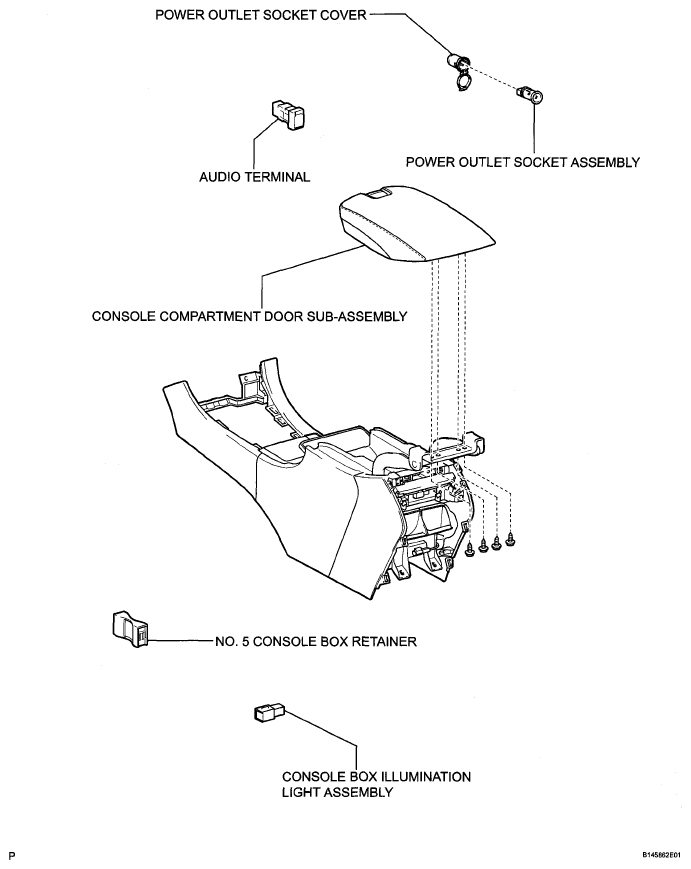

Fig 3: Identifying Rear Console Box Components (3 Of 3)
G05253866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
