Rear Console Box: Installation

INSTALL REAR CONSOLE BOX ASSEMBLY
1. Connect each connector.

  Fig 1: Locating Console Box Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 clips.

  Fig 2: Identifying Rear Console Box Assembly Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 screws.

  Fig 3: Locating Rear Console Box Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 2 bolts.

  Fig 4: Locating Rear Console Box Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the rear console box assembly with the 2 bolts.

  Fig 5: Locating Rear Console Box Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
1. Engage the 6 clips and install the console rear end panel sub-assembly.

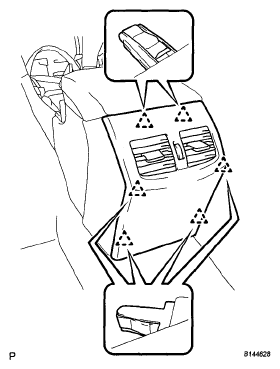

  Fig 6: Identifying Console Rear End Panel Sub-Assembly Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX CARPET
1. Install the console box carpet.

  Fig 7: Identifying Console Box Carpet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX POCKET
1. Install the console box pocket.
INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System) (See INSTALLATION )
INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System) (See INSTALLATION )
INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE (See INSTALLATION )

Fig 8: Identifying Console Box Pocket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (See INSTALLATION )
INSTALL INSTRUMENT PANEL FINISH PANEL END RH (See INSTALLATION )
INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See INSTALLATION )
