Rear Console Box: Reassembly

INSTALL AUDIO TERMINAL (See INSTALLATION )
INSTALL POWER OUTLET SOCKET COVER (See INSTALLATION )
INSTALL POWER OUTLET SOCKET ASSEMBLY (See INSTALLATION )
INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
1. Turn the console box illumination light assembly in the direction indicated by the arrow and install it.

  Fig 1: Turning Console Box Illumination Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Tighten the 10 screws and connect the connector.

  Fig 2: Locating Console Box Illumination Light Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
1. Install the console compartment door sub-assembly with the 4 screws.

  Fig 3: Locating Console Compartment Door Sub-Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Assemble the 2 upper console box insulators as shown in the illustration.
  CAUTION: Make sure the upper console box insulators are assembled as shown in the illustration. If they are not assembled properly, the console compartment door may not slide smoothly, or injury may result when the console compartment door slides.
3. Align the 2 claws to the guides and engage the console compartment door sub-assembly to the rail on the console box assembly as shown in the illustration.

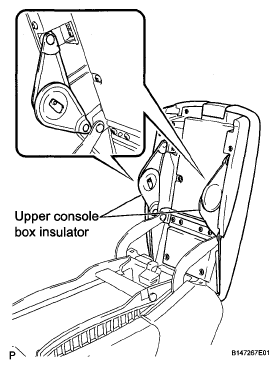

  Fig 4: Identifying Upper Console Box Insulators
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

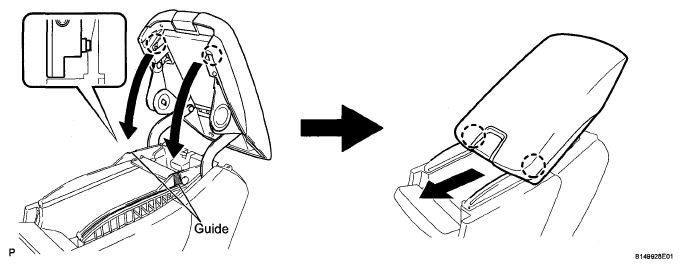

  Fig 5: Engaging Console Compartment Door Sub-Assembly To Rail On Console Box Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check the sliding operation of the console compartment door sub-assembly.
  1. Check if the console compartment door sub-assembly slides smoothly.

    Fig 6: Identifying Console Compartment Door Sub-Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 5 CONSOLE BOX RETAINER
1. Install the No. 5 console box retainer.
