Steering Pad Switch: Inspection

  1. INSPECT STEERING PAD SWITCH
    1. Remove the steering pad switch.

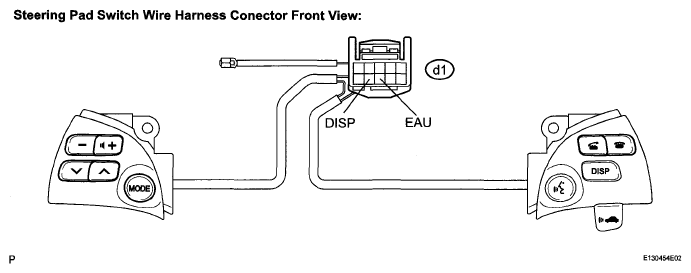

      Fig 1: Inspecting Steering Pad Switch
      G05252895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      d1-7 (DISP) - d1-8 (EAU) DISP switch is not pushed in 10 kΩ or higher
      d1-7 (DISP) - d1-8 (EAU) DISP switch is pushed in Below 1 Ω

      HINT:

      If the value is not as specified, replace the steering pad switch.
