Inspection Procedure

1. Delete the DTCs (See DTC CHECK / CLEAR  ).
2. Check for DTC B2289 (Key collection waiting time over) and B2785 (Communication malfunction between ECUs connected by LIN).

   Result

   RESULT REFERENCE



   Display (DTC output)	Proceed to
   "DTC B2289" only	A
   "DTC B2785" only	B
   No DTC	C

   HINT:

   • If DTC B2785 is output, perform troubleshooting for DTC B2785 first (See DTC B2785 COMMUNICATION MALFUNCTION BETWEEN ECUS CONNECTED BY LIN ).

B:  GO TO DTC B2785

C: CHECK INTERMITTENT PROBLEMS

A: Go to Next Step

1. Disconnect the E13 and DR ECU connectors.

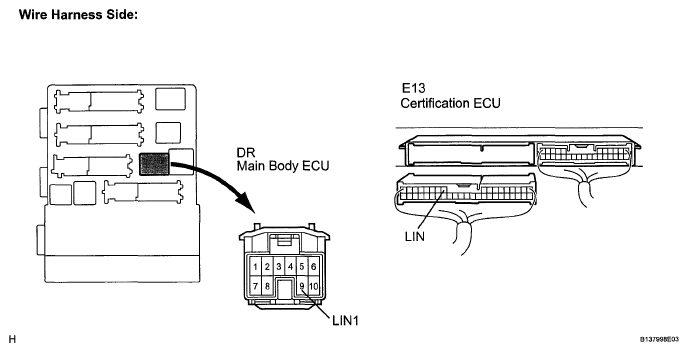

   Fig 1: Disconnecting E13 Certification ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection (Symbols)	Condition	Specified Condition
   DR-9 (LIN1) - E13-10 (LIN)	Always	Below 1 Ω
   DR-9 (LIN1) or E13-10 (LIN) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. After replacing the main body ECU with a normally functioning ECU, check that the engine starts.

   OK: Engine can start normally.

   HINT:

   If the engine does not start, refer to PROBLEM SYMPTOMS TABLE  of the smart access system with push-button start (door lock function) (matching for the inside of the cabin cannot be performed) (See PROBLEM SYMPTOMS TABLE ).

NG:  GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START (ENTRY)

OK: END (MAIN BODY ECU DEFECTIVE)
