Parts Location

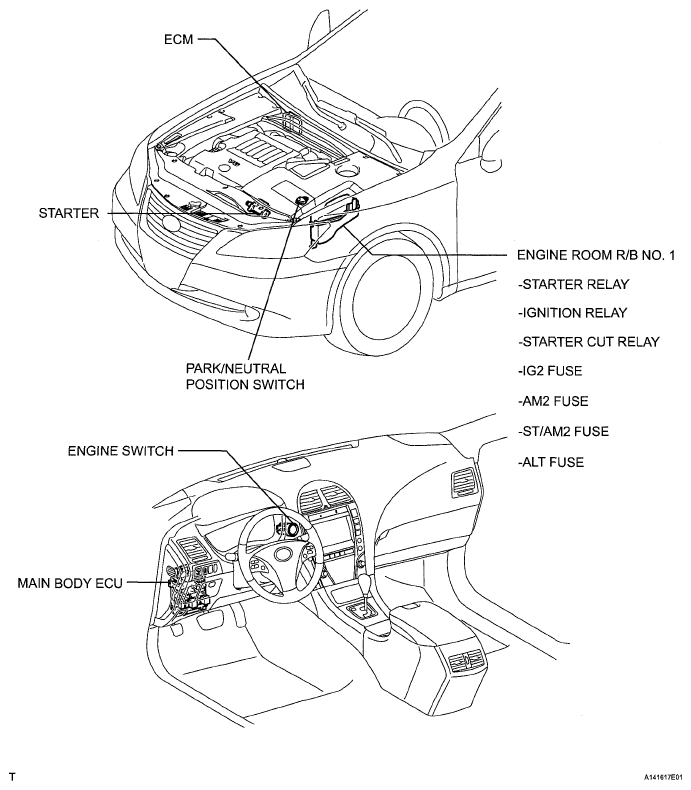

Fig 1: Identifying Starting System Components Location
G05248796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
