On-Vehicle Inspection

INSPECT FUEL CUT-OFF RPM

Increase the engine speed to at least 3,500 rpm.
Use a sound scope to check for injector operating sounds.

Check that when the throttle lever is released, injector operating sounds stop momentarily (at 2,500 rpm) and then resume (at 1,400 rpm).

Standard

SPECIFIED CONDITION CHART

Item	Specified Condition
Fuel cut off rpm	2,500 rpm
Fuel return rpm	1,400 rpm

CHECK AIR TIGHTNESS IN FUEL TANK AND FILLER PIPE
1. Disconnect the vent line hose from the fuel tank.
2. Connect the pressure gauge to the fuel tank.
3. Apply pressure to the fuel tank to create an internal pressure of 4 kPa (41 gf/cm² , 0.58 psi).
4. Check that the internal pressure of the fuel tank is maintained for 1 minute.
5. Check the connected portions of each hose and pipe.
6. Check the installed parts on the fuel tank.
  If any malfunctions, damage or other problems are found, replace the fuel tank and filler pipe.
7. Reconnect the vent line hose to the fuel tank.

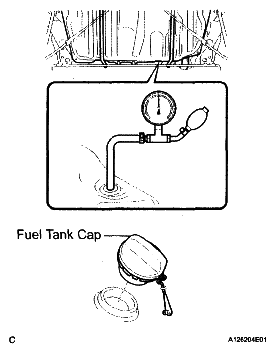

  Fig 1: Connecting Pressure Gauge To Fuel Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FUEL CUT OFF VALVE AND FUEL CHECK VALVE
1. Disconnect the vent line hose from the fuel tank.
2. Connect the pressure gauge to the fuel tank.
3. Fill the fuel tank with fuel.
4. Apply pressure of 4 kPa (41 gf/cm² , 0.58 psi) to the vent port of the fuel tank.
  HINT:

  Check the amount of fuel in the fuel tank. When the fuel tank is full, the float valve of the fuel check valve is closed and no air can pass through.

  Fig 2: Connecting Pressure Gauge To Fuel Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the fuel tank cap, and check that the pressure drops.
  If the pressure does not drop, replace the fuel tank assembly.
6. Reconnect the vent line hose to the fuel tank.
CHECK AIR INLET LINE
1. Disconnect the air inlet line hose from the charcoal canister.
2. Check that air can flow freely into the air inlet line. If air cannot flow freely into the air inlet line, repair or replace it.
3. Reconnect the air inlet line hose to the charcoal canister.

  Fig 3: Checking Air Can Flow Freely Into Air Inlet Line
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
VISUALLY INSPECT HOSES, CONNECTIONS AND GASKETS
1. Check for cracks, leaks or damage.
  HINT:

  Removal or problems with the engine oil dipstick, oil filler cap, PCV hose and other components may cause the engine to run improperly. Disconnection, looseness or cracks in the parts of the air induction system between the throttle body and cylinder head will allow air suction and cause the engine to run improperly.

  If necessary, replace any damaged parts.

  Fig 4: Locating Hoses, Connections And Gaskets For Cracks, Leaks Or Damage
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
