System Diagram

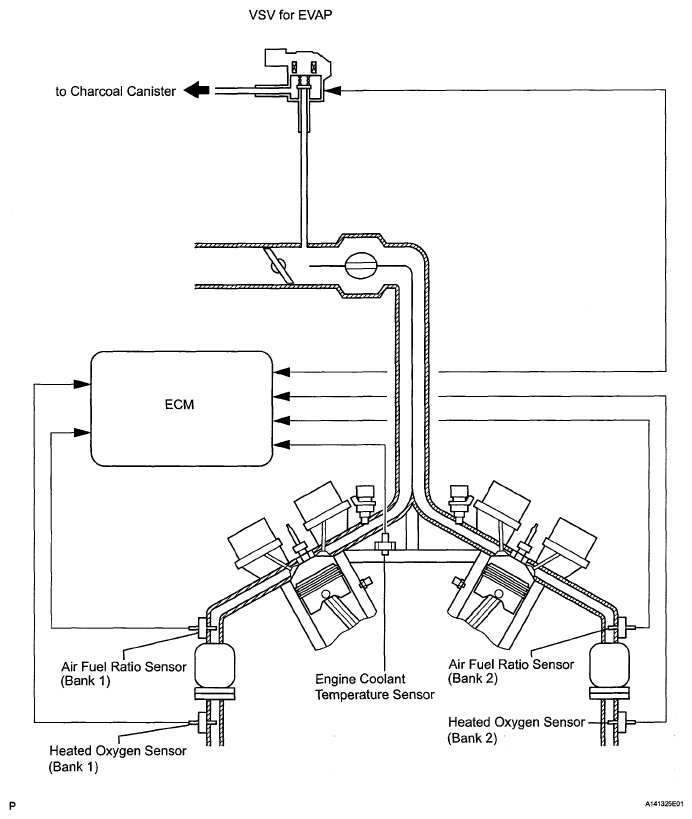

Fig 1: Emission Control System Diagram (1 Of 4)
G05248580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

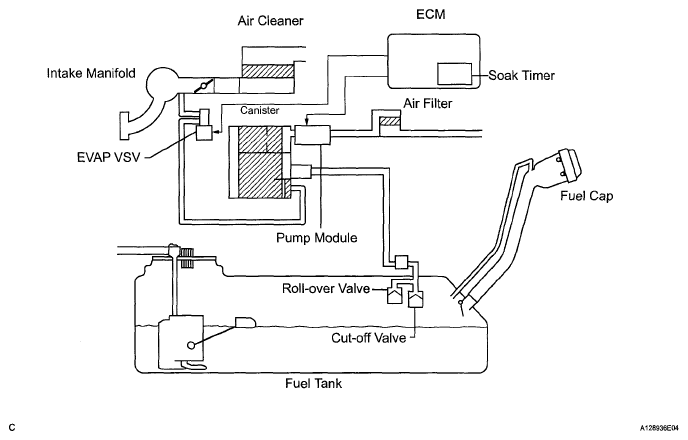

Fig 2: Emission Control System Diagram (2 Of 4)
G05248581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

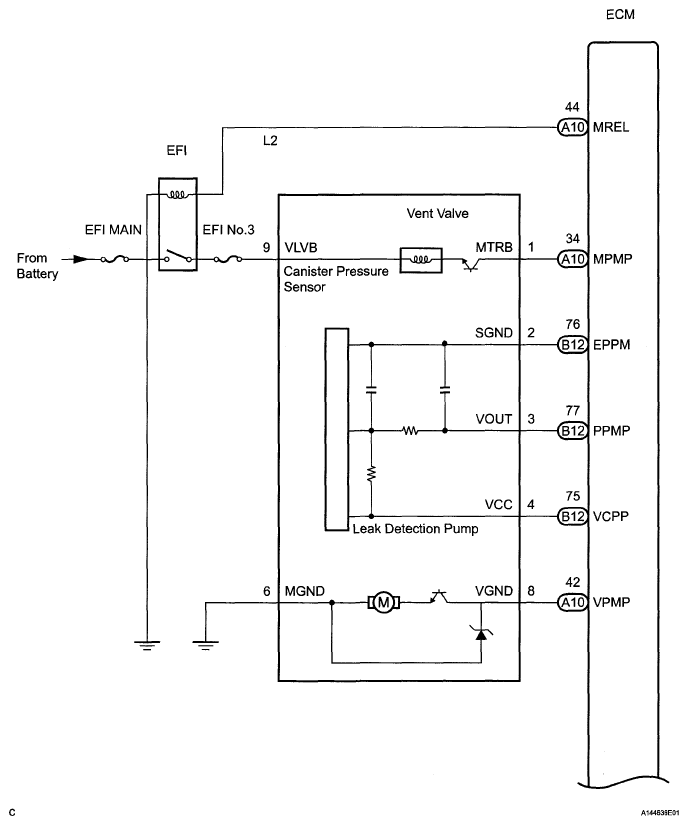

Fig 3: Emission Control System Diagram (3 Of 4)
G05248582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

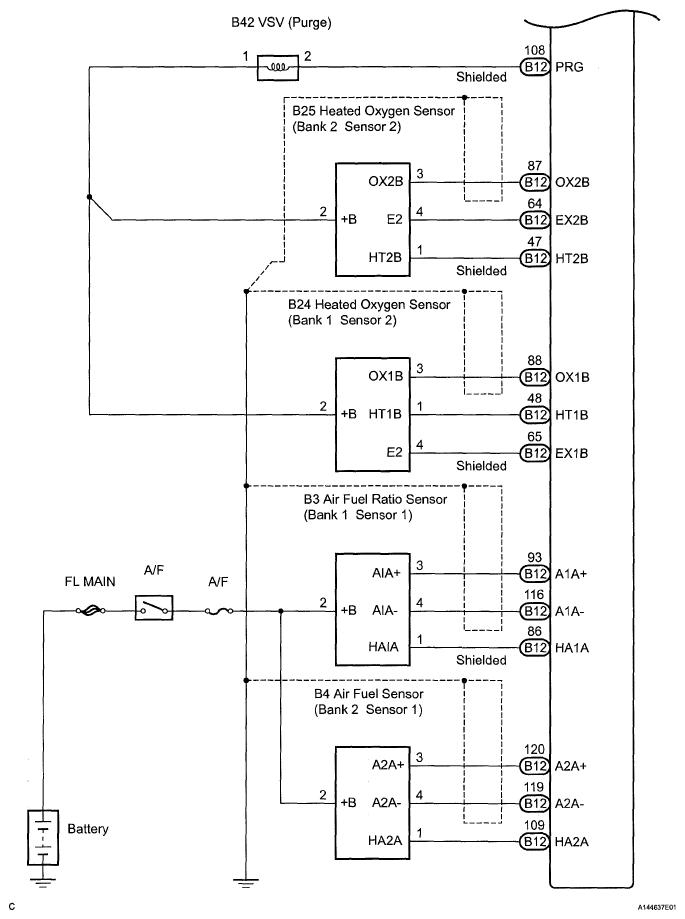

Fig 4: Emission Control System Diagram (4 Of 4)
G05248583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
