Exhaust Pipe: Components

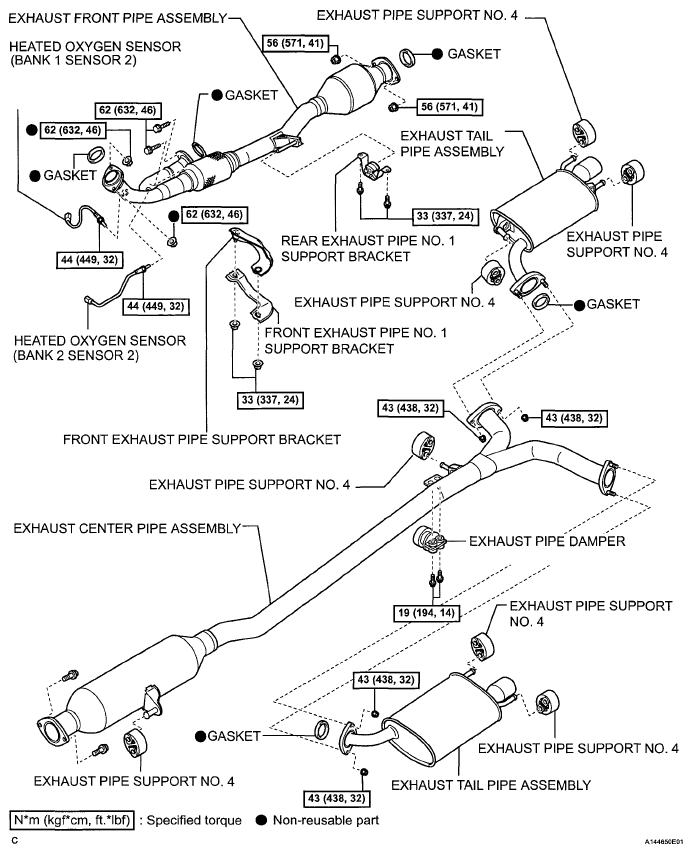

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications
G05248642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
