Oil Pump: Removal

  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    (See REMOVAL )

  2. REMOVE VANE PUMP ASSEMBLY  (See REMOVAL )
  3. INSTALL ENGINE HANGER  (See REMOVAL )
  4. REMOVE FRONT FRAME ASSEMBLY  (See REMOVAL )
  5. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH  (See REMOVAL )
  6. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH  (See DISASSEMBLY )
  7. REMOVE ENGINE WIRE
  8. REMOVE STARTER ASSEMBLY  (See REMOVAL )
  9. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

    (See REMOVAL )

  10. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY  (See ENGINE REAR OIL SEAL )
  11. SECURE ENGINE  (See REMOVAL )
  12. REMOVE INTAKE AIR SURGE TANK ASSEMBLY  (See REMOVAL )
  13. REMOVE IGNITION COIL ASSEMBLY  (See REMOVAL )
  14. REMOVE NO. 2 ENGINE MOUNTING STAY RH  (See REMOVAL )
  15. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH  (See REMOVAL )
  16. REMOVE OIL LEVEL GAUGE GUIDE SUB-ASSEMBLY  (See REMOVAL )
  17. REMOVE NO. 2 MANIFOLD STAY  (See REMOVAL )
  18. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR  (See REMOVAL )
  19. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH  (See REMOVAL )
  20. REMOVE ENGINE MOUNTING BRACKET RH  (See REMOVAL )
  21. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY  (See REMOVAL )
  22. REMOVE NO. 2 TIMING GEAR COVER  (See REMOVAL )
  23. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY  (See REMOVAL )
  24. REMOVE WATER PUMP PULLEY  (See REMOVAL )
  25. REMOVE RADIO SETTING CONDENSER  (See REMOVAL )
  26. REMOVE NO. 1 VACUUM SWITCHING VALVE ASSEMBLY  (See INSPECTION )
  27. REMOVE NO. 1 OIL PIPE  (See DISASSEMBLY )
  28. REMOVE OIL PIPE  (See DISASSEMBLY )
  29. REMOVE CRANKSHAFT PULLEY  (See DISASSEMBLY )
  30. REMOVE NO. 1 ENGINE MOUNTING BRACKET FRONT LH  (See DISASSEMBLY )
  31. REMOVE WATER INLET HOUSING  (See DISASSEMBLY )
  32. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY RH  (See DISASSEMBLY )
  33. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY LH  (See DISASSEMBLY )
  34. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY  (See DISASSEMBLY )
  35. REMOVE OIL STRAINER SUB-ASSEMBLY  (See DISASSEMBLY )
  36. REMOVE OIL PAN SUB-ASSEMBLY  (See DISASSEMBLY )
  37. REMOVE TIMING CHAIN COVER SUB-ASSEMBLY
    1. Remove the 23 bolts and 2 nuts as shown in the illustration.
      Fig 1: Identifying Timing Chain Cover Bolts
      G04975451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the timing chain cover by prying between the timing chain cover and cylinder head or cylinder block with a screwdriver.
      NOTE: Be careful not to damage the contact surfaces of the cylinder head, cylinder block and chain cover.

      HINT:

      Tape the screwdriver tip before use.

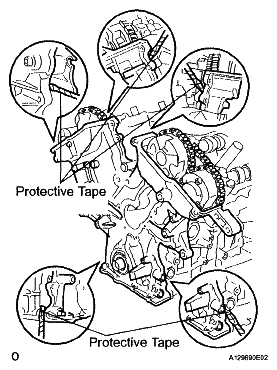

      Fig 2: Removing Timing Chain Cover
      G04974600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket.
      Fig 3: Identifying Gasket
      G05248758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE TIMING CHAIN CASE OIL SEAL
    1. Using a screwdriver, pry out the oil seal.

      HINT:

      Tape the screwdriver tip before use.

      Fig 4: Prying Out Oil Seal
      G05248759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
