Fuel Pressure Pulsation Damper: Components

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 3)
G05248485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

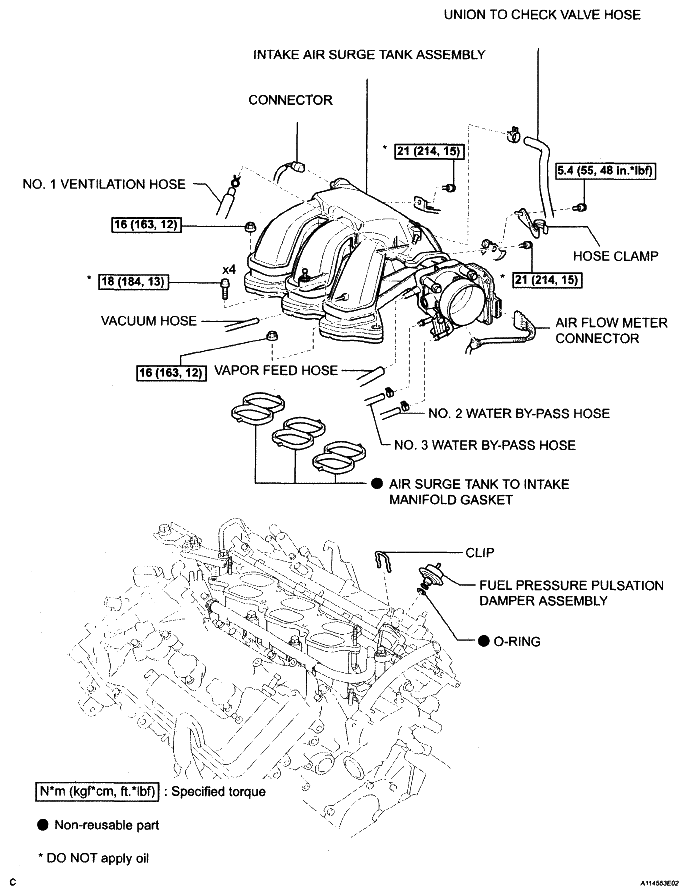

Fig 2: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (2 Of 2)
G04975029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
