DTC P0500: Vehicle Speed Sensor "A": Description

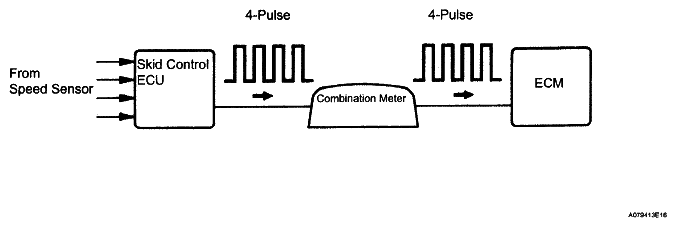

The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU. The skid control ECU converts these wheel speed signals into a 4-pulse signal and outputs it to the ECM via the combination meter. The ECM determines the vehicle speed based on the frequency of these pulse signals.
DTC DESCRIPTION TABLE
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| P0500 | Vehicle speed signal from vehicle speed sensor is cut for 0.14 sec. or more while cruise control is in operation |
|
