Rear Seat Inner Belt Assembly: Components

Fig 1: Identifying Rear Seat Inner Belt Assembly Replacement Components With Torque Specification (1 Of 3)
G05251828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Rear Seat Inner Belt Assembly Replacement Components With Torque Specification (2 Of 3)
G05252010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

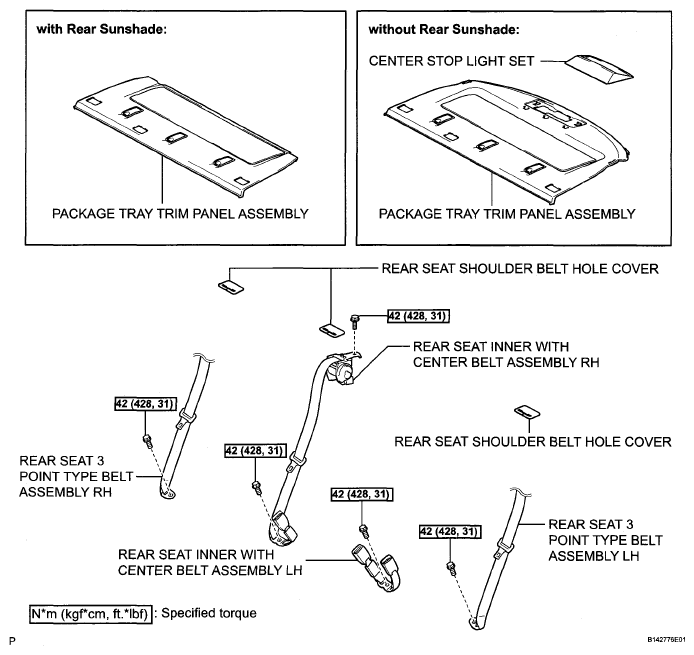

Fig 3: Identifying Rear Seat Inner Belt Assembly Replacement Components With Torque Specification (3 Of 3)
G05252011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
