Terminals Of Ecu

  1. COMBINATION METER ASSEMBLY

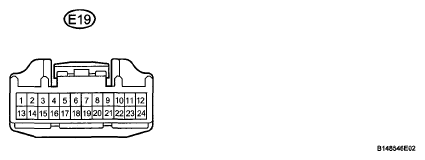

    Fig 1: Identifying Combination Meter Assembly Connector Terminals
    G05251952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard resistance

    ECU TERMINAL REFERENCE CHART

    Terminal No. (Symbols) Terminal Description Condition Specified Condition
    E19-9 (P/SB) - Body ground Passenger seat belt signal The passenger seat is occupied, seat belt is fastened → unfastened Below 1 Ω → 10 kΩ or higher
  2. MULTI-MEDIA MODULE DISPLAY (WITH NAVIGATION SYSTEM)

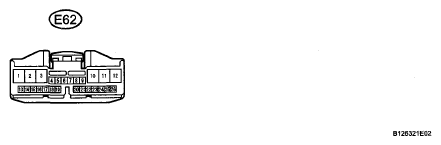

    Fig 2: Identifying Multi-Media Module Display (With Navigation System) Connector Terminals
    G05251953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard resistance

    ECU TERMINAL REFERENCE CHART

    Terminal No. (Symbols) Terminal Description Condition Specified Condition
    E62-21 (PBEW) - Body ground Passenger seat belt signal The passenger seat is occupied, seat belt is fastened → unfastened Below 1 Ω → 10 kΩ or higher
  3. A/C CONTROL ASSEMBLY (WITHOUT NAVIGATION SYSTEM)

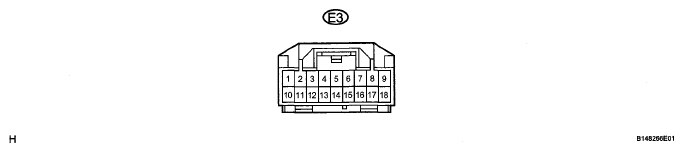

    Fig 3: Identifying A/C Control Assembly (Without Navigation System) Connector Terminals
    G05251954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard resistance

    ECU TERMINAL REFERENCE CHART

    Terminal No. (Symbols) Terminal Description Condition Specified Condition
    E3-13 (PBEW) - Body ground Passenger seat belt signal The passenger seat is occupied, seat belt is fastened → unfastened Below 1 Ω → 10 kΩ or higher
