Power Steering Link: Components

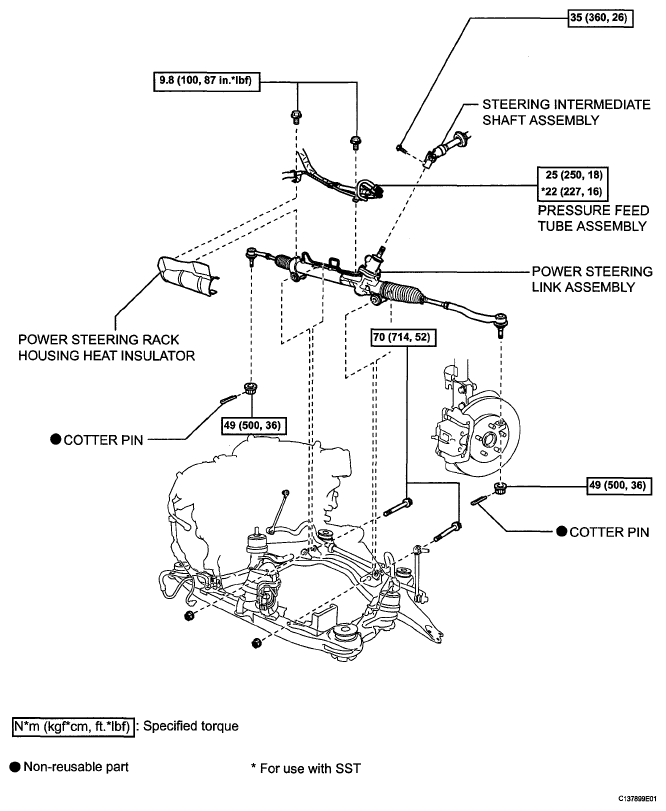

Fig 1: Power Steering Link Replacement Components With Torque Specifications (1 Of 4)
G05250924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

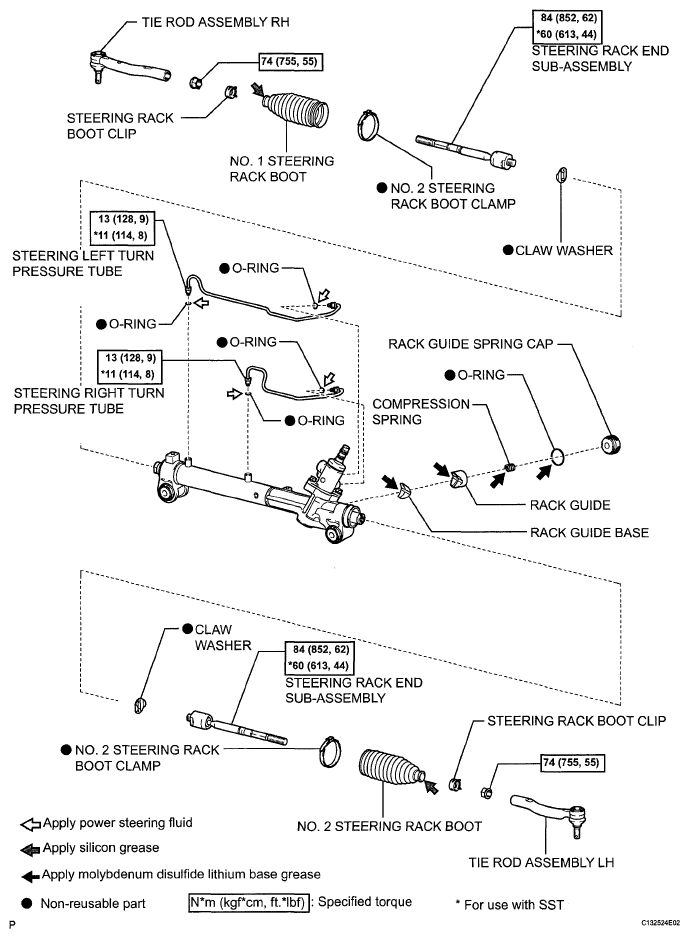

Fig 2: Power Steering Link Replacement Components With Torque Specifications (2 Of 4)
G05250925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

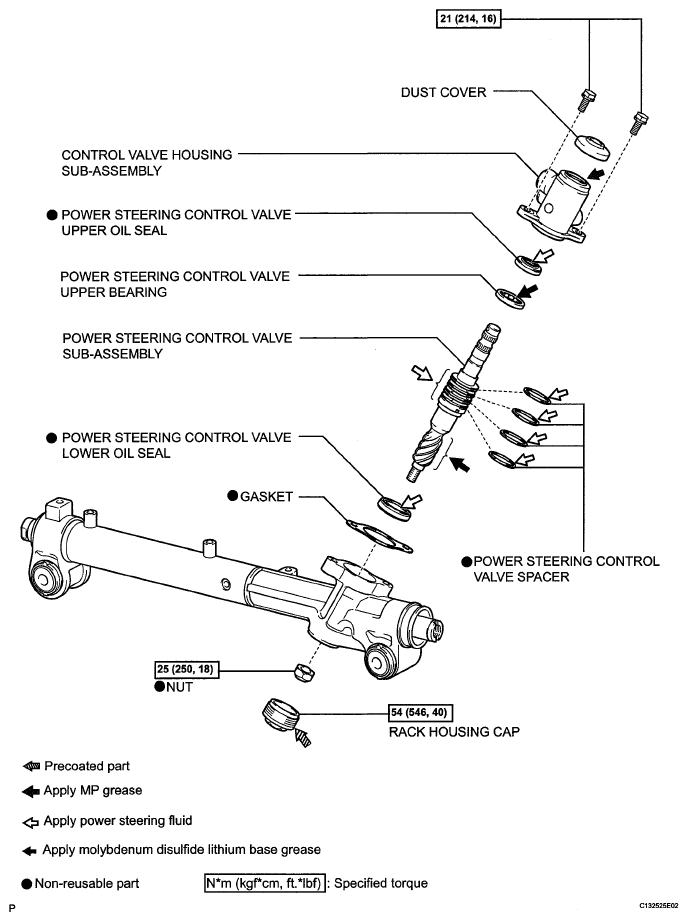

Fig 3: Power Steering Link Replacement Components With Torque Specifications (3 Of 4)
G05250926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

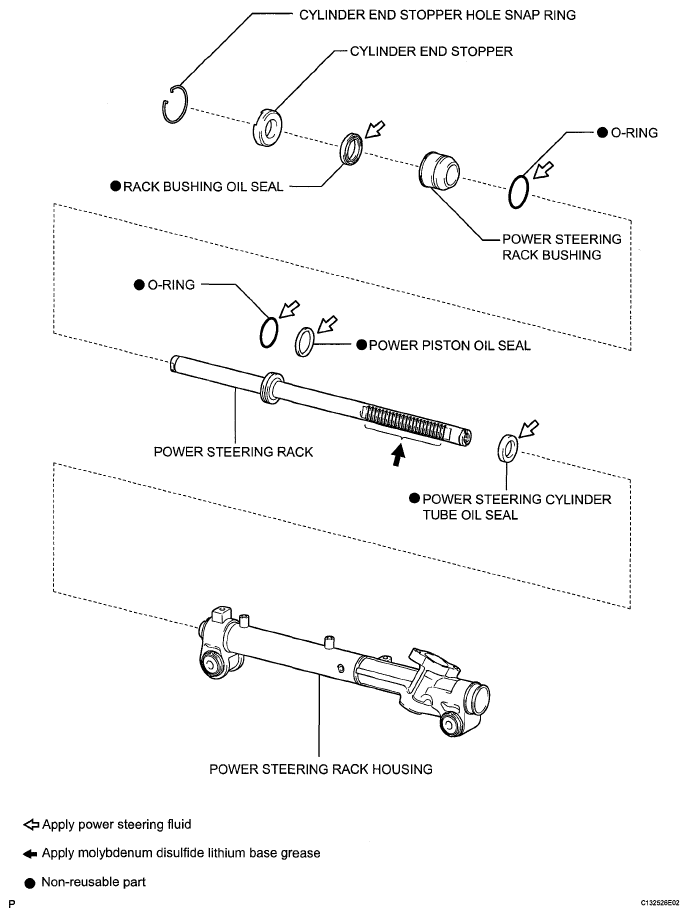

Fig 4: Identifying Power Steering Link Components (4 Of 4)
G05250927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
