Torque Converter Clutch And Drive Plate: Components

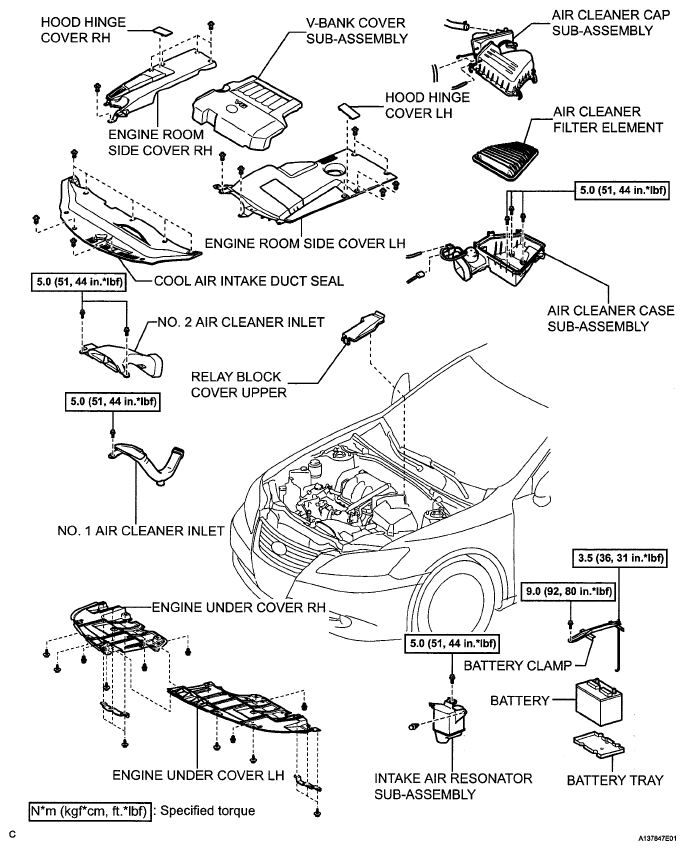

Fig 1: Identifying Torque Converter Clutch And Drive Plate Replacement Components With Torque Specifications (1 Of 6)
G05248040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

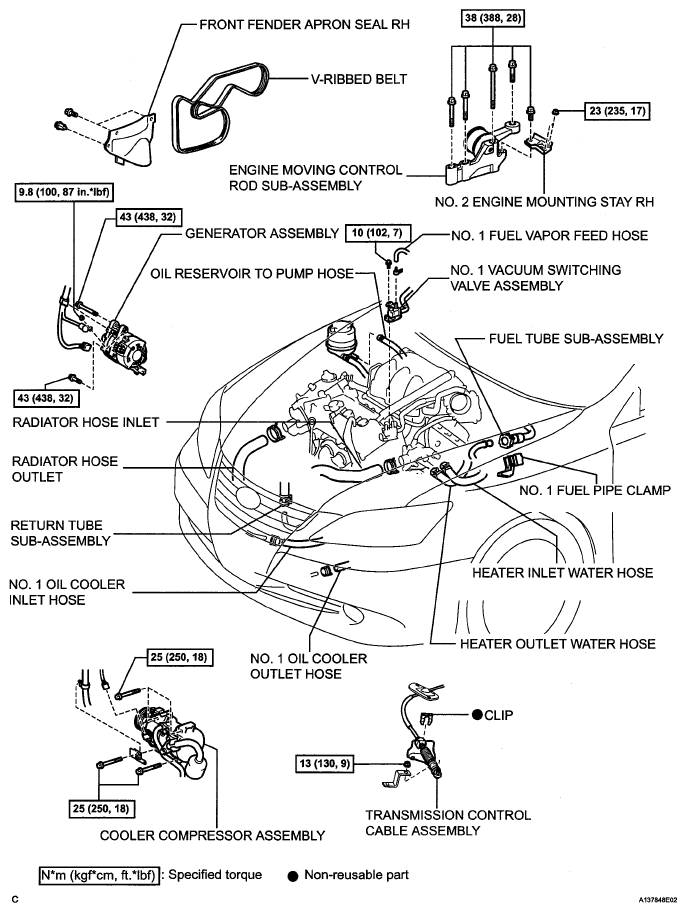

Fig 2: Identifying Torque Converter Clutch And Drive Plate Replacement Components With Torque Specifications (2 Of 6)
G05249615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

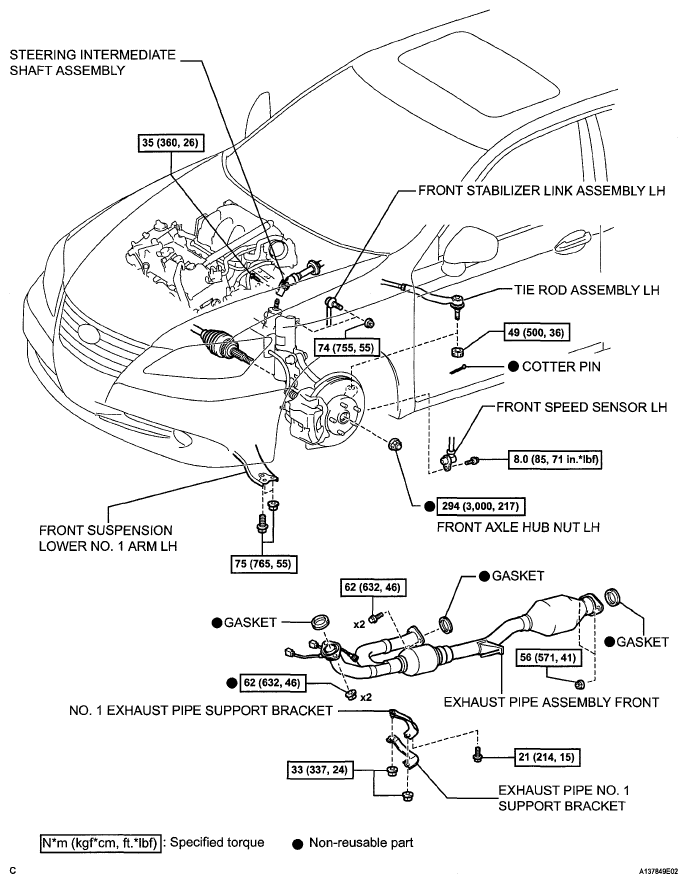

Fig 3: Identifying Torque Converter Clutch And Drive Plate Replacement Components With Torque Specifications (3 Of 6)
G05249616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

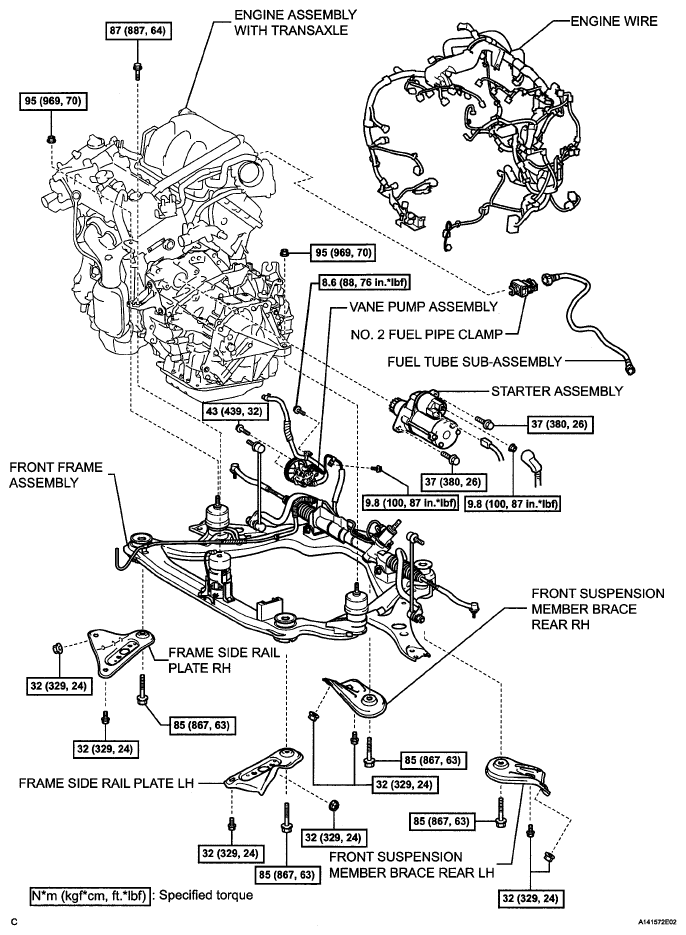

Fig 4: Identifying Torque Converter Clutch And Drive Plate Replacement Components With Torque Specifications (4 Of 6)
G05249617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

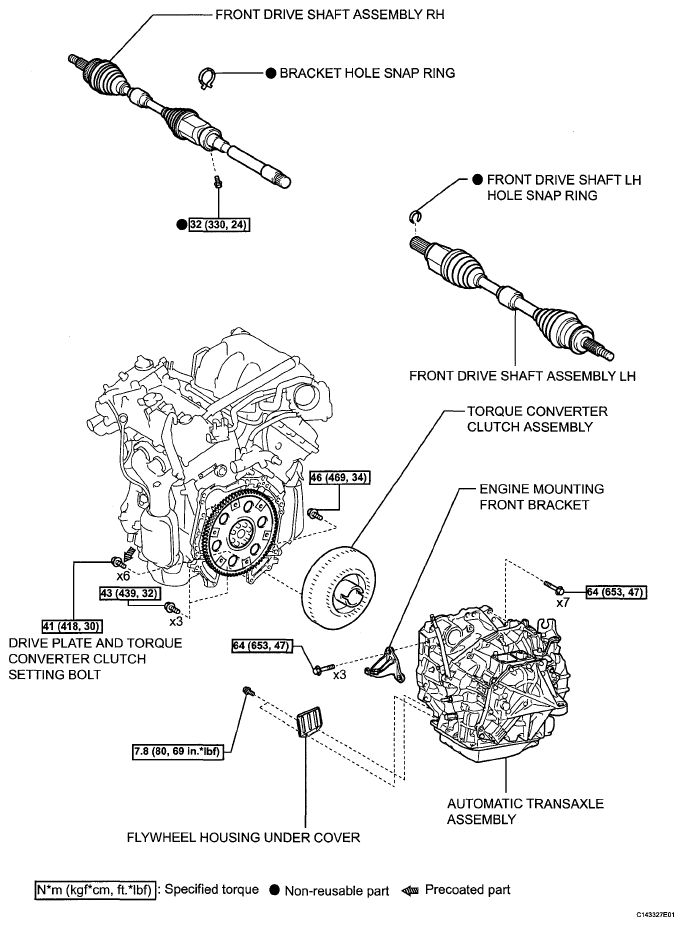

Fig 5: Identifying Torque Converter Clutch And Drive Plate Replacement Components With Torque Specifications (5 Of 6)
G05249618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

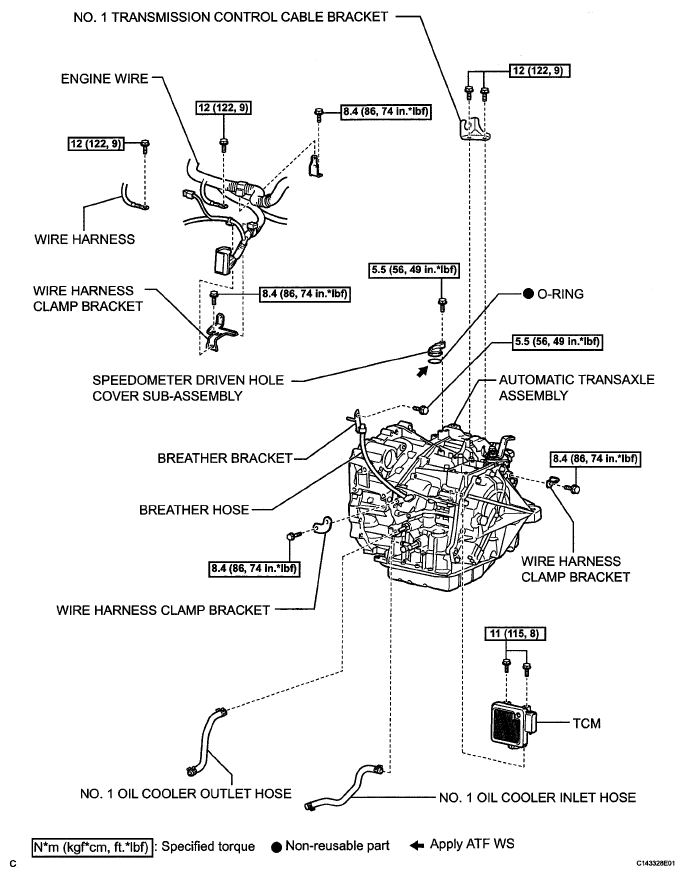

Fig 6: Identifying Torque Converter Clutch And Drive Plate Replacement Components With Torque Specifications (6 Of 6)
G05249619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
