Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

INSPECTION

1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

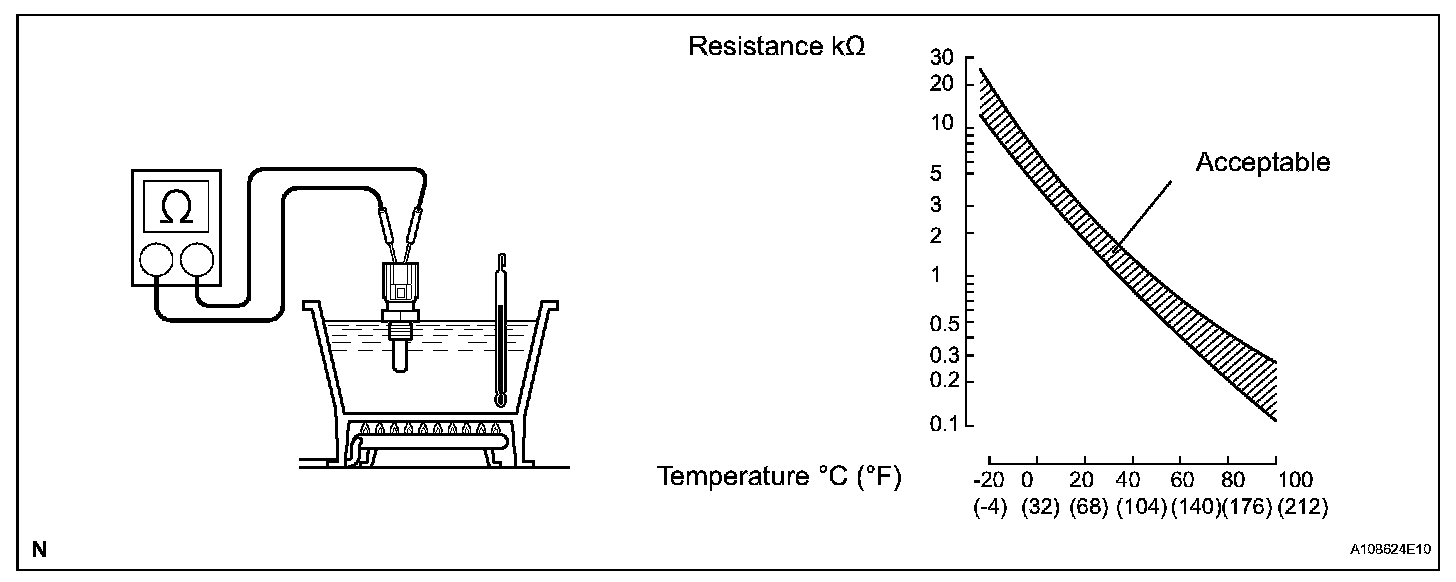

a. Partially soak the sensor in water and warm up the water.

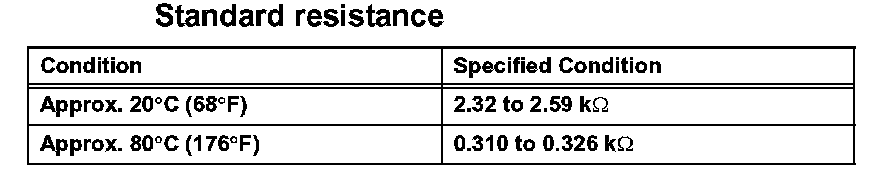

b. Measure the resistance between the terminals.

NOTE: When checking the sensor in water, keep the terminals dry. After the check, wipe the sensor dry.

If the result is not as specified, replace the sensor.
