System Specifications

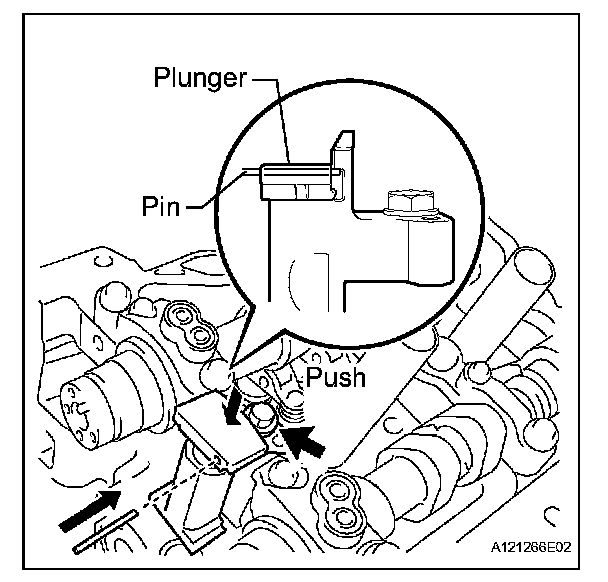

NO. 2 CHAIN TENSIONER





Install the chain tensioner with the bolt.
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)

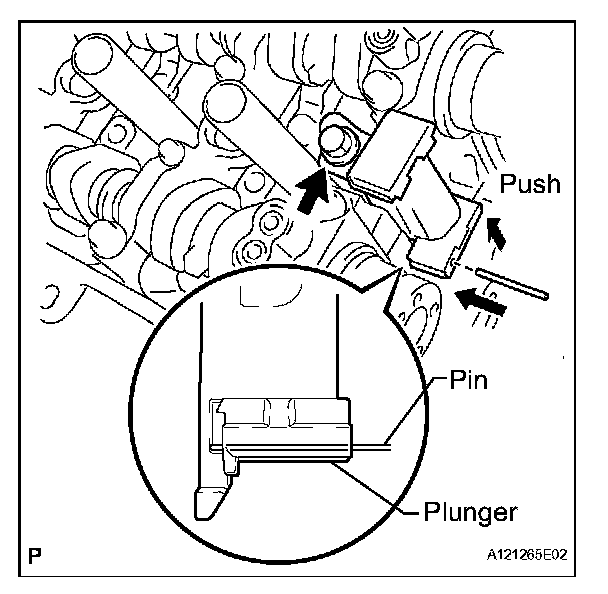

NO. 3 CHAIN TENSIONER





Install the chain tensioner with the bolt.
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)

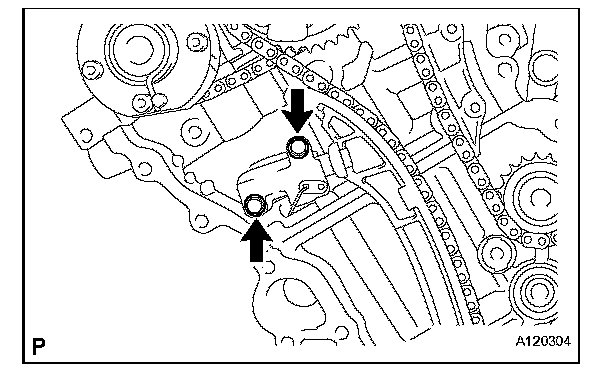

NO. 1 CHAIN TENSIONER





Install the chain tensioner with the 2 bolts.
Torque 10 N*m (102 kgf*cm, 7 ft.*lbf)


CRANKSHAFT PULLEY
Torque 250 N*m (2549 kgf*cm, 184 ft.*lbf)
