Automatic Light Control: Notes

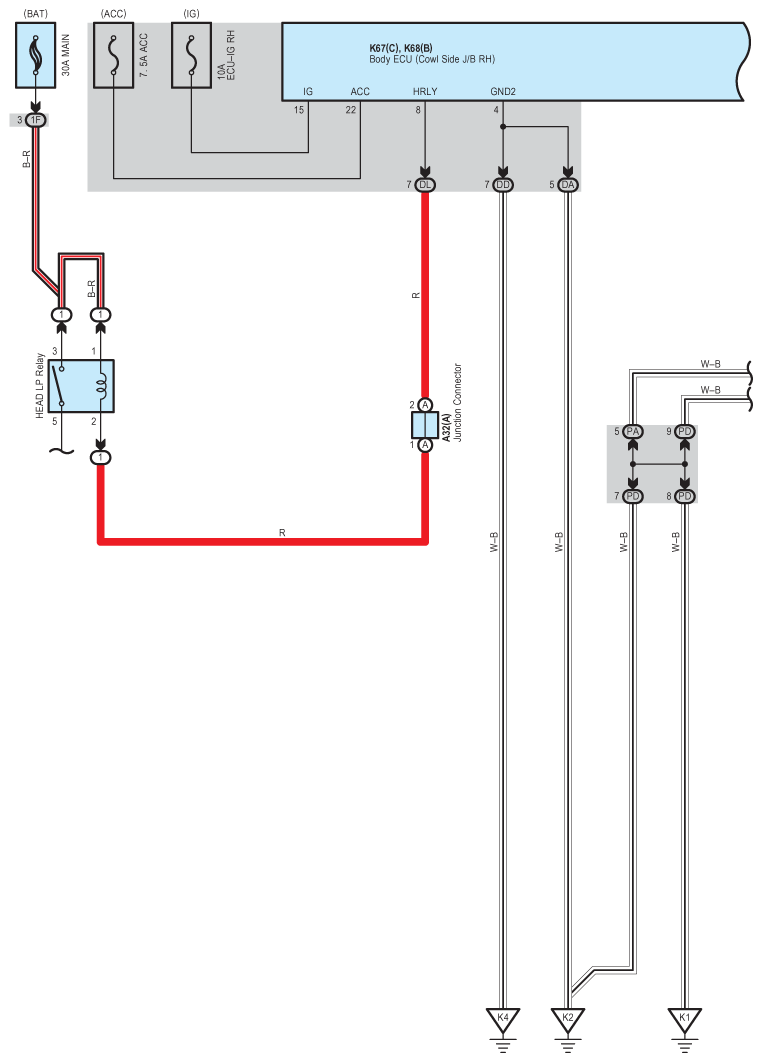

Fig 1: Automatic Light Control System Wiring Diagram (1 Of 3)
G08915679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

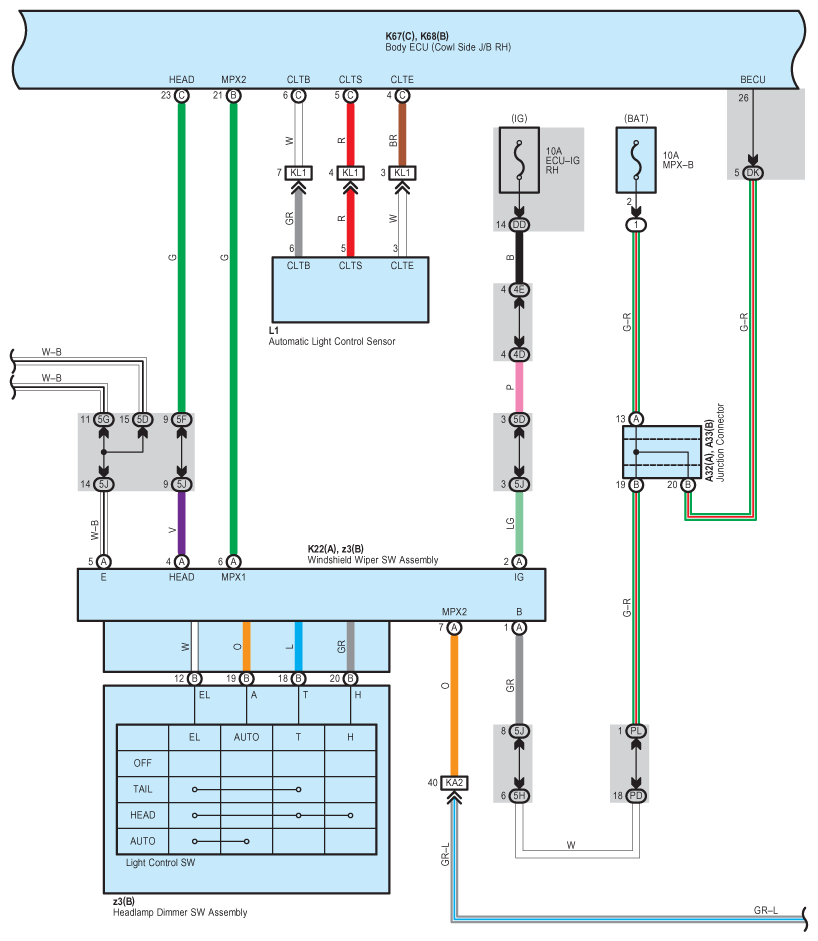

Fig 2: Automatic Light Control System Wiring Diagram (2 Of 3)
G08915680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

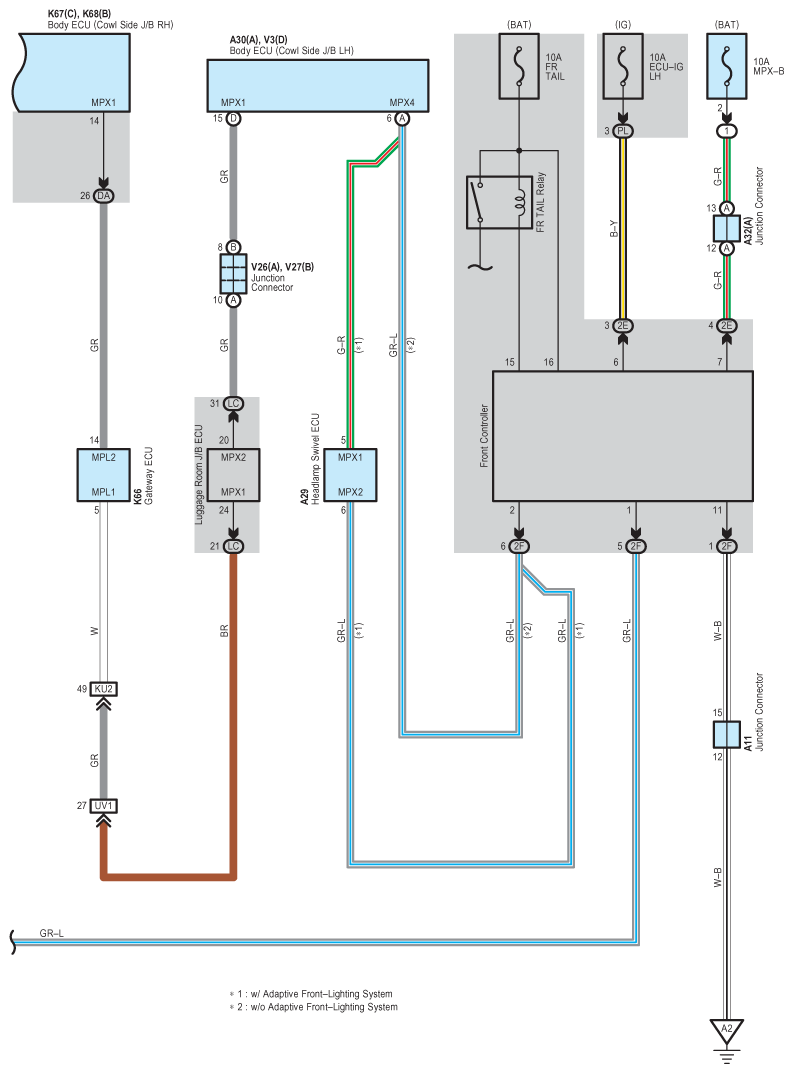

Fig 3: Automatic Light Control System Wiring Diagram (3 Of 3)
G08915681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
