Power Source: Notes

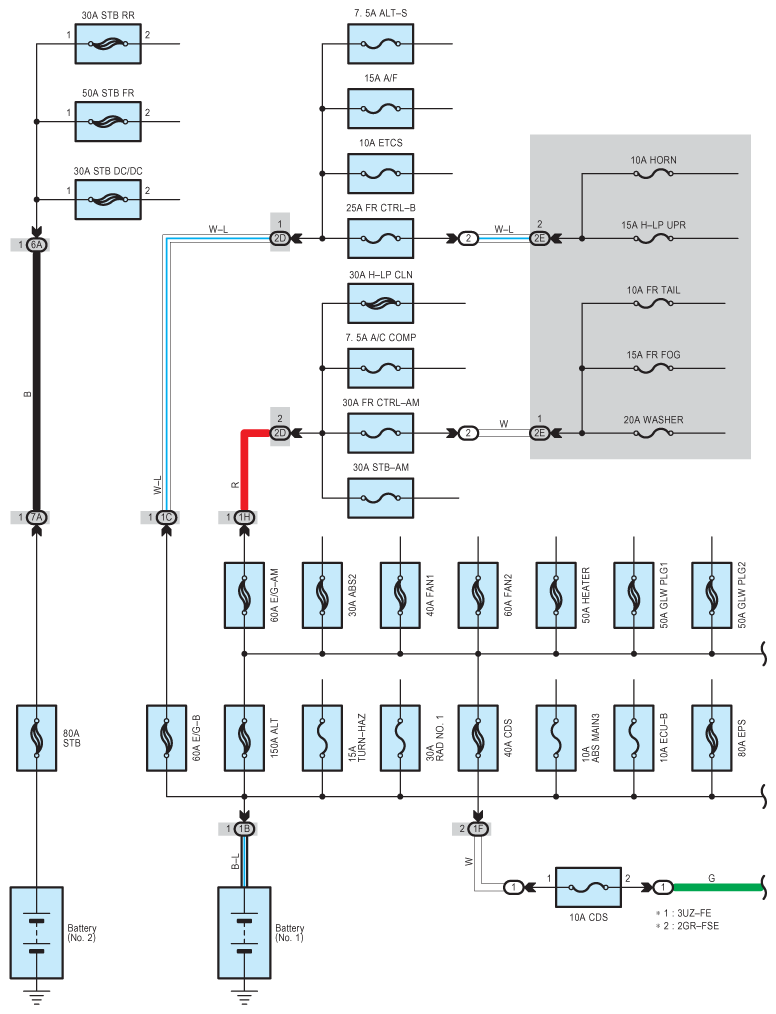

Fig 1: Power Source System Wiring Diagram (1 Of 6)
G08915569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

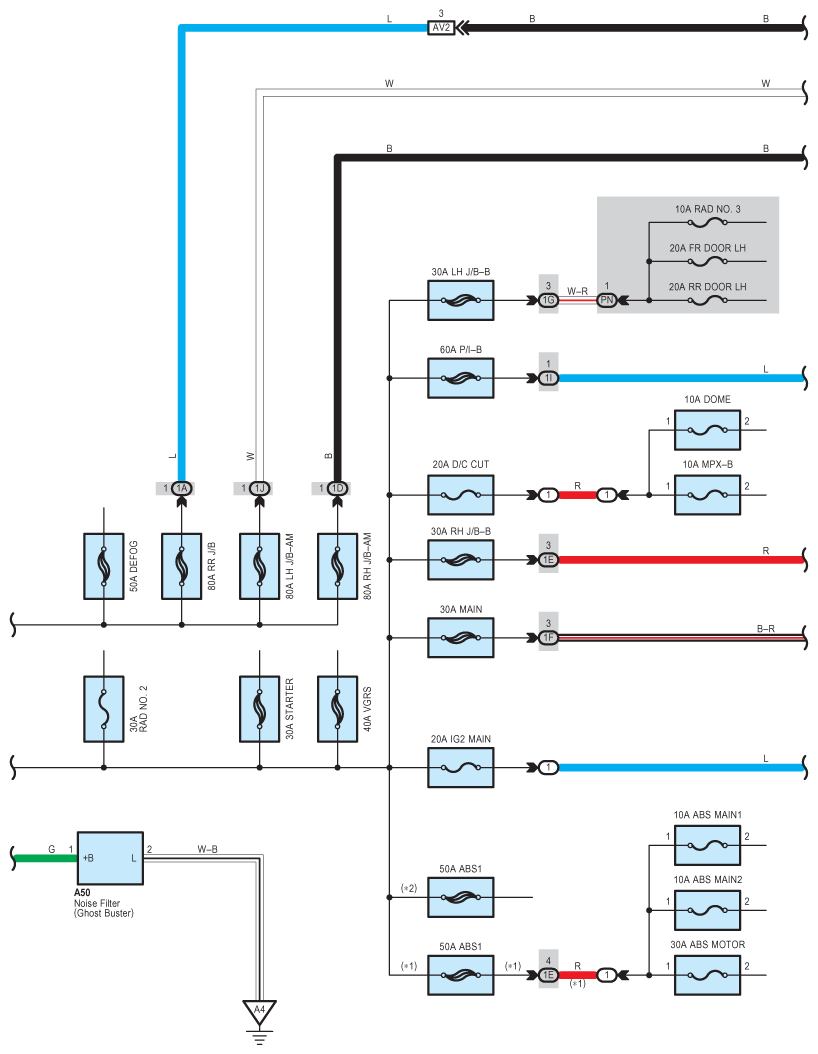

Fig 2: Power Source System Wiring Diagram (2 Of 6)
G08915570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

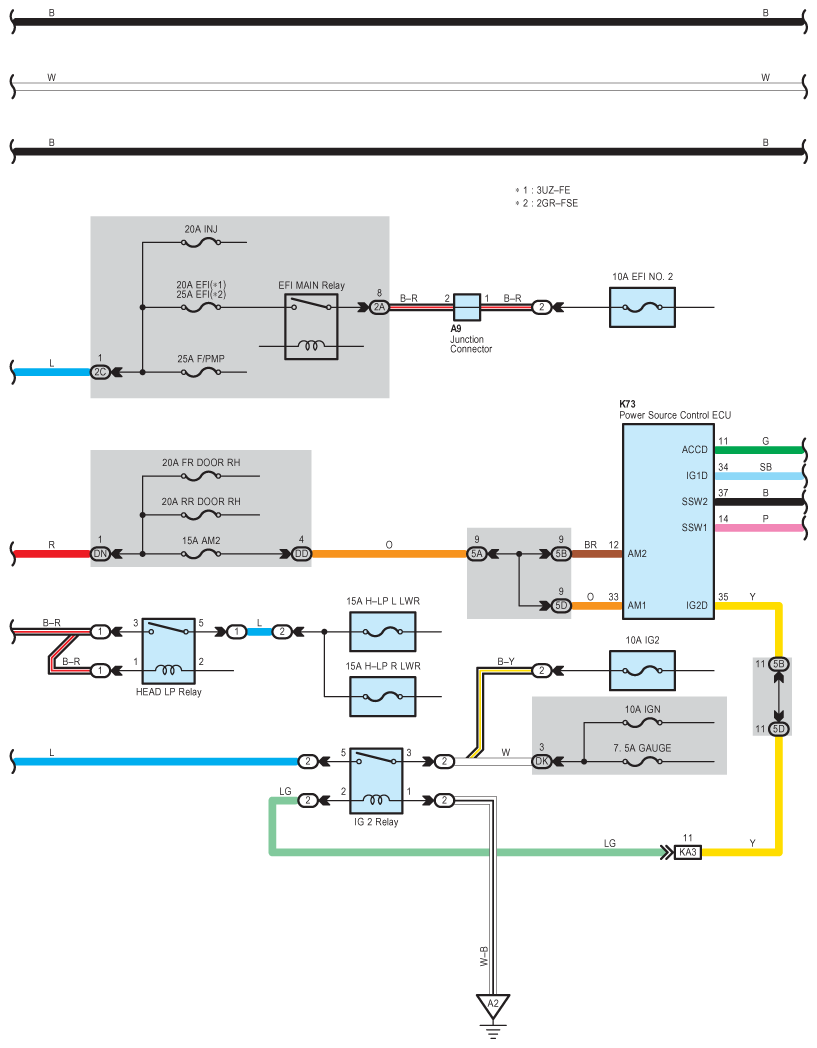

Fig 3: Power Source System Wiring Diagram (3 Of 6)
G08915571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

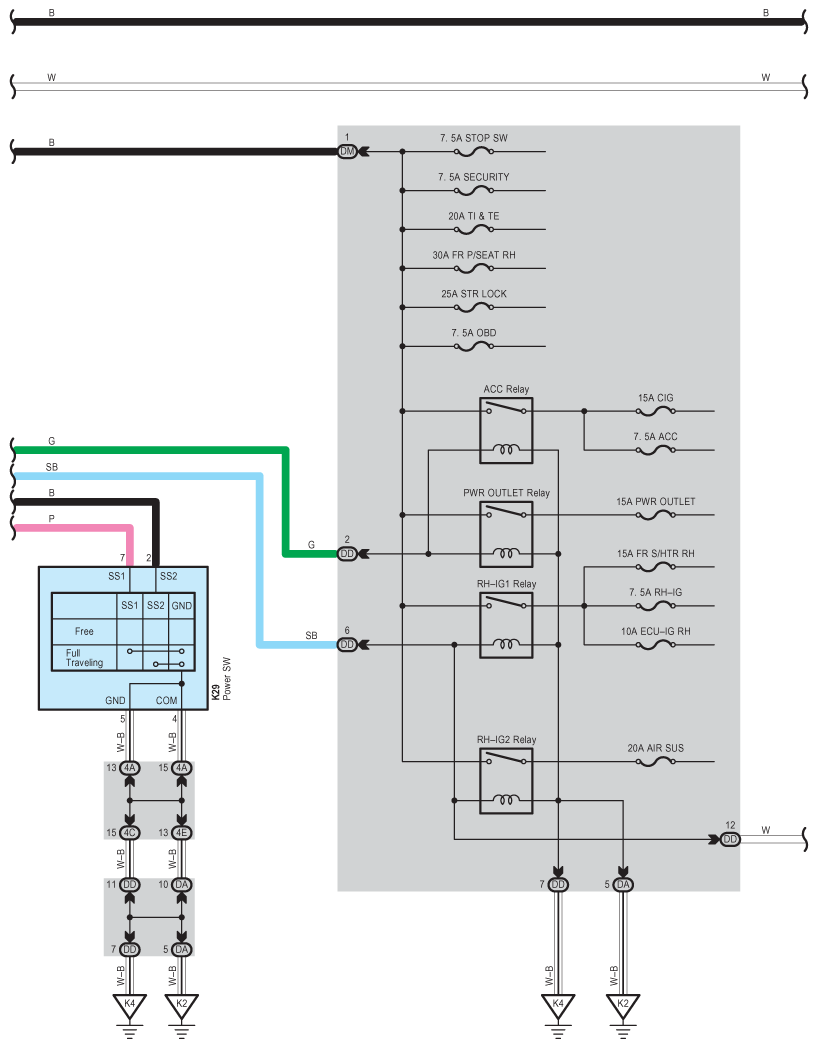

Fig 4: Power Source System Wiring Diagram (4 Of 6)
G08915572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

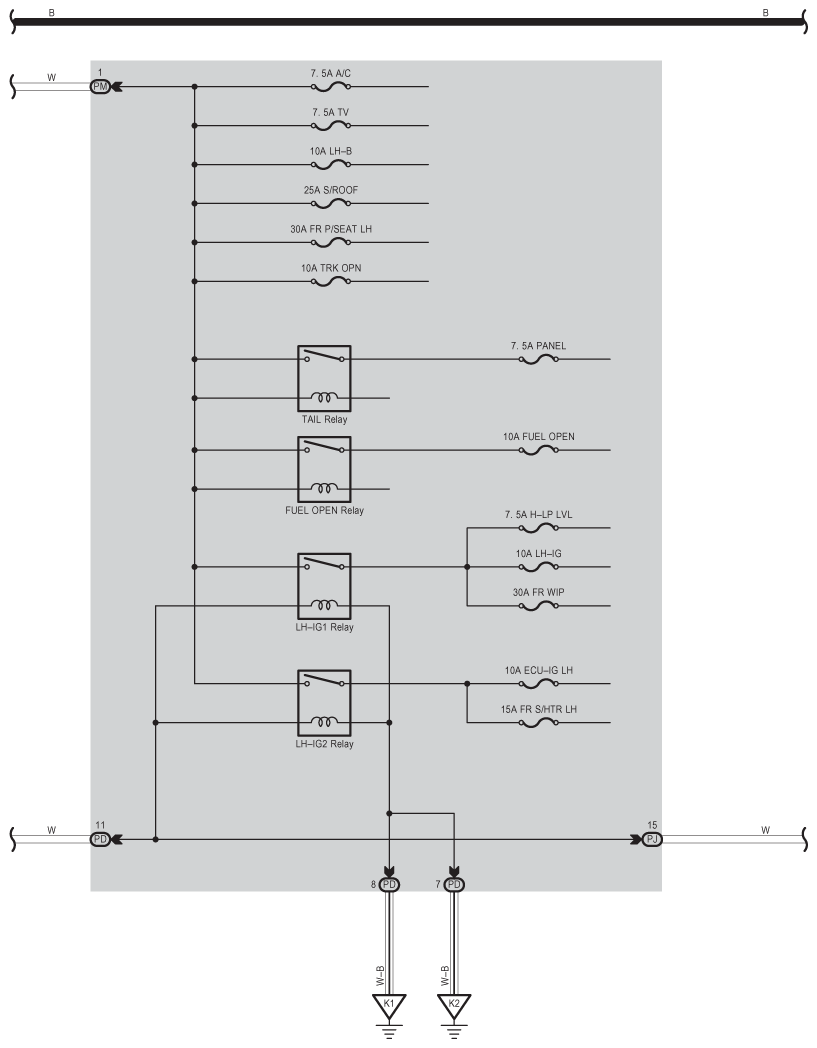

Fig 5: Power Source System Wiring Diagram (5 Of 6)
G08915573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

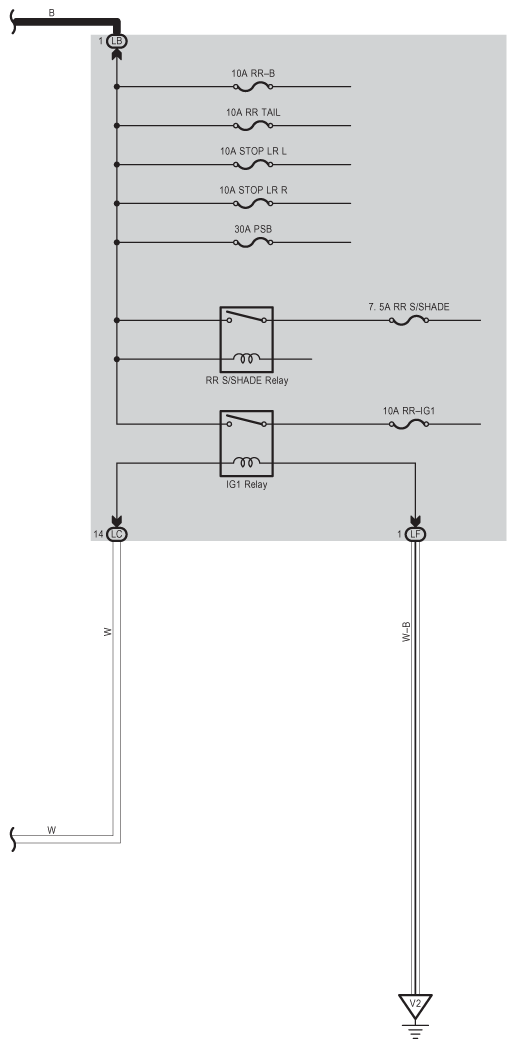

Fig 6: Power Source System Wiring Diagram (6 Of 6)
G08915574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
