Back Window Glass: Installation

  1. INSTALL NO. 2 WINDSHIELD GLASS STOPPER
    1. Apply Primer G to the glass where the spacers will be installed.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    2. Install 2 new stoppers onto the glass as shown in the illustration.

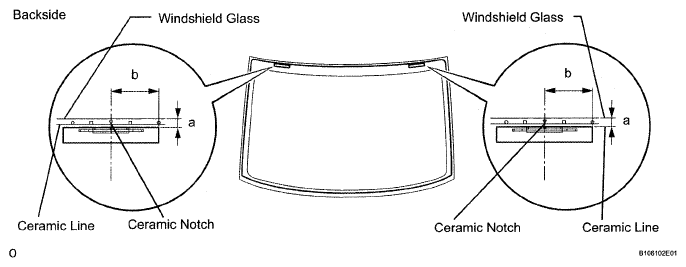

      Fig 1: Identifying Stoppers Onto Glass
      G05300235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Specification

      AREA MEASUREMENT CHART

      Area Measurement
      a 13.0 mm (0.512 in.)
      b 40.0 mm (1.575 in.)
  2. INSTALL NO. 1 WINDSHIELD GLASS STOPPER
    1. Install 2 new stoppers to the vehicle body as shown in the illustration.
  3. INSTALL BACK WINDOW GLASS DAM
    1. Apply Primer G to the glass where the dams will be installed.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
      Fig 2: Identifying Back Window Glass Dam
      G05300236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the peeling paper from the adhesive part of the dam. Install the dam (adhesive side) to the glass (Primer G area), but exclude the area above the notches on the upper part of the glass.

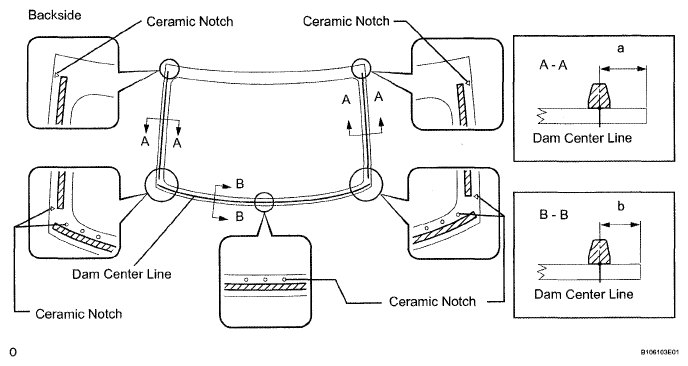

      Fig 3: Identifying Dam Center Line
      G05300237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Specification

      AREA MEASUREMENT CHART

      Area Measurement
      a 9.5 mm (0.374 in.)
      b 7.5 mm (0.295 in.)
  4. INSTALL BACK WINDOW GLASS
    1. Position the glass.
      1. Using suction cups, place the glass in the correct position.
      2. Check that the entire contact surface of the glass rim is perfectly even.
      3. Place matchmarks on the glass and vehicle body on the locations indicated in the illustration.

        HINT:

        • Placing matchmarks is only necessary when installing new glass. If it is the reused glass, matchmarks should already be present.
        • When reusing the glass, check and correct the matchmark positions.
        NOTE: Check that the stoppers are attached to the vehicle body correctly.
      4. Using suction cups, remove the glass.
      Fig 4: Holding Glass In Place
      G05300226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a brush, apply Primer M to the exposed part of the vehicle body.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Do not apply primer to the adhesive.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    3. Using a brush or sponge, apply Primer G to the contact surface of the glass.

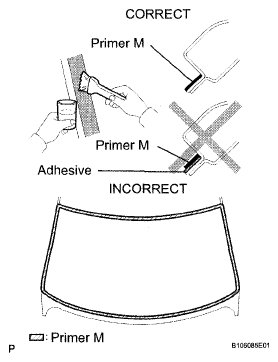

      Fig 5: Applying Primer G
      G05300223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

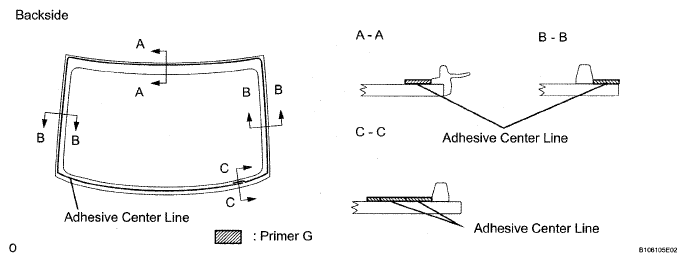

      Fig 6: Applying Primer G
      G05300240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the primer is applied to an area that is not specified, apply white gasoline to a clean cloth and wipe off the excess primer.

      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    4. Apply adhesive to the glass.

      Adhesive:

      Part No. 08850-00801 or equivalent

      1. Cut off the tip of the cartridge nozzle as shown in the illustration.

        HINT:

        After cutting off the tip, use all adhesive within the time written in the table below.

        Usage time frame

        TEMPERATURE CHART

        Temperature Usage time frame
        35°C (95°F) 15 minutes
        20°C (68°F) 1 hour 40 minutes
        5°C (41 °F) 8 hours
      2. Load the sealer gun with the cartridge.
      3. Apply adhesive to the glass as shown in the illustration.

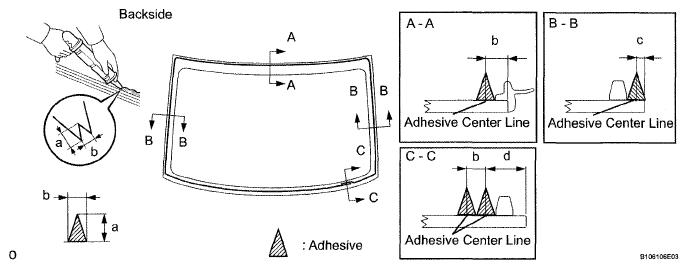

        Fig 7: Applying Adhesive To Glass
        G05300241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Specification

        AREA MEASUREMENT CHART

        Area Measurement
        a 12.0 mm (0.472 in.)
        b 8.0 mm (0.315 in.)
        c 3.0 mm (0.118 in.)
        d 14 mm (0.551 in.)
    5. Install the glass to the vehicle body.
      1. Using suction cups, position the glass so that the matchmarks are aligned. Press it in gently along the rim.
      2. Lightly press the outer surface of the glass to ensure that it is securely fit to the vehicle body.
        NOTE:
        • Check that the stoppers are attached to the vehicle body correctly.
        • Check that the vehicle body and glass have a small gap between them.
      3. Hold the glass in place securely with protective tape or equivalent until the adhesive hardens.
    Fig 8: Holding Glass In Place
    G05300226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL BACK WINDOW MOLDING

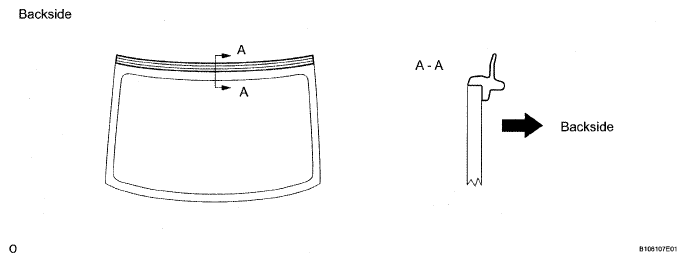

    Fig 9: Identifying Back Window Molding
    G05300243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a brush or sponge, apply Primer G to the glass where a new molding will be installed.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    2. Align the moldings marks with the glass's notches and install a new molding before the adhesive dries.
      NOTE: Do not drive the vehicle for the amount of time written in the table below.

      Minimum time

      TEMPERATURE CHART

      Temperature Minimum time prior to driving vehicle
      35°C (95°F) 1 hour 30 minutes
      20°C (68°F) 5 hours
      5°C (41°F) 24 hours
  6. INSTALL ROOF HEADLINING ASSEMBLY (See  INSTALLATION  )
  7. INSTALL ASSIST GRIP ASSEMBLY
  8. INSTALL REAR ROOM LIGHT ASSEMBLY (See  INSTALLATION  )
  9. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (See  INSTALLATION  )
  10. INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (See  INSPECTION  )
  11. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade) (See  INSTALLATION  )
  12. INSTALL ROOF SIDE GARNISH INNER (See  INSTALLATION  )
  13. INSTALL REAR SEAT SIDE GARNISH (See  INSTALLATION  )
  14. INSTALL CENTER PILLAR GARNISH (See  INSTALLATION  )
  15. INSTALL CENTER PILLAR GARNISH LOWER (See  INSTALLATION  )
  16. INSTALL REAR DOOR SCUFF PLATE (See  INSTALLATION  )
  17. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (See  INSTALLATION  )
  18. INSTALL REAR SEATBACK ASSEMBLY (See  INSTALLATION  )
  19. INSTALL REAR SEAT HEADREST ASSEMBLY RH AND LH
  20. INSTALL REAR SEAT BELT OUTER ANCHOR (See  INSTALLATION  )
  21. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )
  22. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  23. CHECK FOR LEAKS AND REPAIR
    1. Conduct a leak test after the adhesive has completely hardened.
    2. Seal any leaks with auto glass sealer.
