Inspection Procedure

NOTE: When replacing the skid control ECU or brake actuator assembly, perform initialization of linear solenoid valve and calibration (see INITIALIZATION ).

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU TO BRAKE ACTUATOR ASSEMBLY)

Disconnect the skid control ECU and brake actuator assembly connector.

Measure the resistance according to the value(s) in the table below.

Resistance

TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

Tester Connection	Specified Condition
A13-9 (PCK1) - A16-37 (PCK1)	Below 1 Ω
A13-26 (PAC1) - A16-46 (PAC1)	Below 1 Ω
A13-27 (VCM) - A16-35 (VCM)	Below 1 Ω
A13-43 (E) - A16-45 (E)	Below 1 Ω

Measure the resistance according to the value(s) in the table below.

Resistance

TESTER CONNECTION SPECIFIED CONDITION REFERENCE CHART

Tester Connection	Specified Condition
A13-9 (PCK1) - Body ground	10 kΩ or higher
A13-26 (PAC1) - Body ground	10 kΩ or higher
A13-27 (VCM) - Body ground	10 kΩ or higher
A13-43 (E) - Body ground	10 kΩ or higher

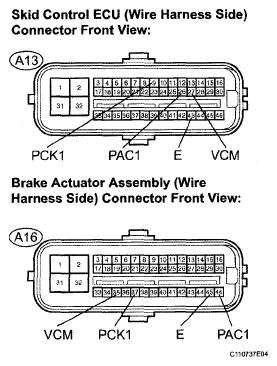

Fig 1: Identifying Skid Control ECU And Brake Actuator Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

RECONFIRM DTC

Clear the DTC (see DTC CHECK / CLEAR ).
Turn the engine switch on (IG).
Check if the same DTC is recorded (see DTC CHECK / CLEAR ).
HINT:

Reinstall the sensors, connectors, etc. and restore the vehicle to its prior condition before rechecking for DTCs.

Result

RESULT CHART

Display (DTC Output)	Proceed To
DTC (C1365/54) is output	A
DTC (C1365/54) is not output	B

B: END

A: Go to next step

CHECK FREEZE FRAME DATA

Check the information code from the FREEZE FRAME DATA memorized when the DTC (C1365/54) is stored .

Result

RESULT CHART

Condition	Proceed To
Sensor power supply voltage trouble codes (211) are output	A
Sensor output value trouble codes (212, 214 and 215) are output	B

B: REPLACE BRAKE ACTUATOR ASSEMBLY

A: REPLACE SKID CONTROL ECU
