Engine Control for 2GR-FSE: Notes

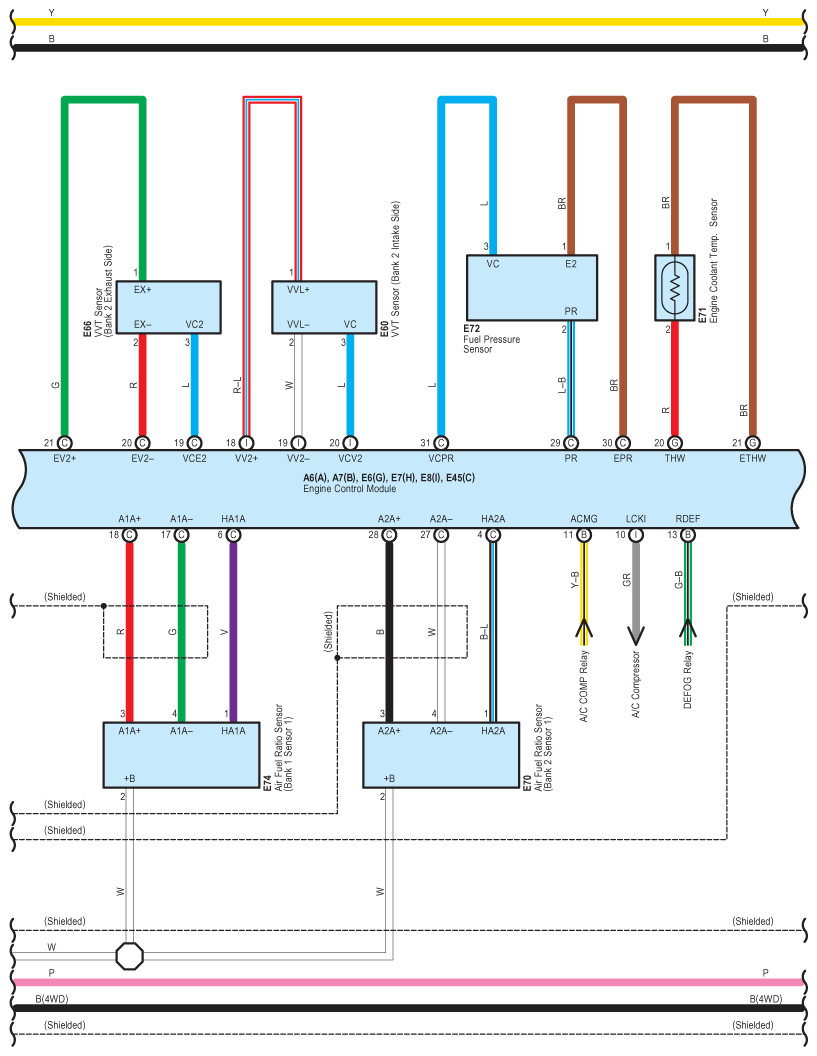

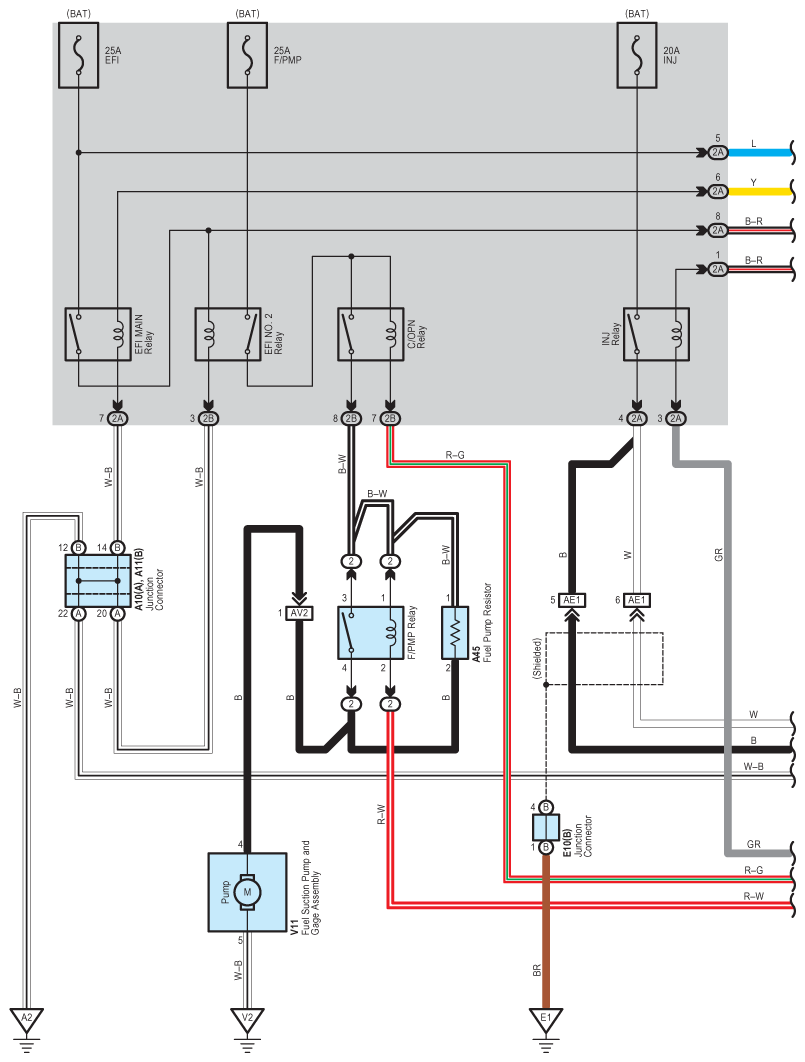

Fig 1: Engine Control For 2GR-FSE System Wiring Diagram (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

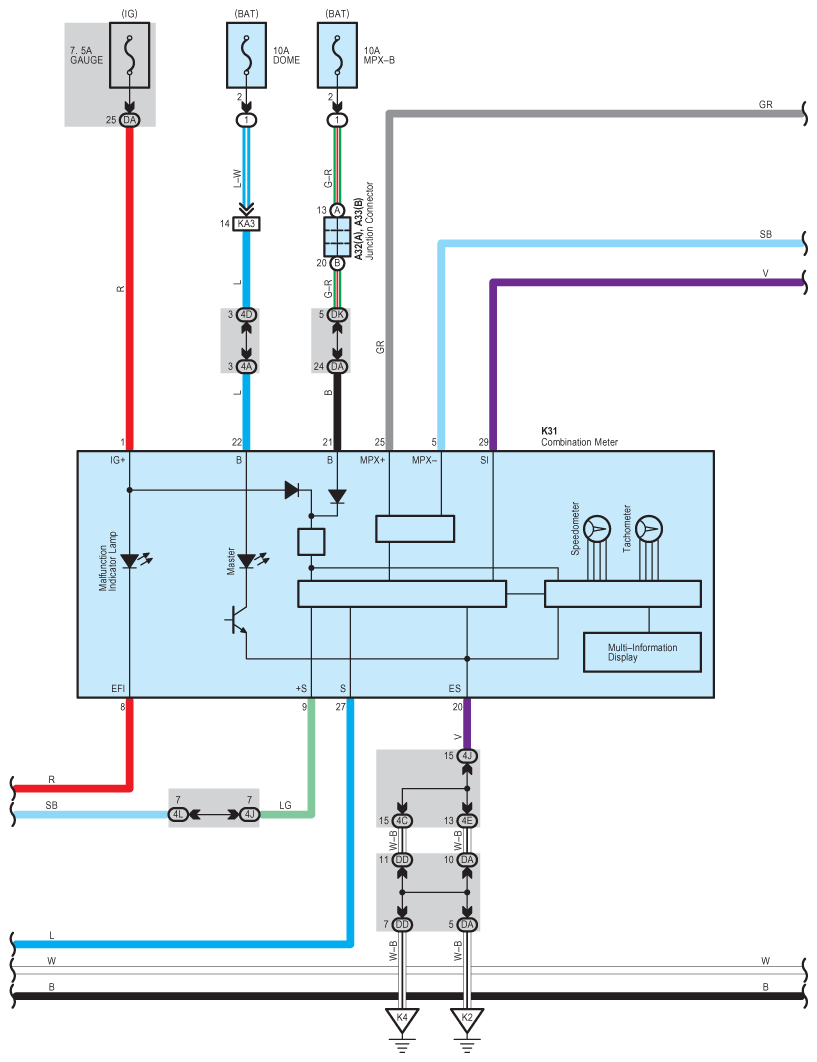

Fig 2: Engine Control For 2GR-FSE System Wiring Diagram (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

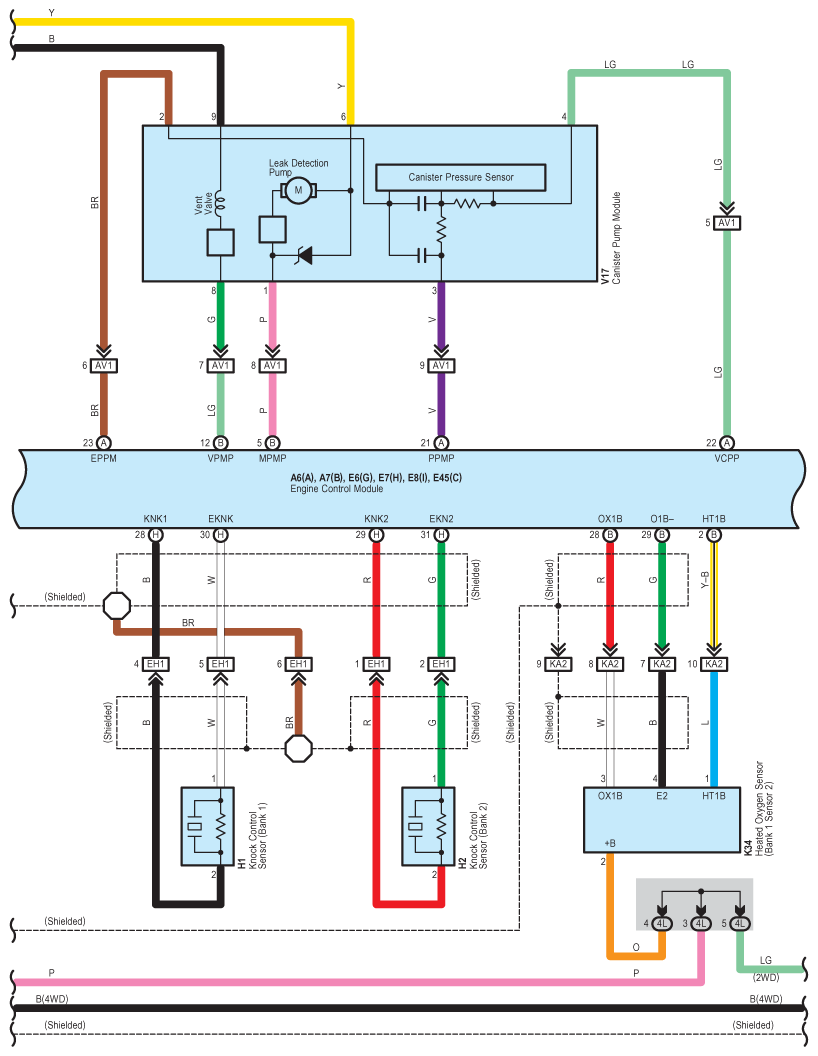

Fig 3: Engine Control For 2GR-FSE System Wiring Diagram (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

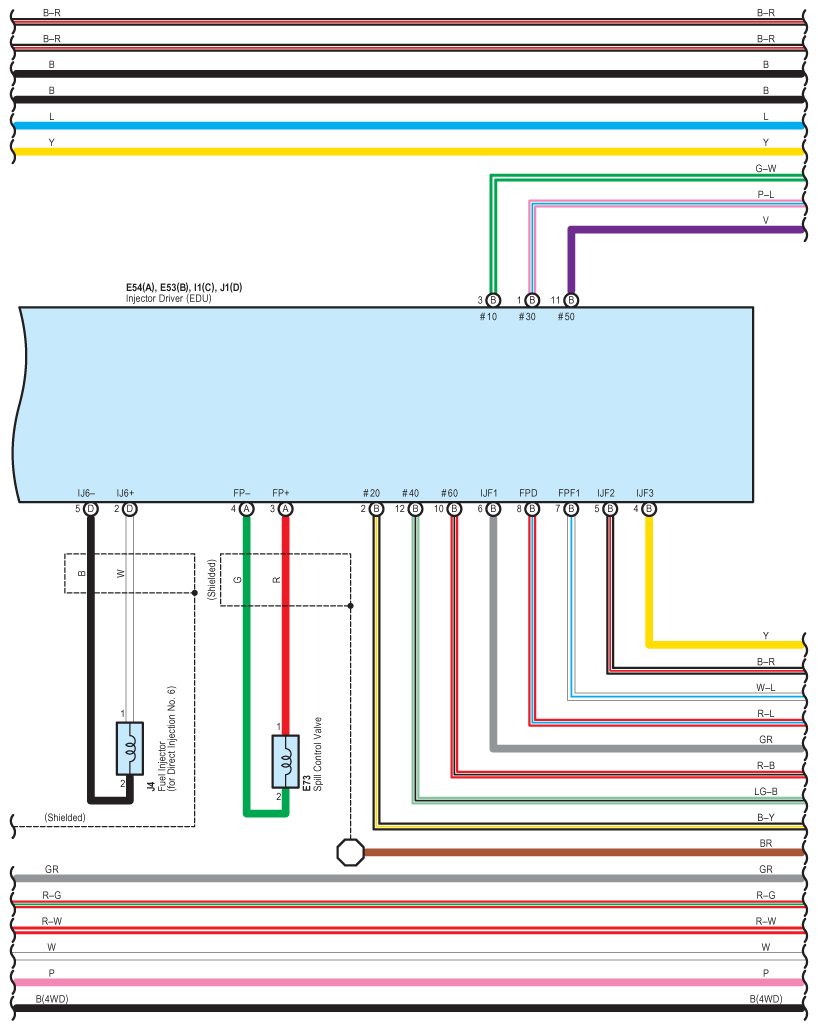

Fig 4: Engine Control For 2GR-FSE System Wiring Diagram (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

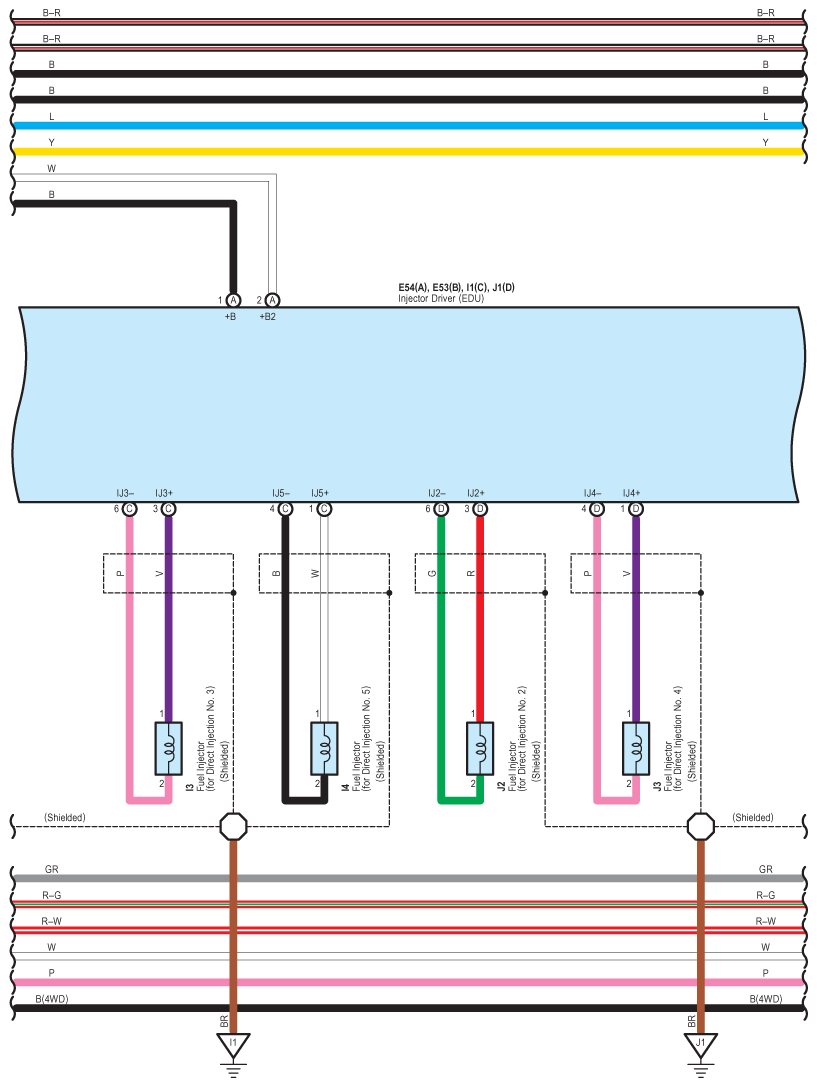

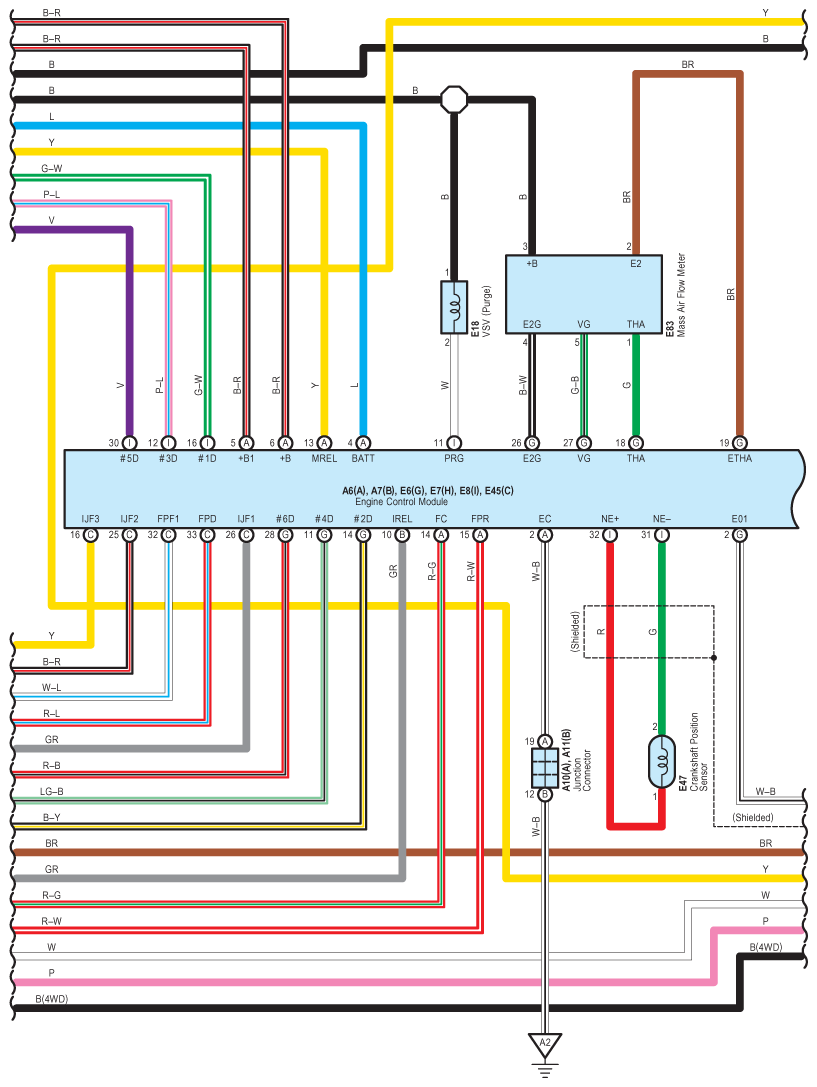

Fig 5: Engine Control For 2GR-FSE System Wiring Diagram (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

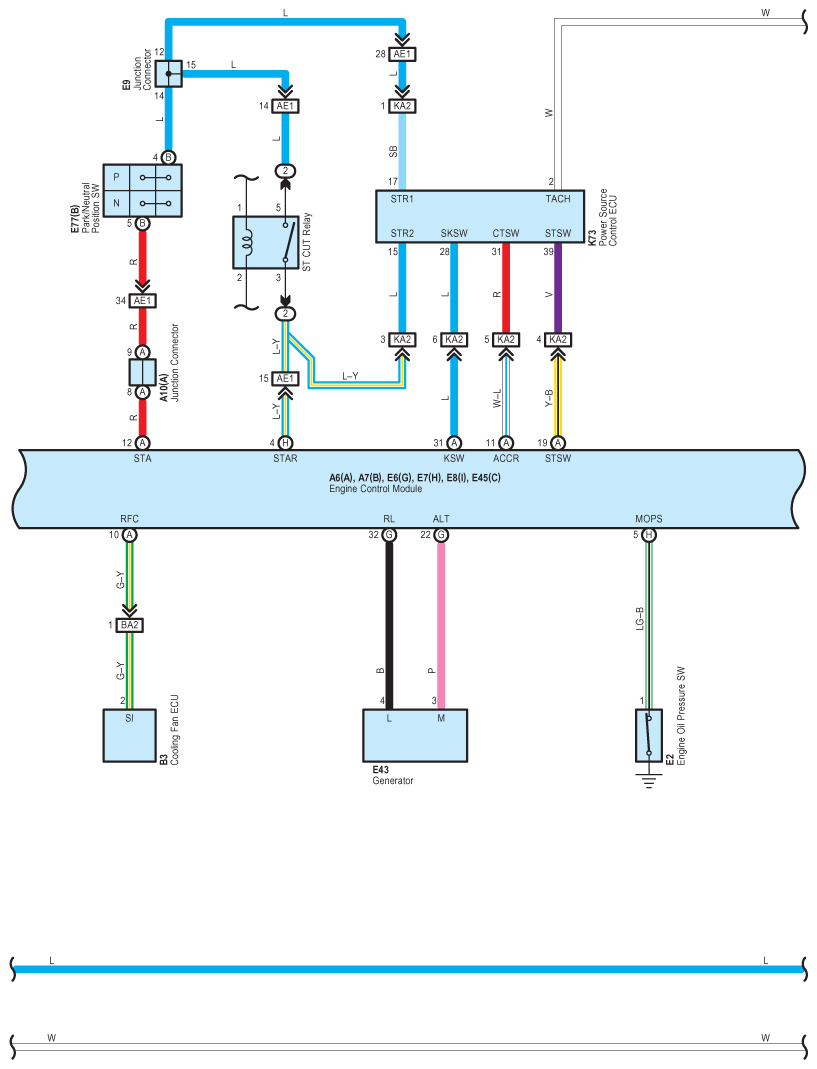

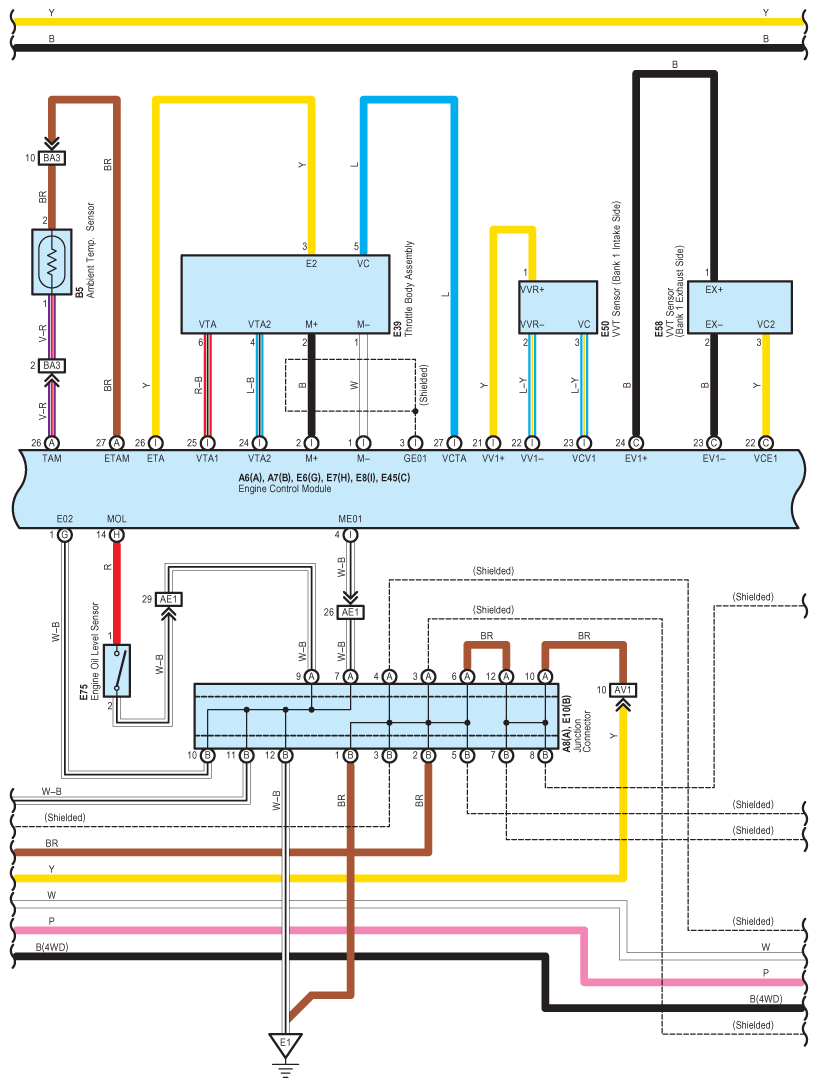

Fig 6: Engine Control For 2GR-FSE System Wiring Diagram (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Engine Control For 2GR-FSE System Wiring Diagram (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Control For 2GR-FSE System Wiring Diagram (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

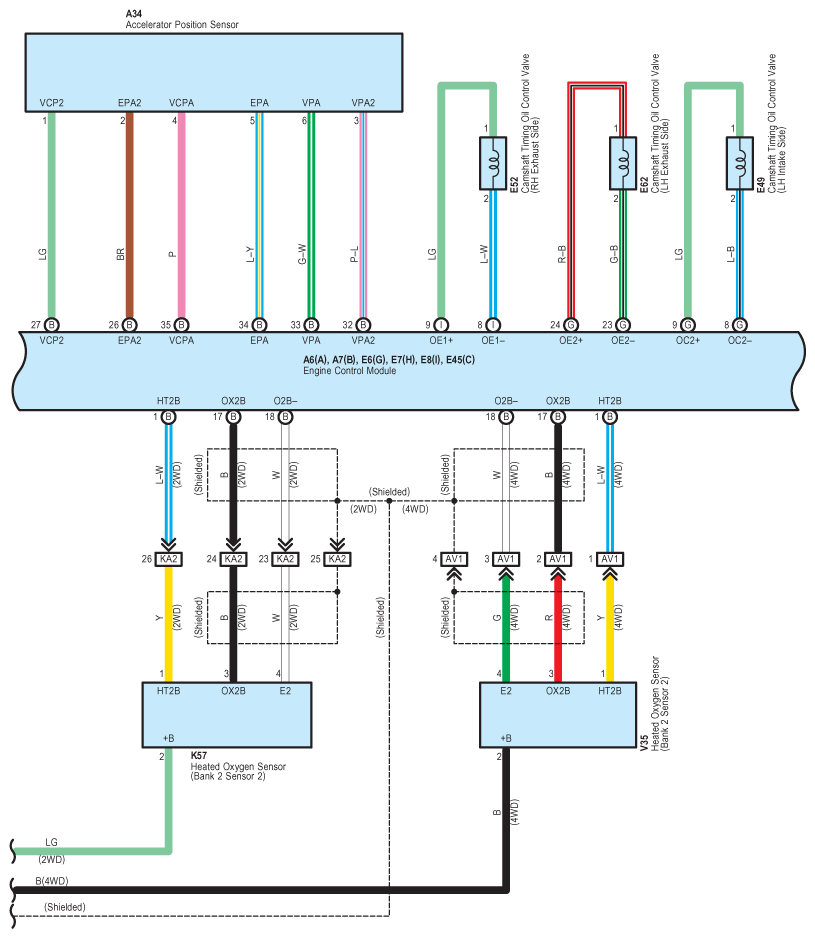

Fig 9: Engine Control For 2GR-FSE System Wiring Diagram (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

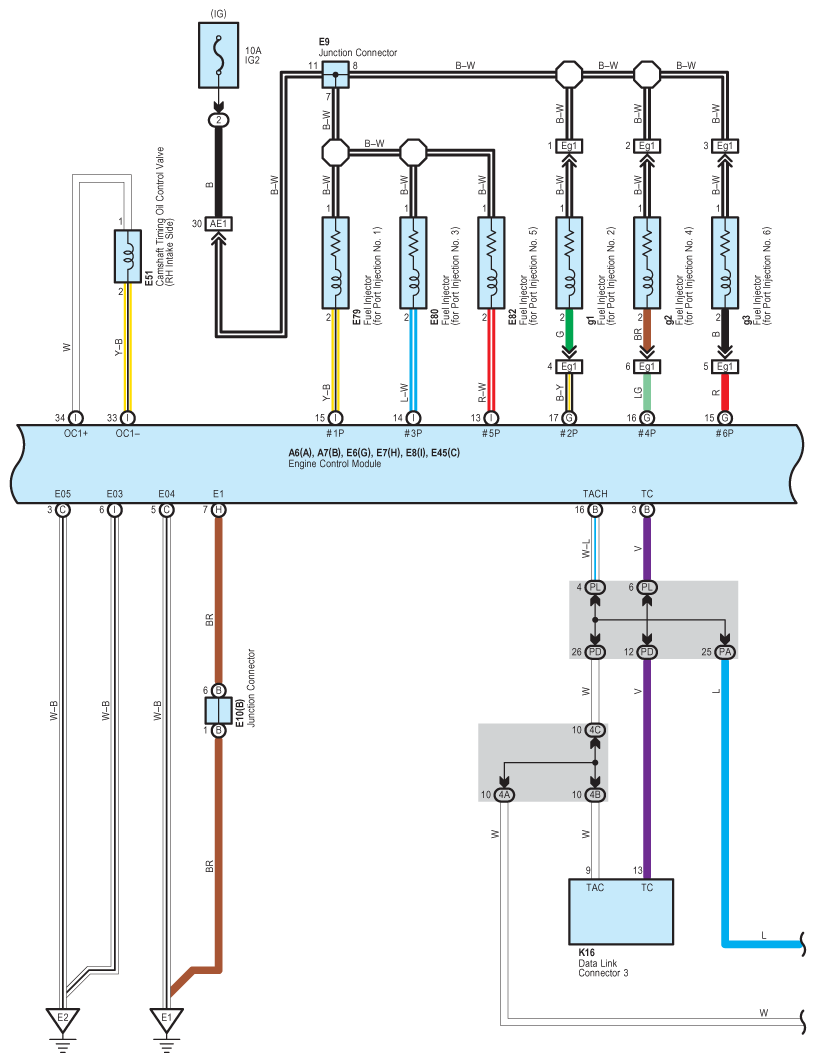

Fig 10: Engine Control For 2GR-FSE System Wiring Diagram (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Control For 2GR-FSE System Wiring Diagram (11 Of 15)

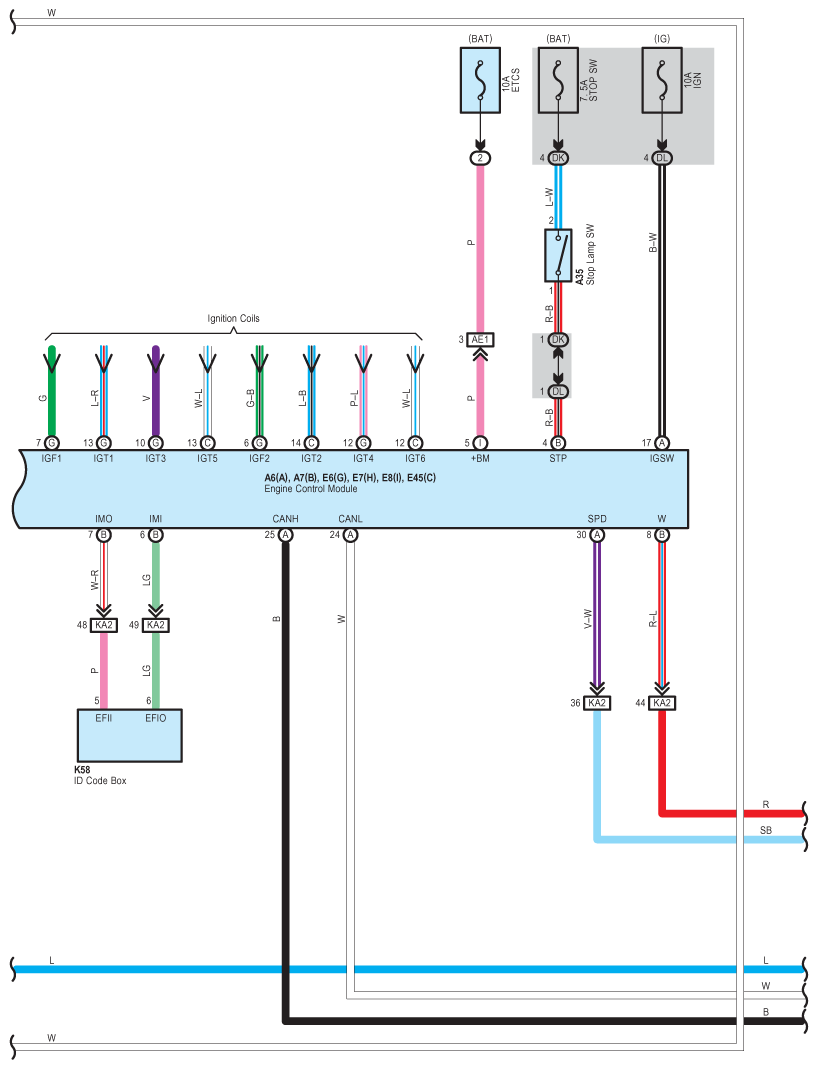

Fig 12: Engine Control For 2GR-FSE System Wiring Diagram (12 Of 15)

Fig 13: Engine Control For 2GR-FSE System Wiring Diagram (13 Of 15)

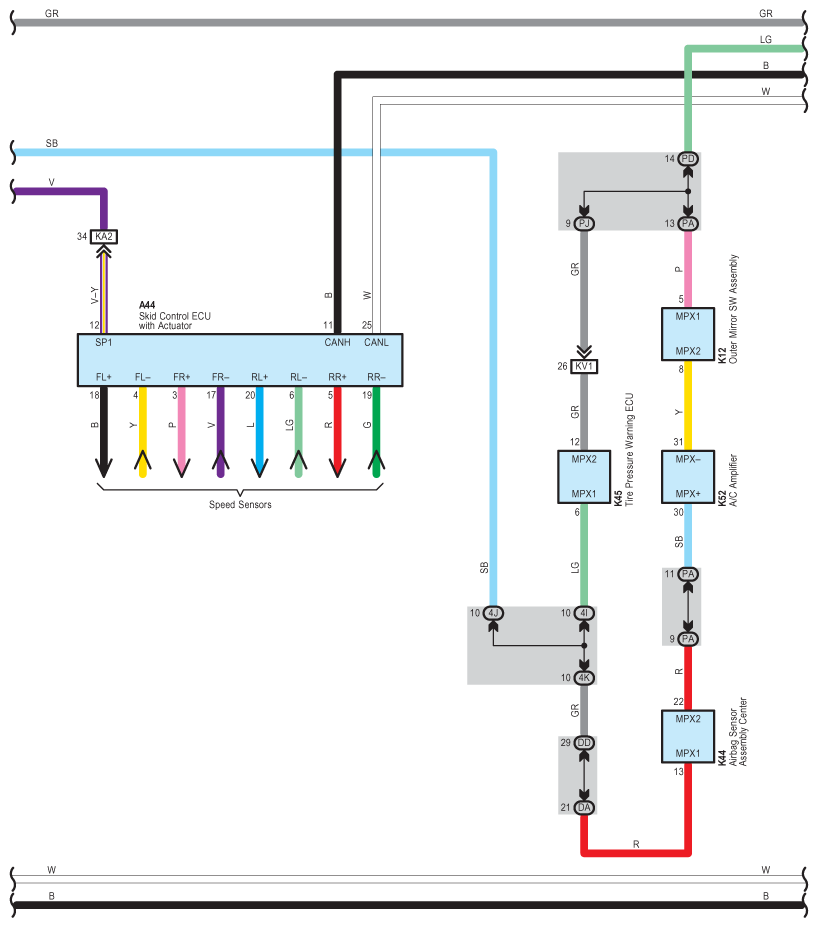

Fig 14: Engine Control For 2GR-FSE System Wiring Diagram (14 Of 15)

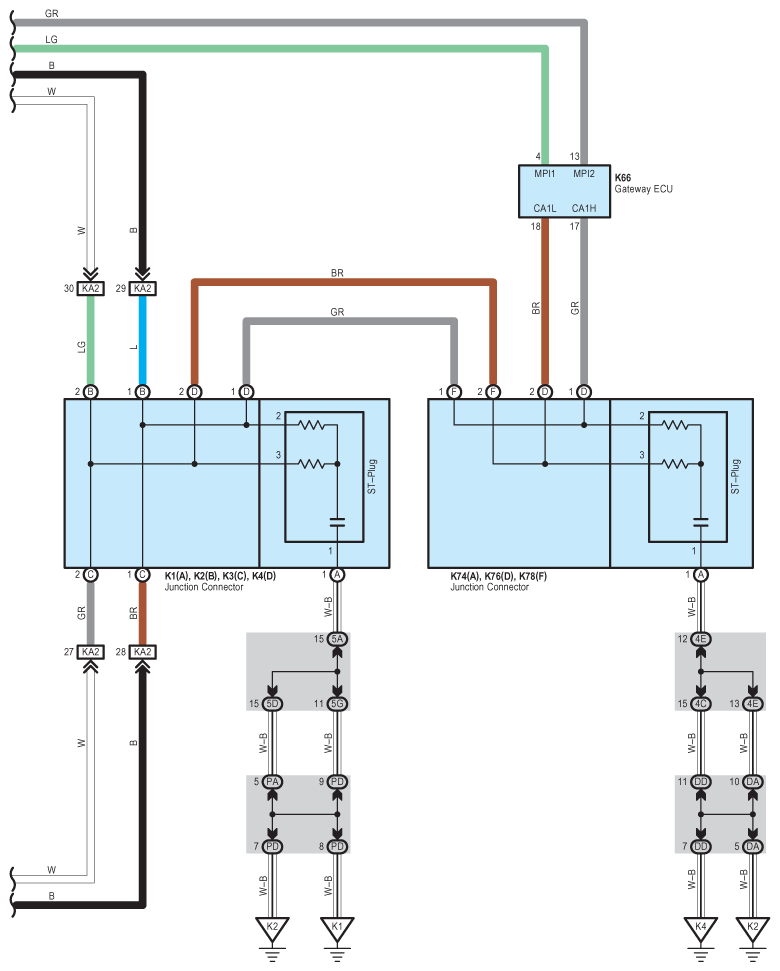

Fig 15: Engine Control For 2GR-FSE System Wiring Diagram (15 Of 15)
