Front Fog Light: Notes

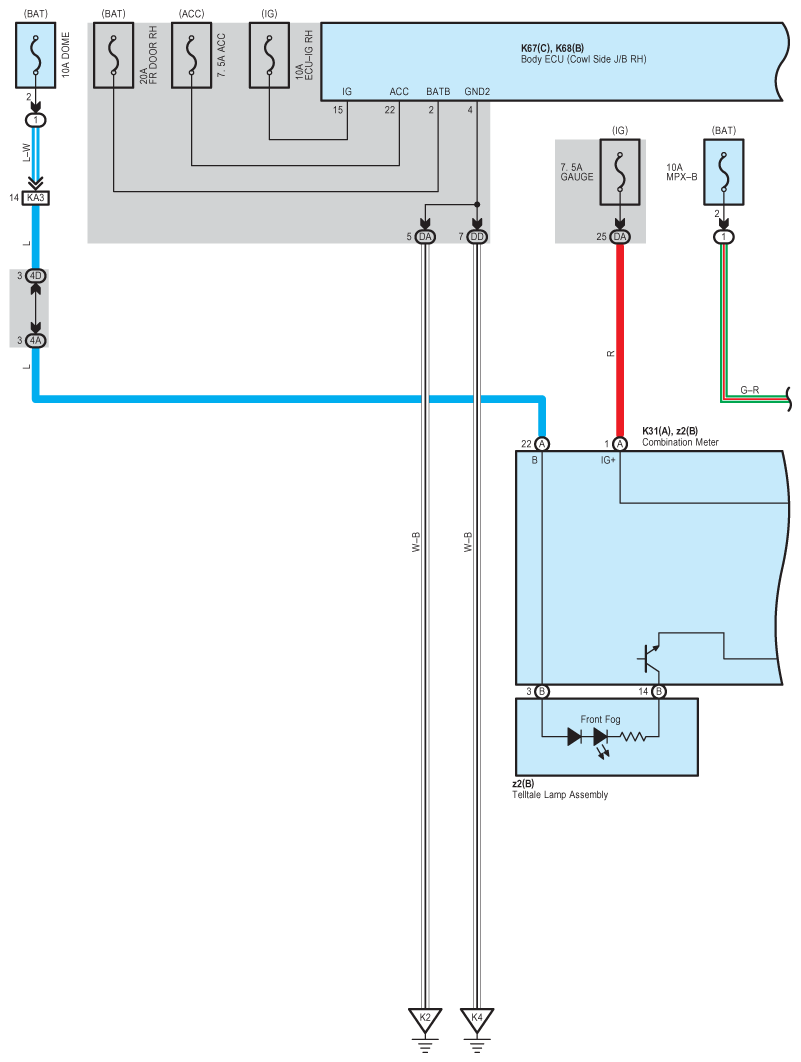

Fig 1: Front Fog Light System Wiring Diagram (1 Of 5)
G08915674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

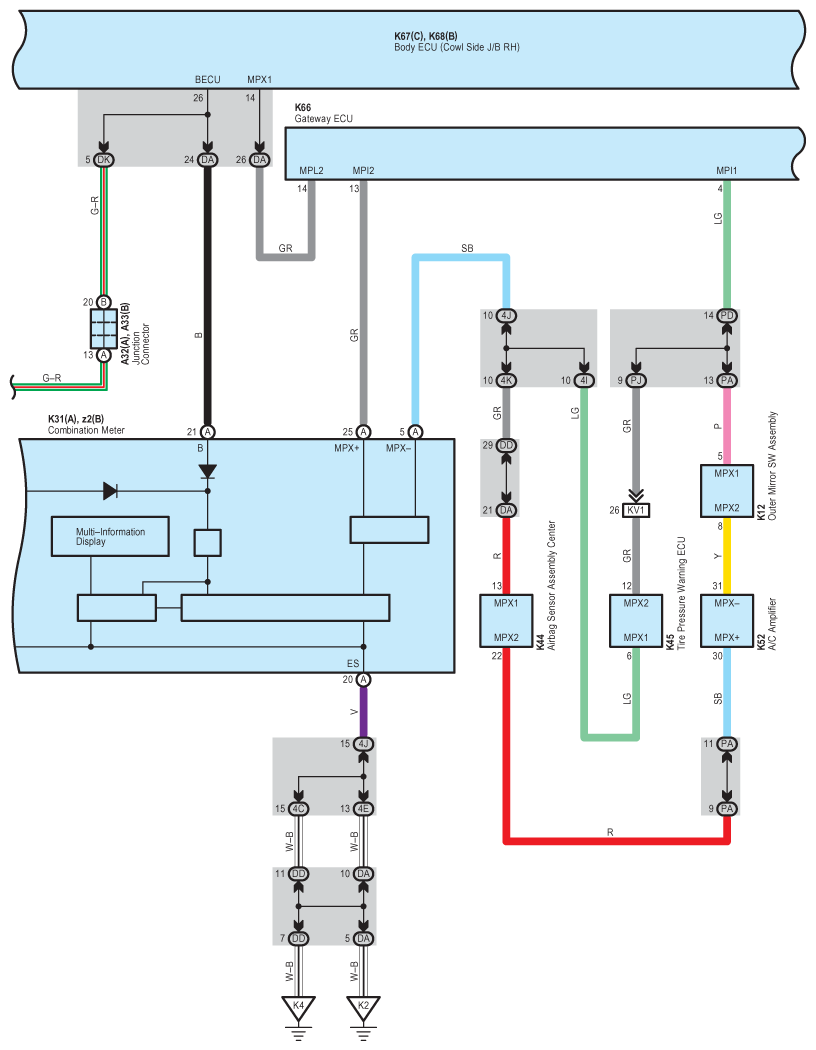

Fig 2: Front Fog Light System Wiring Diagram (2 Of 5)
G08915675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

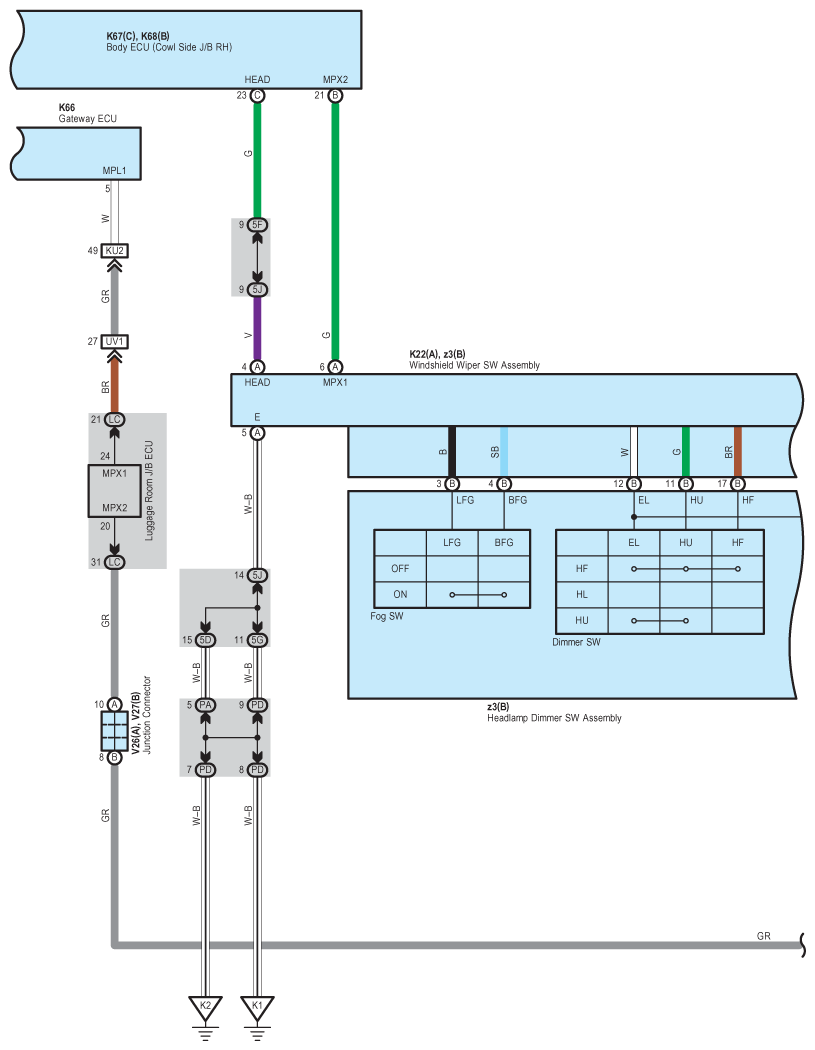

Fig 3: Front Fog Light System Wiring Diagram (3 Of 5)
G08915676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

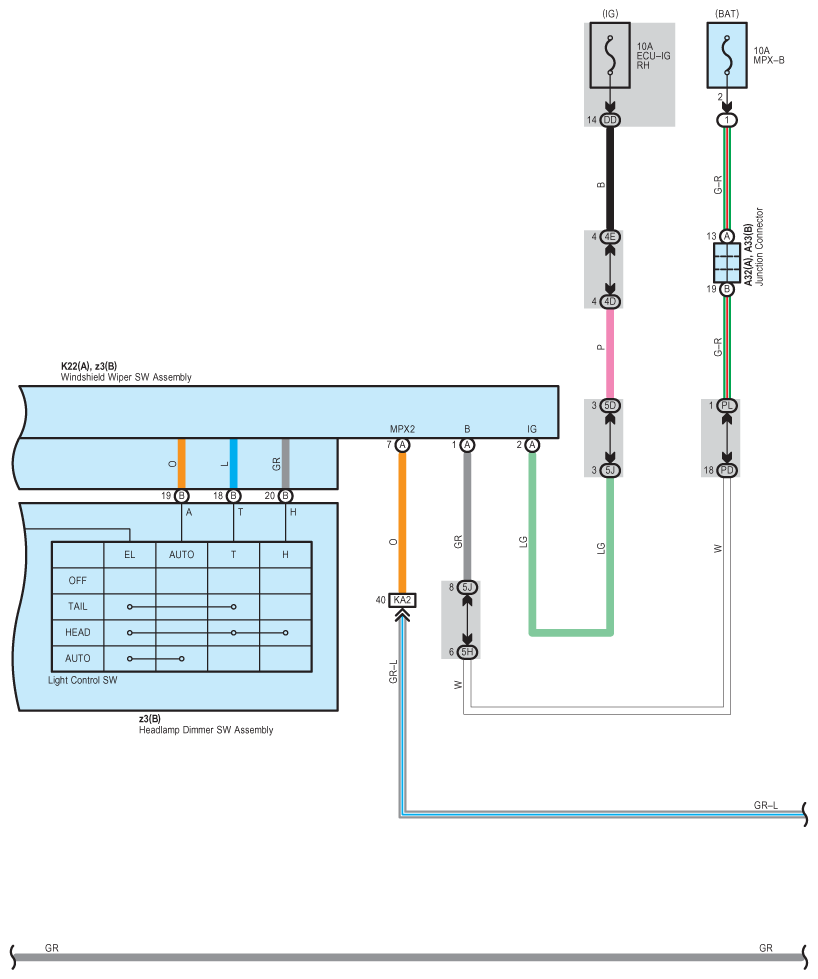

Fig 4: Front Fog Light System Wiring Diagram (4 Of 5)
G08915677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

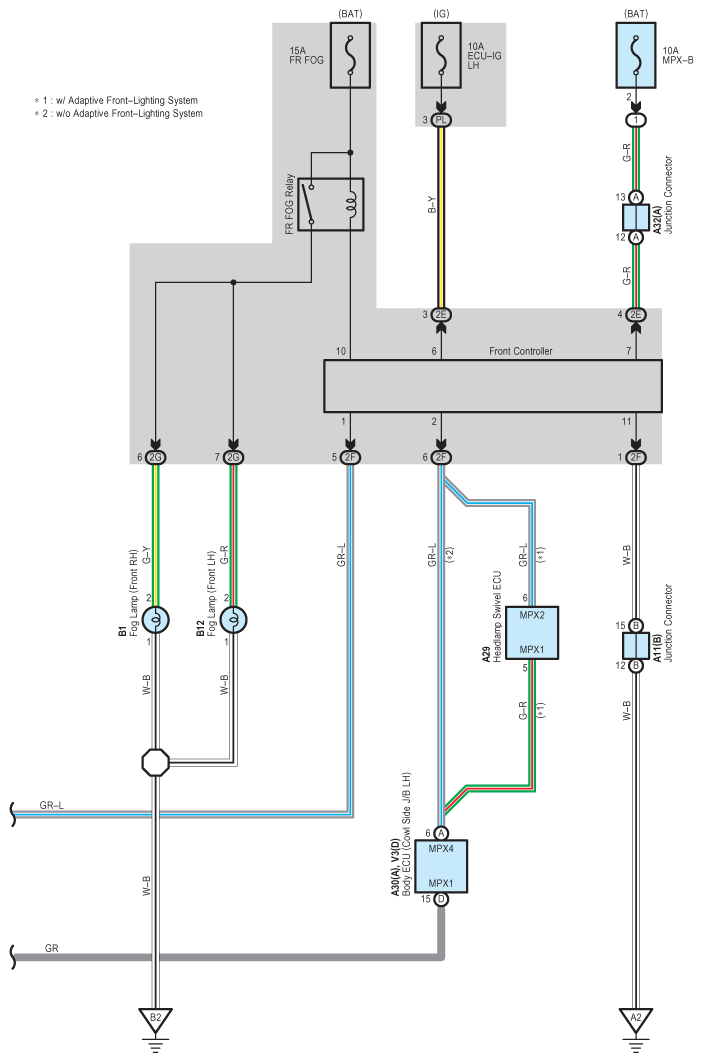

Fig 5: Front Fog Light System Wiring Diagram (5 Of 5)
G08915678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
