DTC Check / Clear

CHECK DTC (USING INTELLIGENT TESTER)
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the engine switch on (IG).
3. Read the DTCs by following the prompts on the tester screen.
  HINT:

  Please Refer to the intelligent tester operator's manual for further details.
Fig 1: Connecting Intelligent Tester To DLC3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK DTC (USING SST CHECK WIRE)
1. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
  SST 09843-18040
2. Turn the engine switch on (IG).

  Fig 2: Identifying DLC3 Connector Terminal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Read and record any DTCs indicated by the multi-information display on the combination meter.

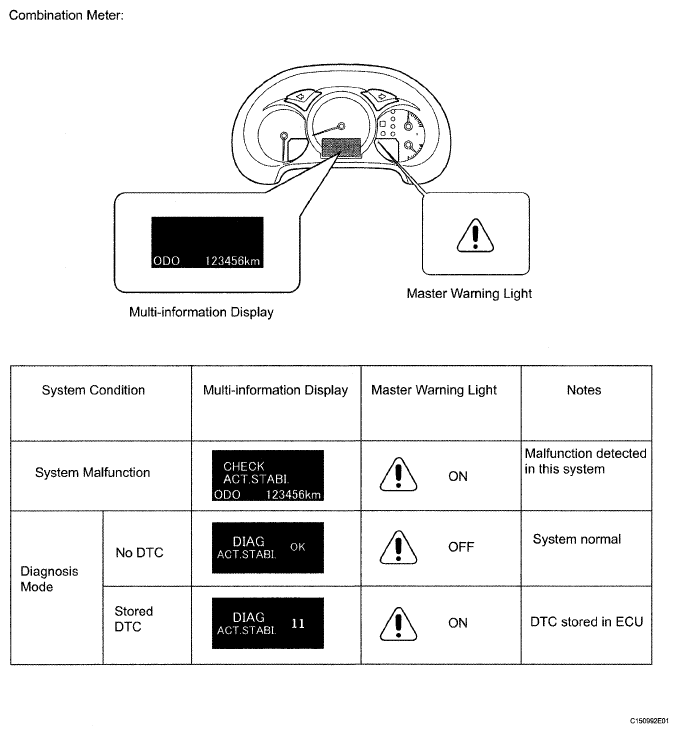

Fig 3: Combination Meter Warning Light Display Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

If 2 or more malfunctions are indicated at the same time, the lowest numbered DTC is displayed first.
CLEAR DTC
1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the engine switch on (IG).
3. Erase the DTCs by following the directions on the tester screen.
  HINT:

  Please Refer to the intelligent tester operator's manual for further details.
