Sliding Roof: Notes

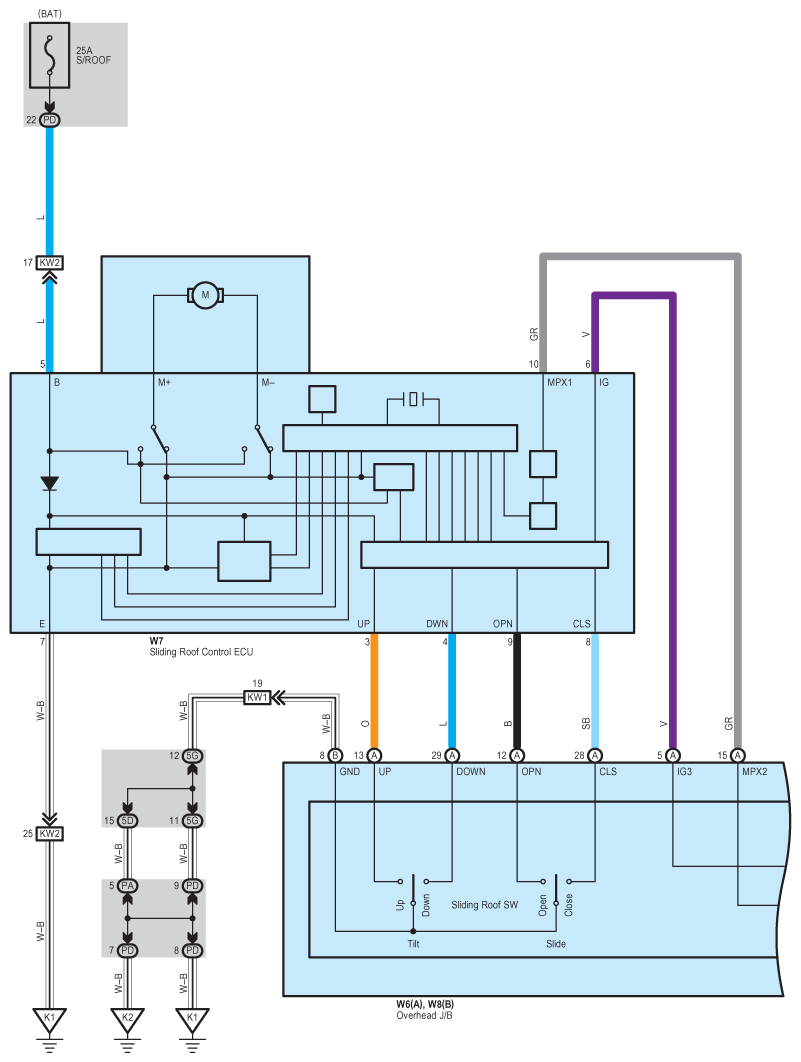

Fig 1: Sliding Roof System Wiring Diagram (1 Of 4)
G08915888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

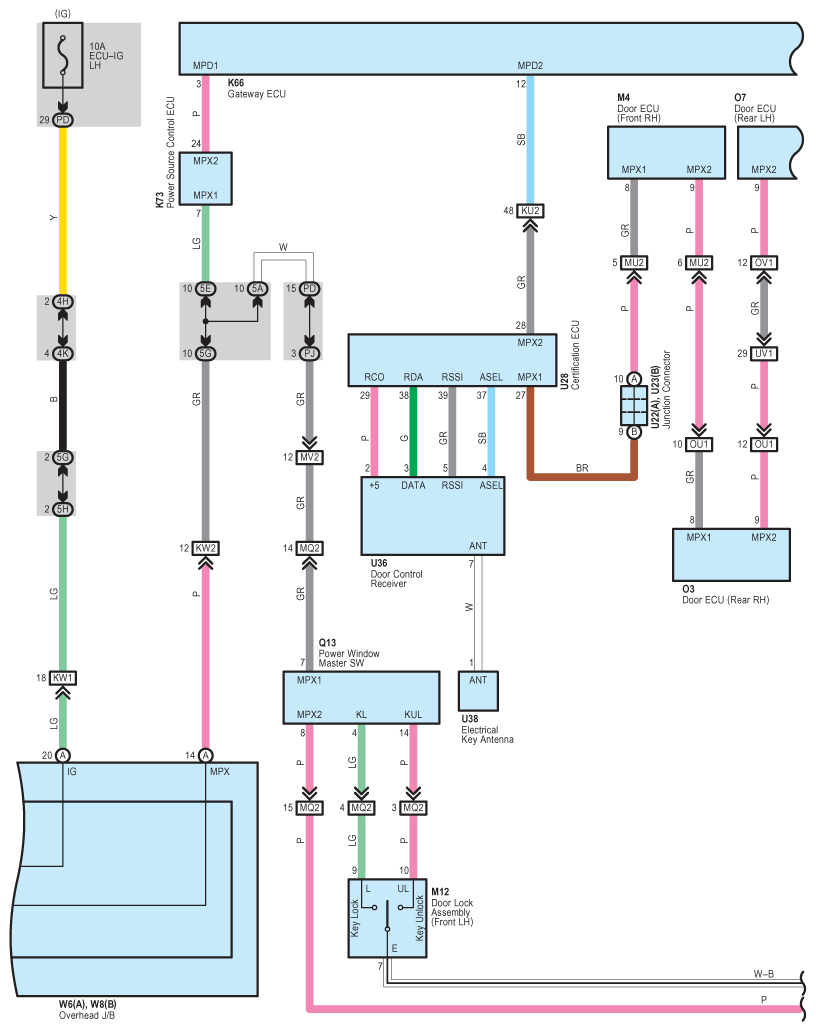

Fig 2: Sliding Roof System Wiring Diagram (2 Of 4)
G08915889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

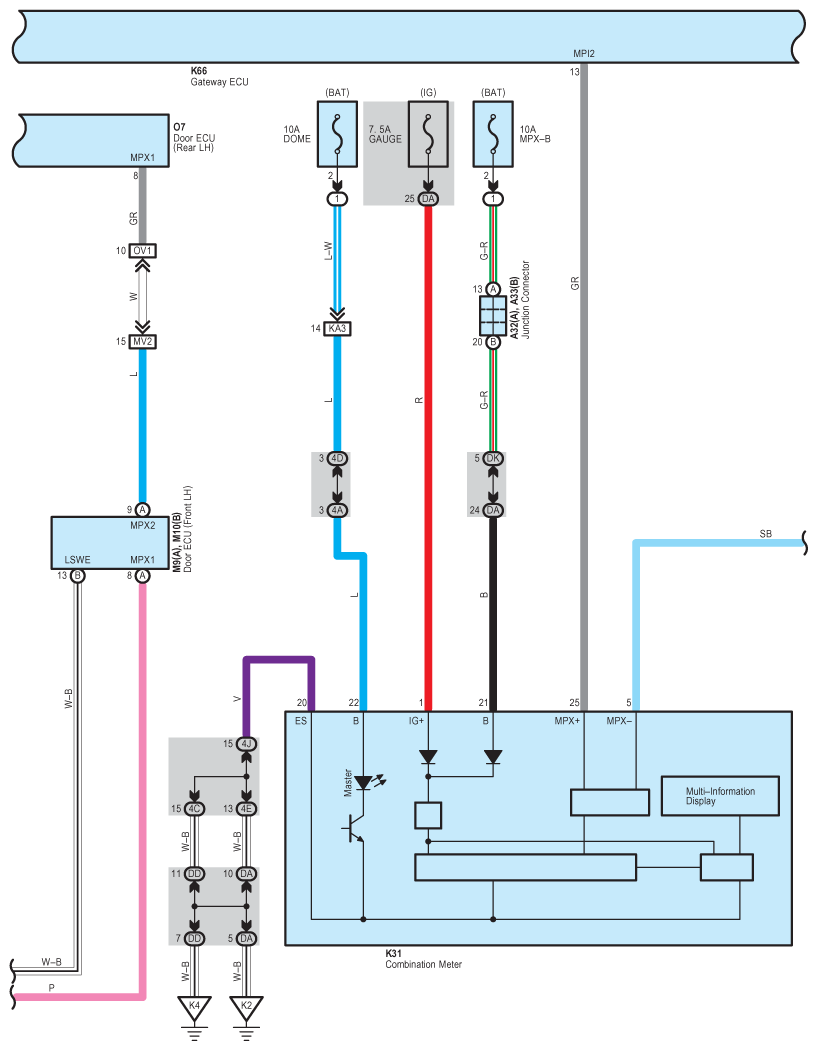

Fig 3: Sliding Roof System Wiring Diagram (3 Of 4)
G08915890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Sliding Roof System Wiring Diagram (4 Of 4)
G08915891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
