Key Lock-In Prevention Function Does Not Work Properly

Key Lock-in Prevention Function does not Work Properly

DESCRIPTION

When the door control transmitter is in the vehicle or the door courtesy light ON signal is output to the ECU, performing the door lock operation with the lock switch on the outer handle will not lock the door.

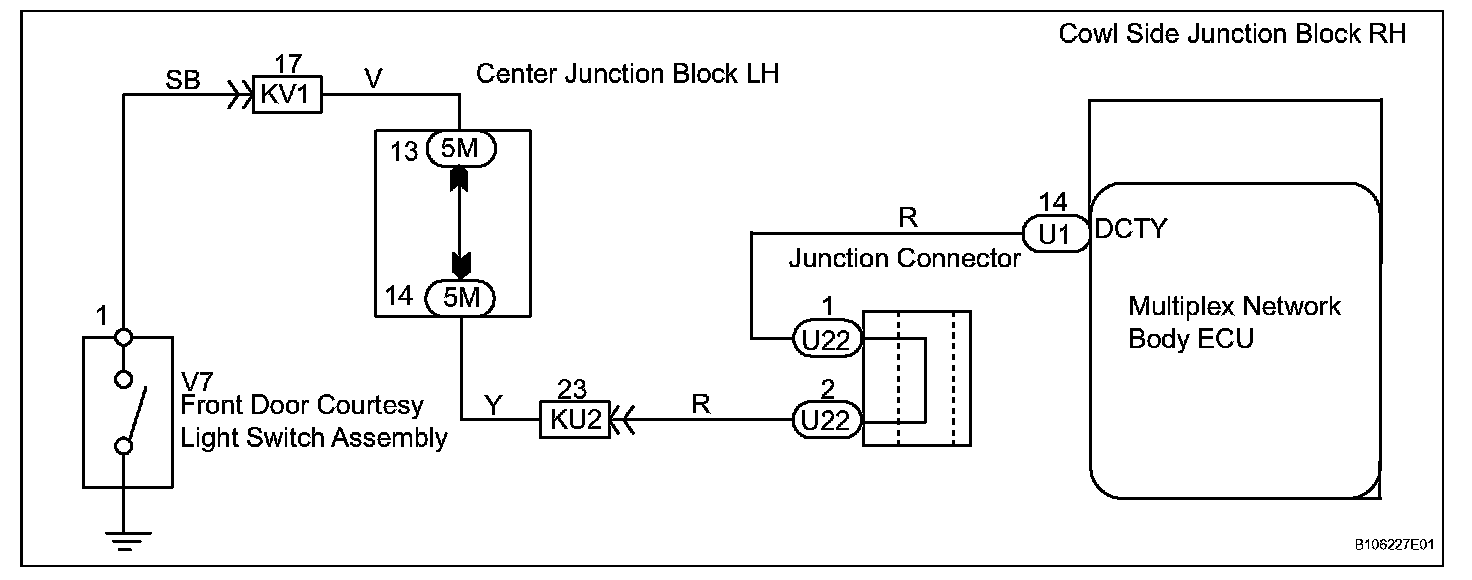

Wiring Diagram:

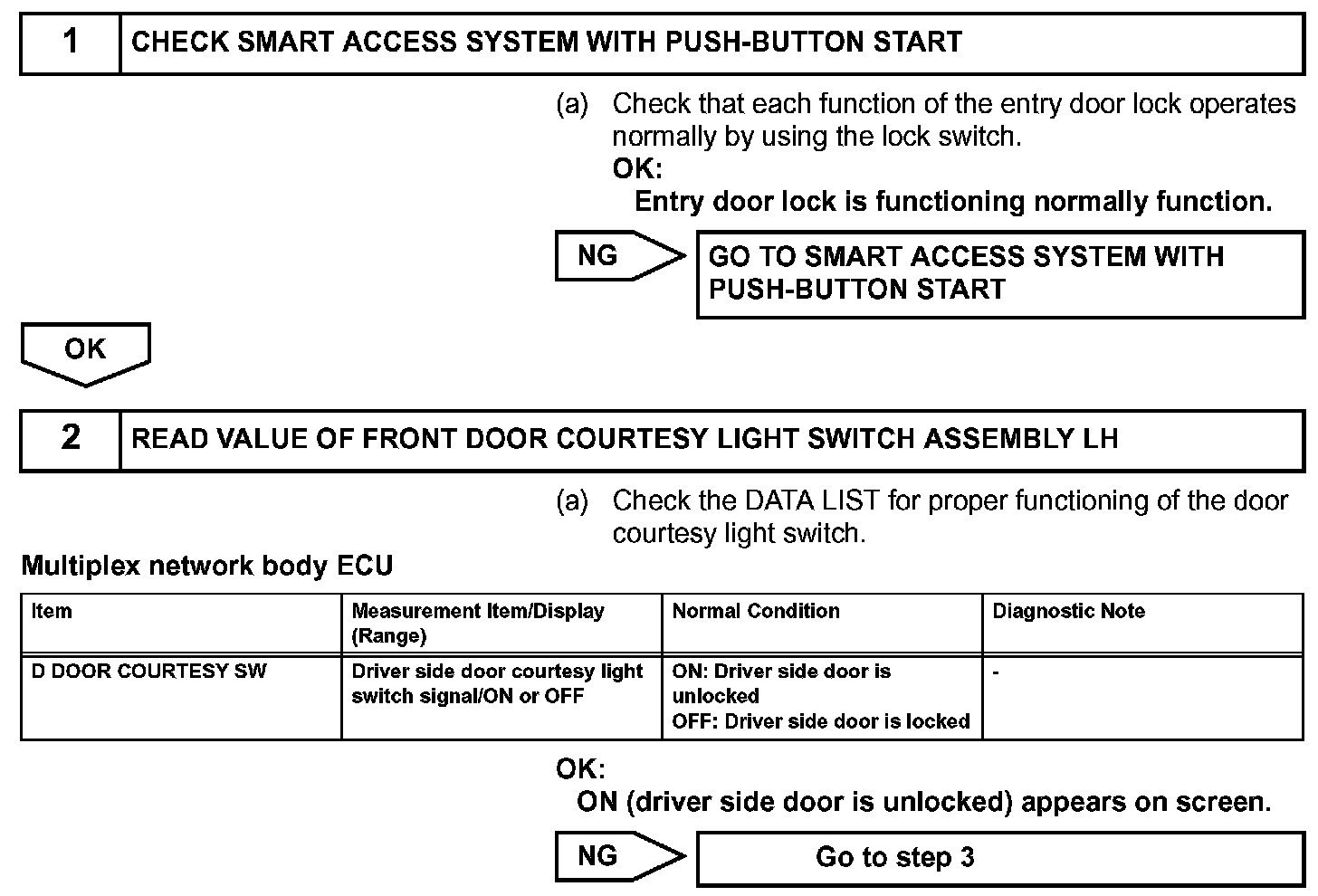

Step 1-2:

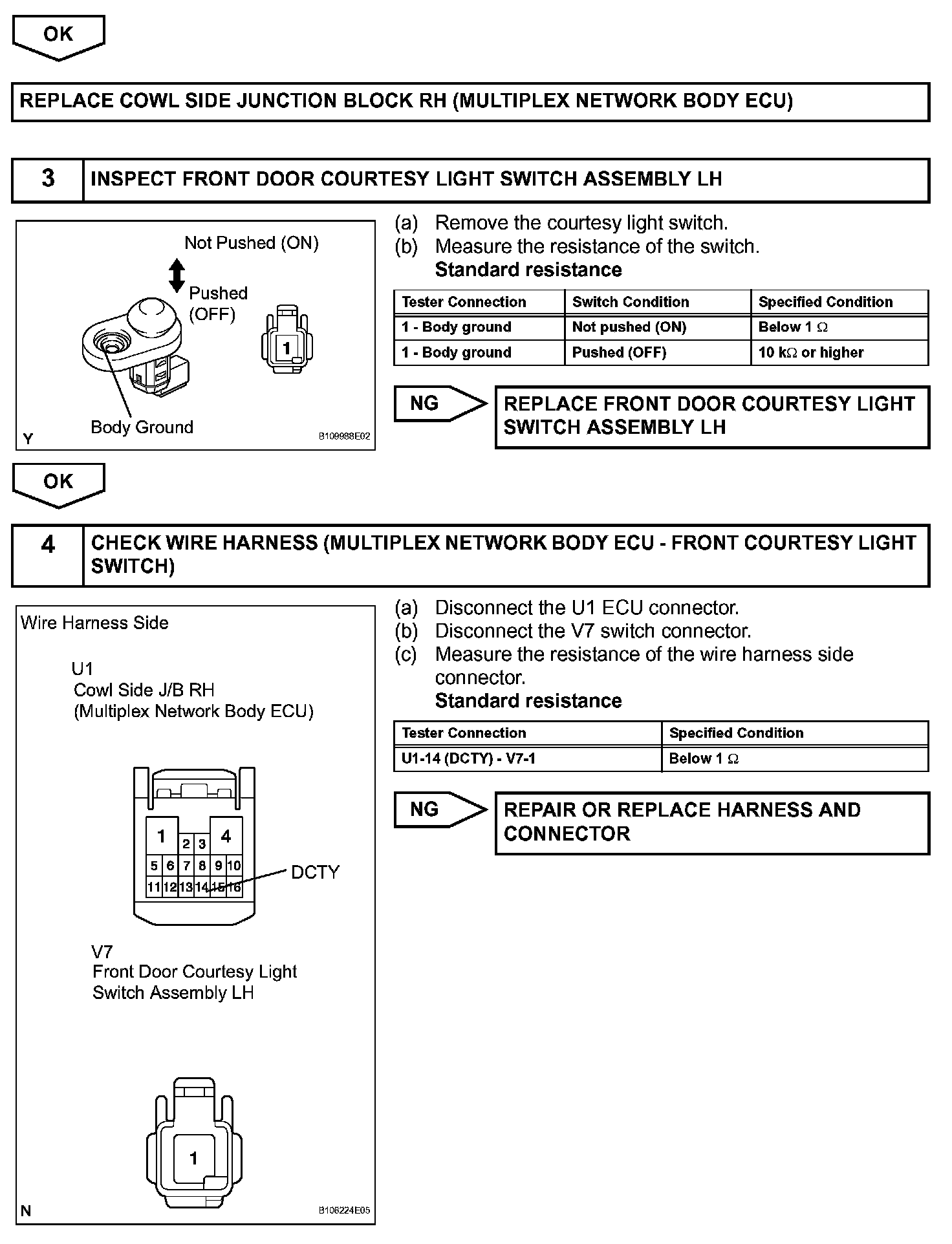

Step 2 (Continued)-4:

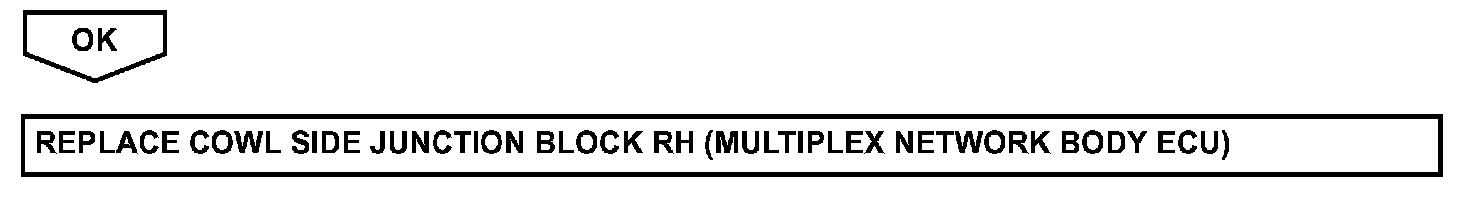

Step 4 (Continued):

INSPECTION PROCEDURE
