Alignment

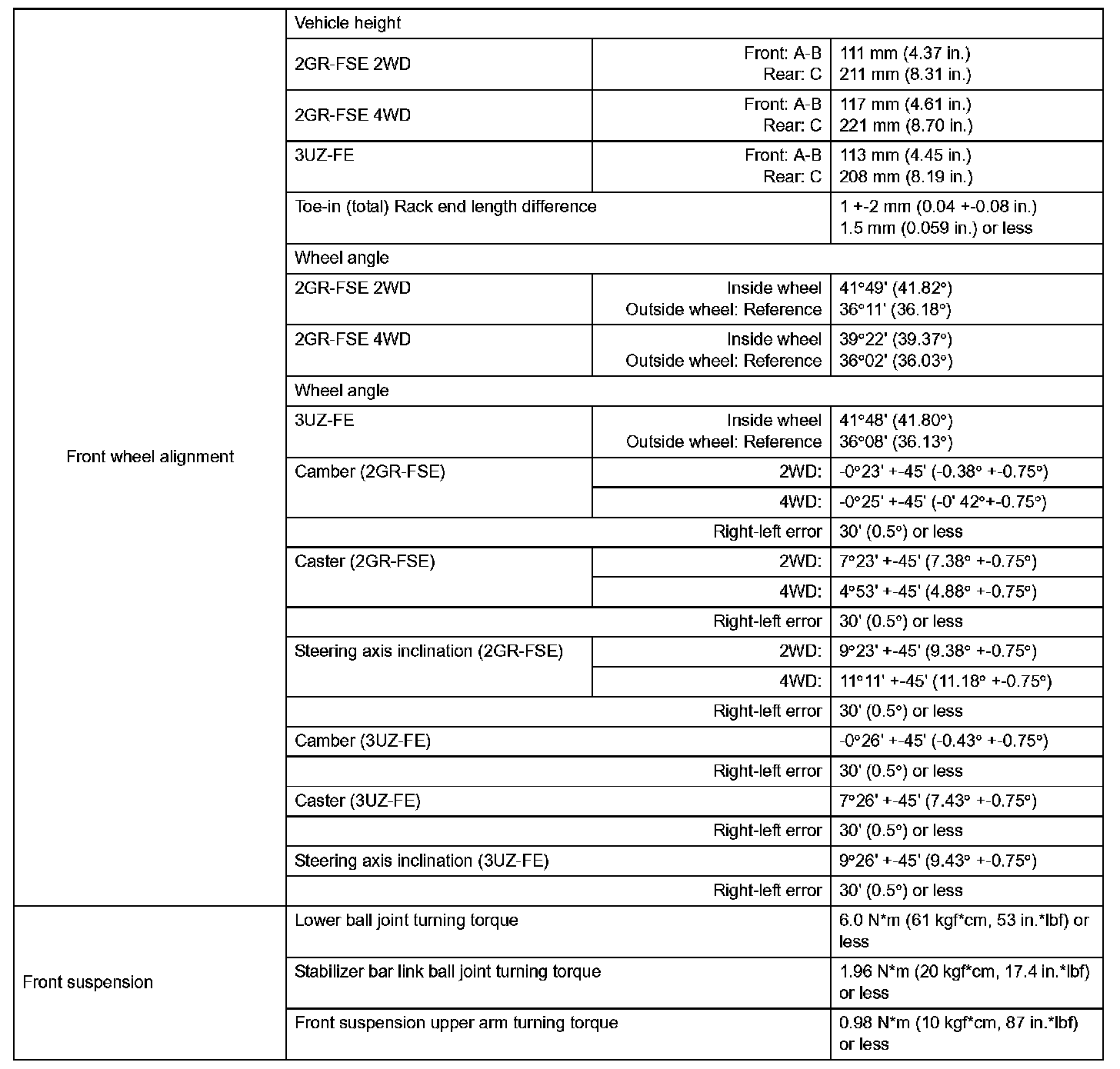

Front Suspension Service Data:





A: Ground clearance of front wheel center
B: Ground clearance of front center position of front suspension lower arm front bush installation bolt head
C: Ground clearance of rear center position of rear No.2 lower arm bush installation bolt screw thread

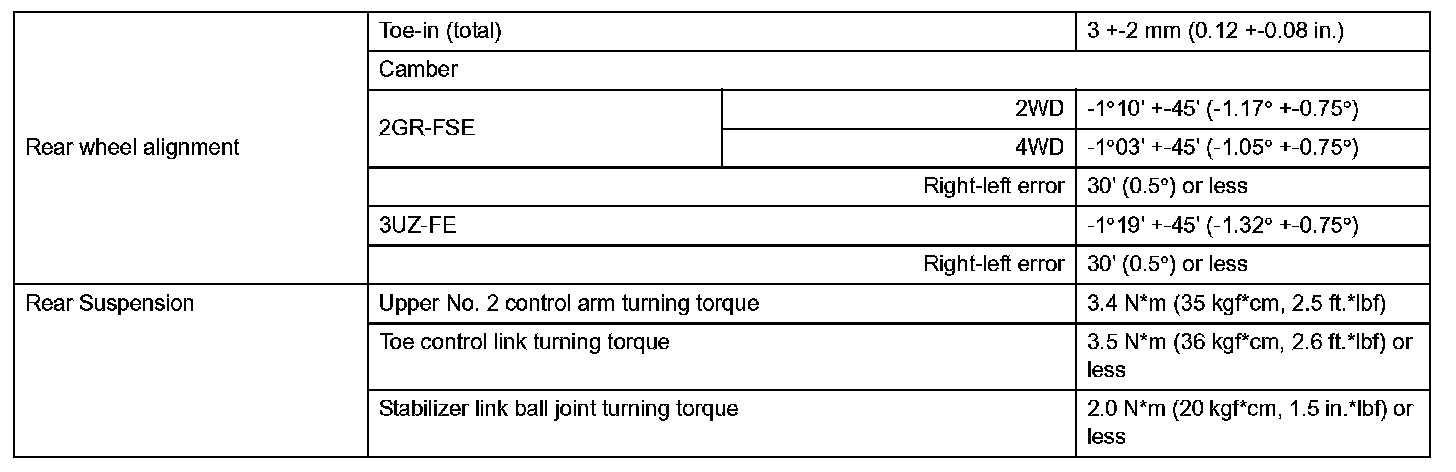

Rear Suspension Service Data:
