Headlight Beam Level Control: Notes

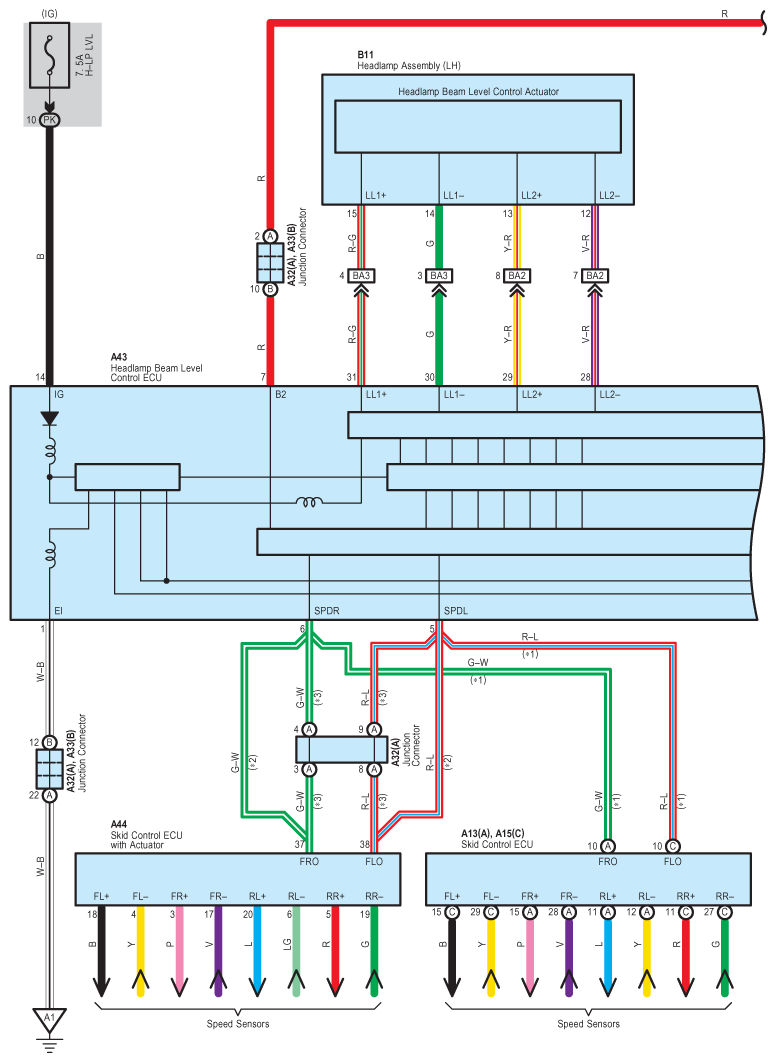

Fig 1: Headlight Beam Level Control System Wiring Diagram (1 Of 5)
G08915694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

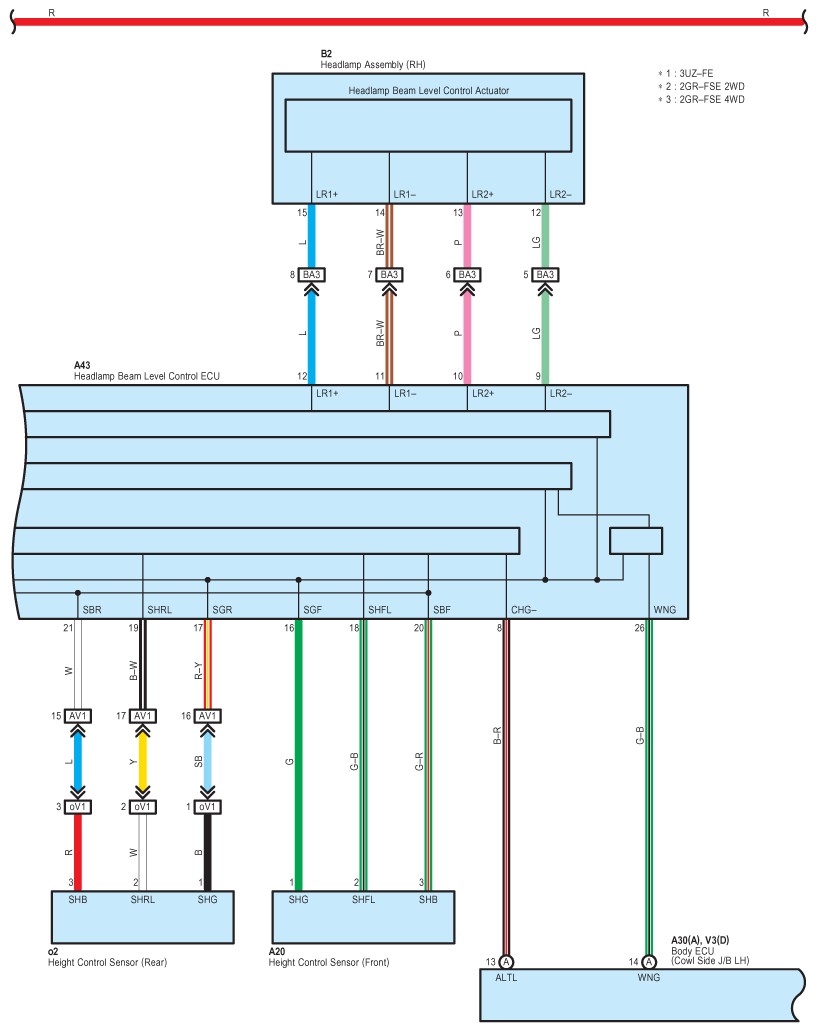

Fig 2: Headlight Beam Level Control System Wiring Diagram (2 Of 5)
G08915695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

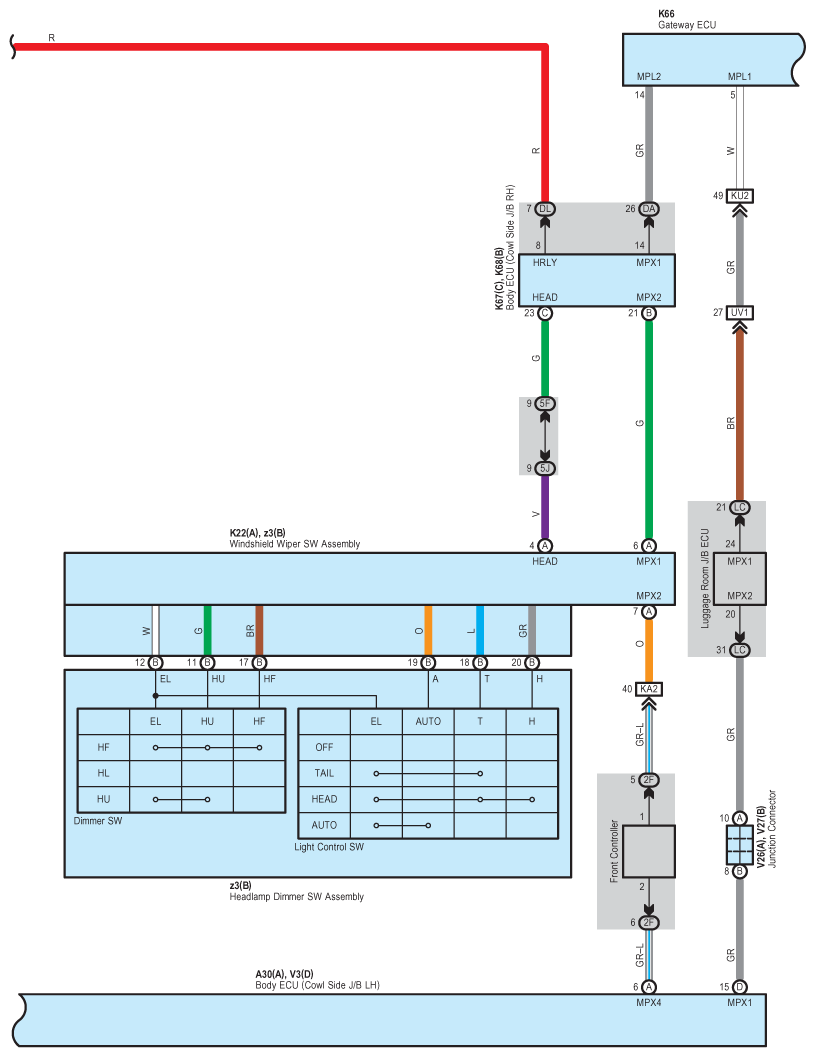

Fig 3: Headlight Beam Level Control System Wiring Diagram (3 Of 5)
G08915696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

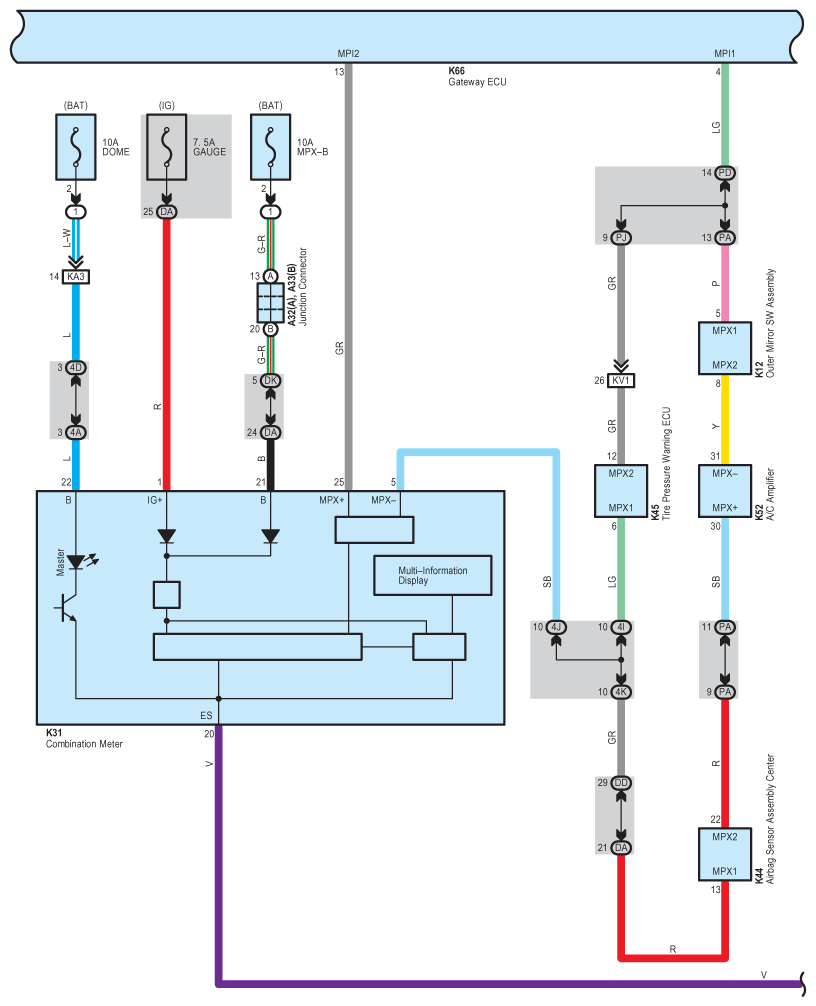

Fig 4: Headlight Beam Level Control System Wiring Diagram (4 Of 5)
G08915697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

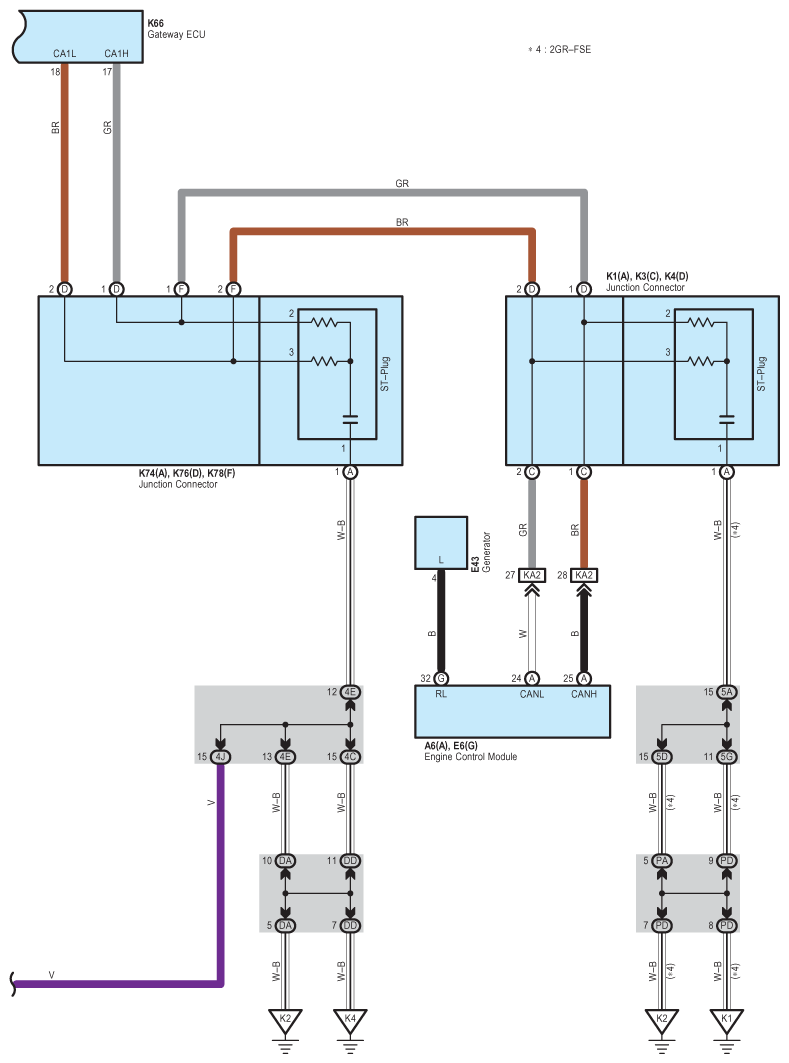

Fig 5: Headlight Beam Level Control System Wiring Diagram (5 Of 5)
G08915698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
