Shift Lock: Notes

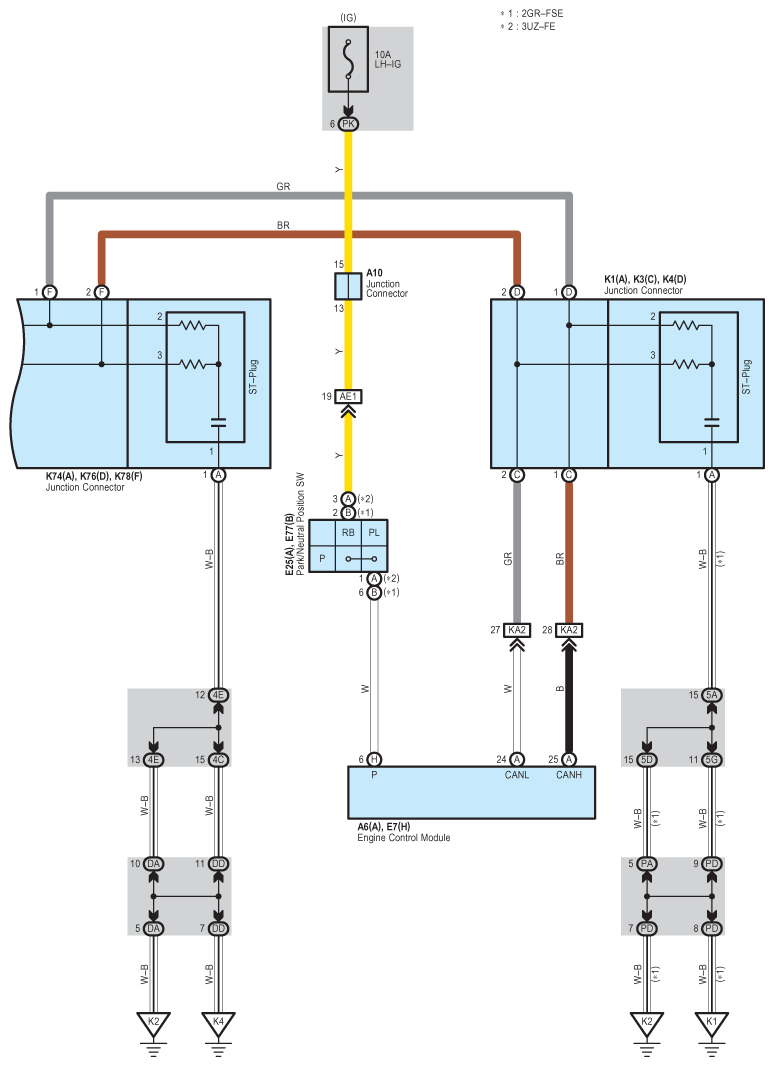

Fig 1: Shift Lock System Wiring Diagram (1 Of 3)
G08915892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

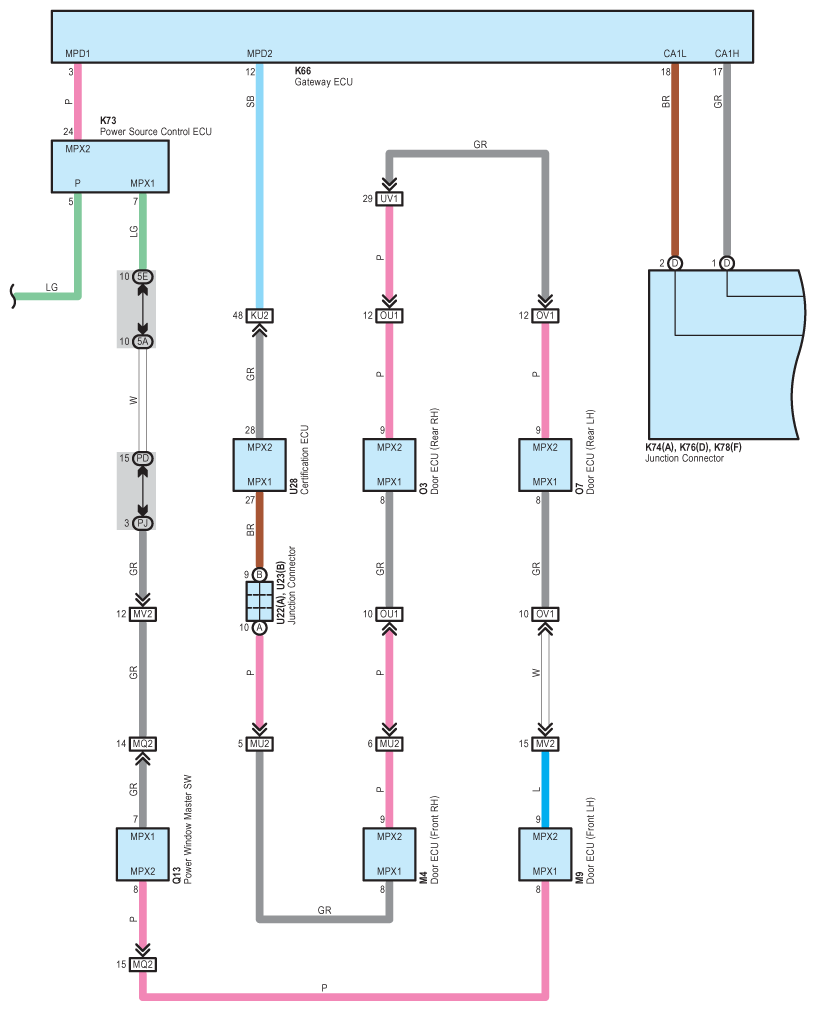

Fig 2: Shift Lock System Wiring Diagram (2 Of 3)
G08915893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

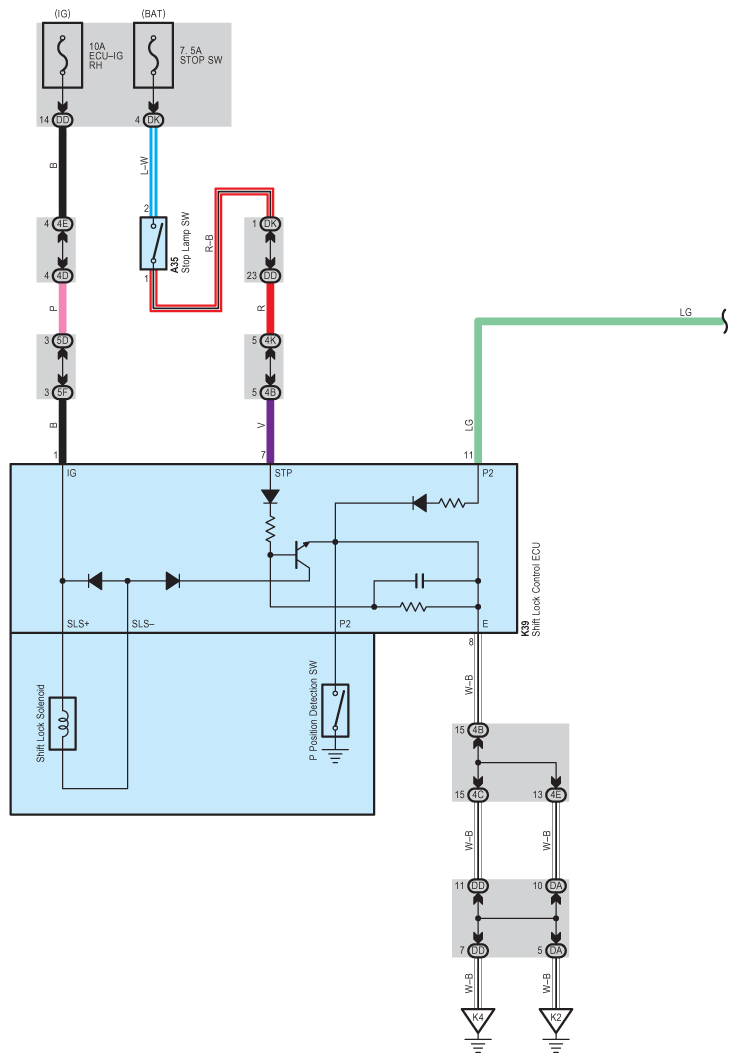

Fig 3: Shift Lock System Wiring Diagram (3 Of 3)
G08915894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
