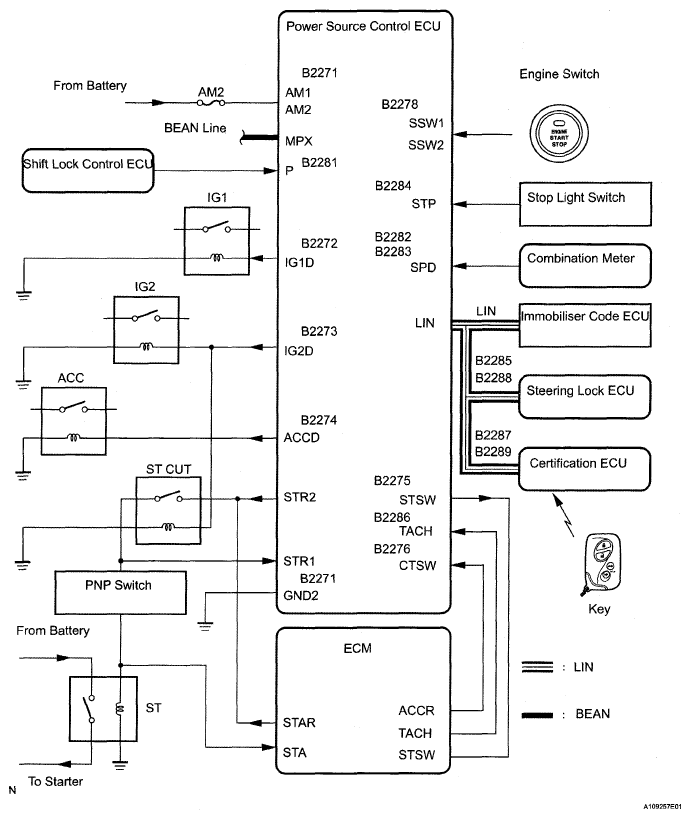

System Diagram: Notes
Communication table:
COMMUNICATION CHART
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| ECM | Power source control ECU | Engine rotation signal | CAN/BEAN |
| Meter ECU | Power source control ECU | Vehicle speed signal | BEAN/Local communication |
| Steering lock ECU | Power source control ECU | Steering lock/unlock signal | LIN/Local communication |
| Shift lock control ECU | Power source control ECU | Shift position signal | BEAN/Local communication |
| Certification ECU | Power source control ECU | LIN master signal | LIN |
| Power source control ECU | Immobiliser code ECU | ID required signal | LIN |
| Power source control ECU | Certification ECU | Key existence condition signal | BEAN |
