VVT Sensor: Components

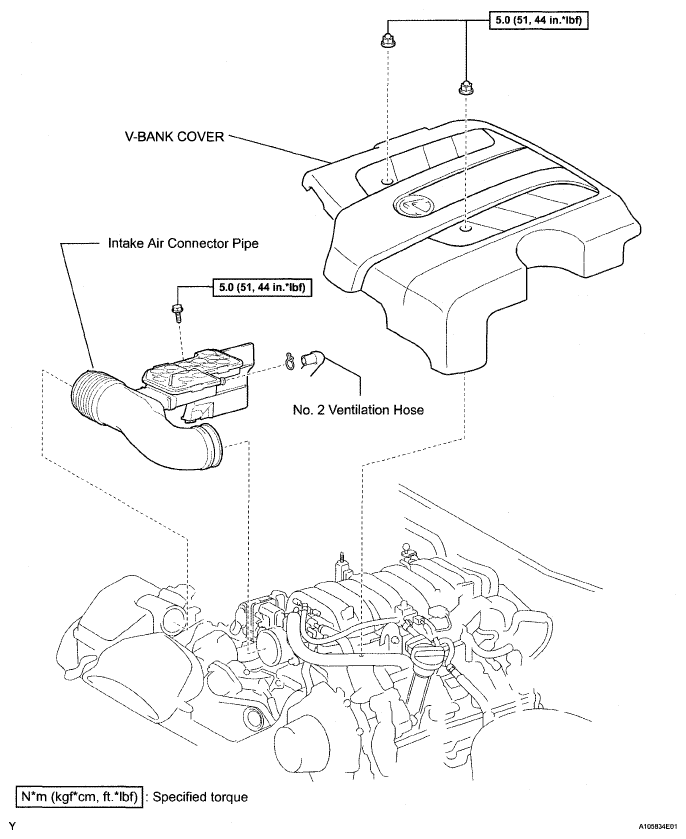

Fig 1: VVT Sensor Replacement Components With Torque Specifications (1 Of 3)
G05287705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

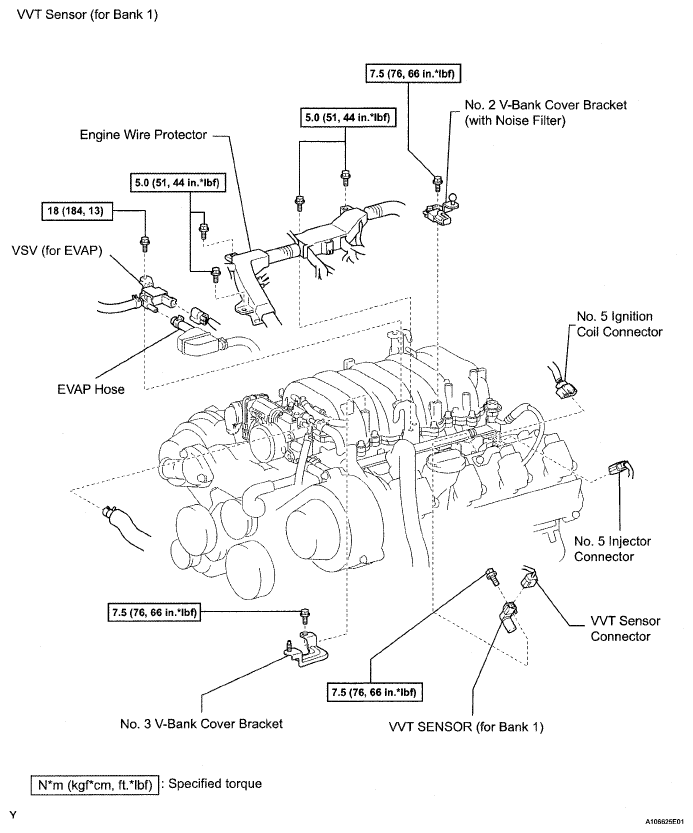

Fig 2: VVT Sensor Replacement Components With Torque Specifications (2 Of 3)
G05287706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

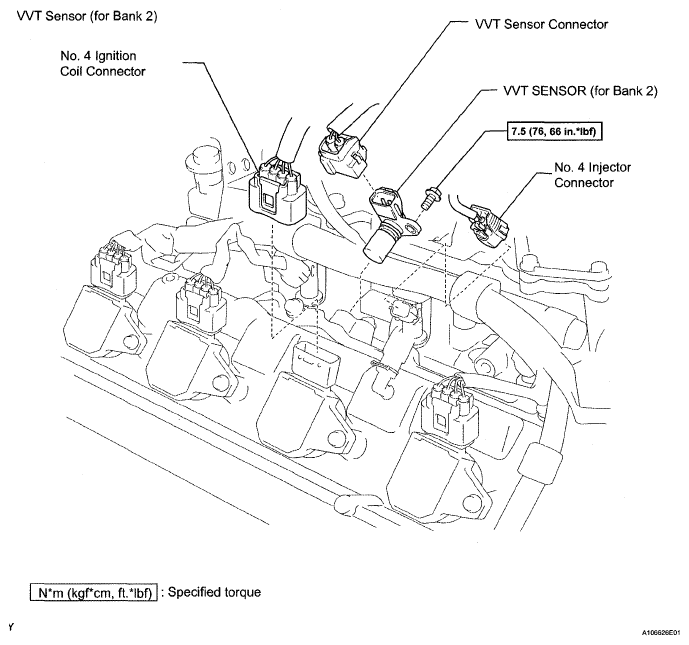

Fig 3: VVT Sensor Replacement Components With Torque Specifications (3 Of 3)
G05287707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
