Inspection Procedure

1. Disconnect the x2 display connector.
2. Disconnect the x1 receiver connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   x2-4 (VV-) - x1-7 (GND)	Below 1 Ω.
   x2-1 (VV+) - x1-3 (NTSC)	Below 1 Ω
   x2-4 (VV-) - Body ground	10 kΩ or higher
   x2-1 (VV+) - Body ground	10 kΩ or higher
   x1-8 (SLD) - Body ground	10 kΩ or higher

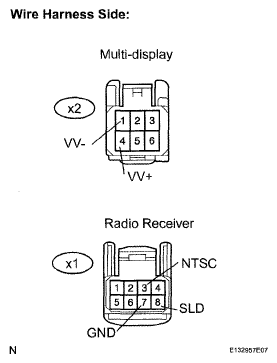

Fig 1: Identifying Multi-Display And Radio Receiver Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
