Inspection Procedure

1. Disconnect the RAD NO. 1 and RAD NO. 2 fuses from the engine room No. 1 junction block.
2. Disconnect the ACC fuse from the main body ECU RH.
3. Measure the resistance of the fuses.

   Standard resistance:

   Below 1 Ω

NG: REPLACE FUSE

OK: Go to next step

1. Disconnect the U29, U31 and U42 amplifier connectors.
2. Measure the resistance of the wire harness side connector.

   Standard resistance:

   for CD changer models

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   U42-2 (GND)- Body ground	Below 1 Ω
   U42-6 (GND2) - Body ground	Below 1 Ω

   for DVD changer models

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   U31-16 (GND) - Body ground	Below 1 Ω
   U31-15 (GND2) - Body ground	Below 1 Ω

3. Measure the voltage of the wire harness side connectors.

   Standard voltage:

   for CD changer models

   VOLTAGE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   U42-1 (+B) - Body ground	Always	10 to 14 V
   U42-3 (+B2) - Body ground	Always	10 to 14 V
   U29-12 (ACC) - Body ground	Engine switch on (ACC)	10 to 14 V

   for DVD changer models

   VOLTAGE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   U31-1 (+B) - Body ground	Always	10 to 14 V
   U31-10 (+B2) - Body ground	Always	10 to 14 V
   U29-12 (ACC) - Body ground	Engine switch on (ACC)	10 to 14 V

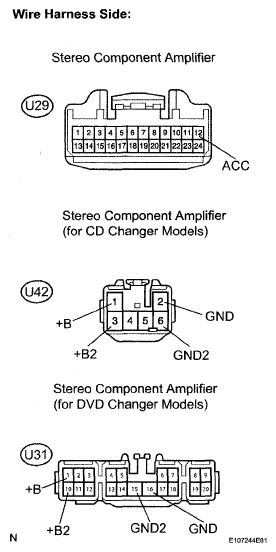

Fig 1: Identifying Stereo Component Amplifier Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
