Display Check Mode

HINT:

• This mode checks the color display on the multi-display.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be exactly the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE (See  DTC CHECK / CLEAR  )
2. DISPLAY CHECK
   1. Select "Display Check" from the "Diagnosis MENU" screen.
   Fig 1: Diagnosis Menu Screen - DISPLAY CHECK

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. COLOR BAR CHECK
   1. Select "Color Bar Check" from the "Display Check" screen.
      Fig 2: Display Check Screen - Color Bar Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a color bar from the "Color Bar Check Mode" screen.
   3. Check the display color.

      HINT:

      • The entire screen turns to the color or stripe selected.
      • Touch the display to return to the "Color Bar Check" screen.

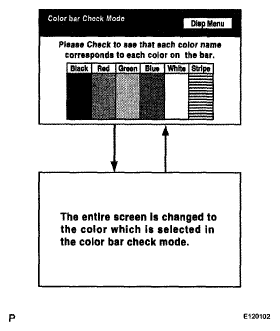

   Fig 3: Diagnostic Tool Display - Color Bar Check Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. TOUCH SWITCH CHECK
   1. Select "Touch Switch Check" from the "Display Check" screen.
      Fig 4: Diagnostic Tool Display - Touch Switch Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

      HINT:

      A "+" mark is displayed on the display is touched.

   Fig 5: Diagnostic Tool Display - Touch Switch Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. PANEL SWITCH CHECK
   1. Select "Panel Switch Check" from the "Display Check" screen.
      Fig 6: Diagnostic Tool Display - Panel Switch Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Operate each switch and check that the switch name and condition are correctly displayed.
   Fig 7: Diagnostic Tool Display - Panel Switch Check Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   SCREEN DESCRIPTION



   Display	Contents
   Push switch name/*1	Name of the pressed switch is displayed. If more than one switch is pressed, "MULTIPLE" is displayed.
   Rotary switch name/*2	Name of the rotary switch is displayed
   Rotary switch direction/*3	Direction of the rotary switch is displayed

6. VEHICLE SIGNAL CHECK
   1. Select "Vehicle Signal Check" from the "Display Check" screen.
      Fig 8: Diagnostic Tool Display - Vehicle Signal Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

      HINT:

      • Only conditions having inputs are displayed.
      • This screen is updated once per second when input signals to the vehicle are changed.
      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION  .
   Fig 9: Diagnostic Tool Display - Vehicle Signal Check Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
