Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

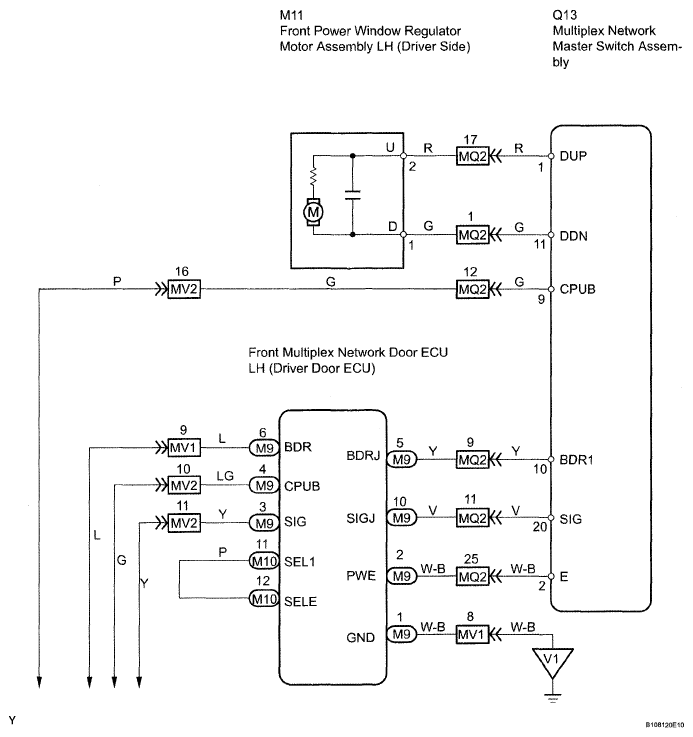

Fig 1: Driver Side Power Window Does Not Operate With Power Window Master Switch - Wiring Diagram (1 Of 2)
G05300163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

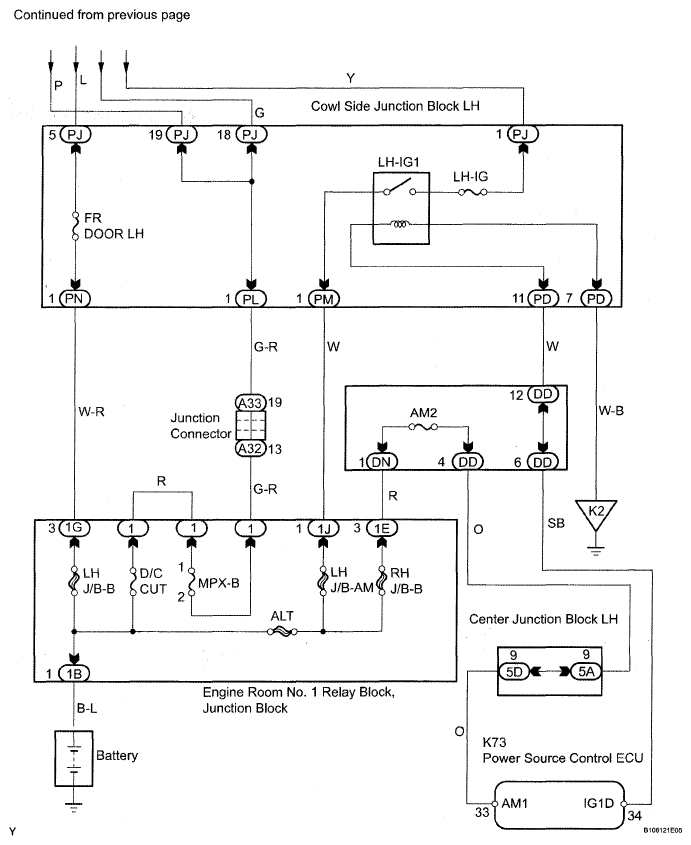

Fig 2: Driver Side Power Window Does Not Operate With Power Window Master Switch - Wiring Diagram (2 Of 2)
G05300164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
