Slip Indicator Light Remains ON: Wiring Diagram

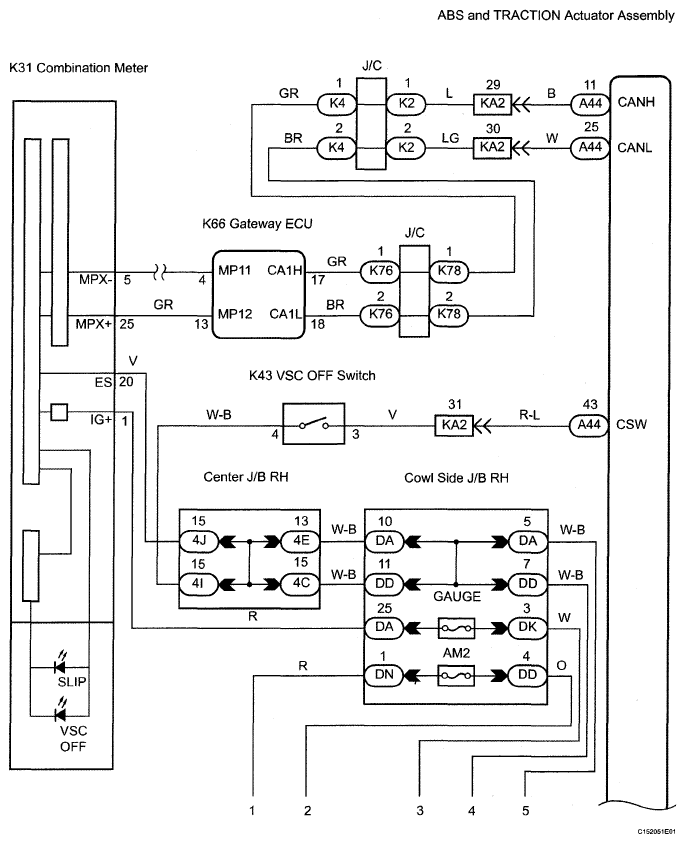

Fig 1: Slip Indicator Light - Wiring Diagram (1 Of 2)
G05296968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

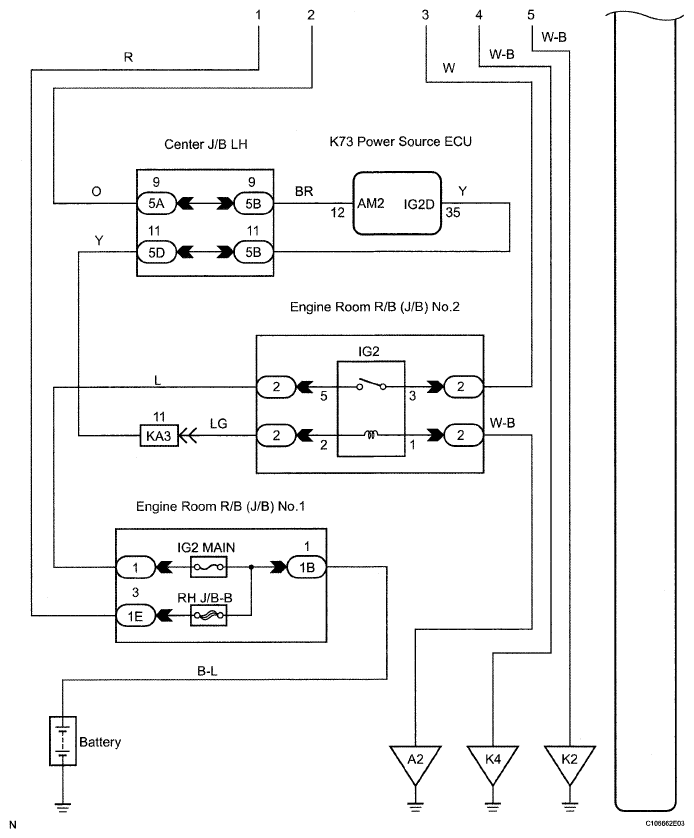

Fig 2: Slip Indicator Light - Wiring Diagram (2 Of 2)
G05296969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
