Steering Knuckle: Components

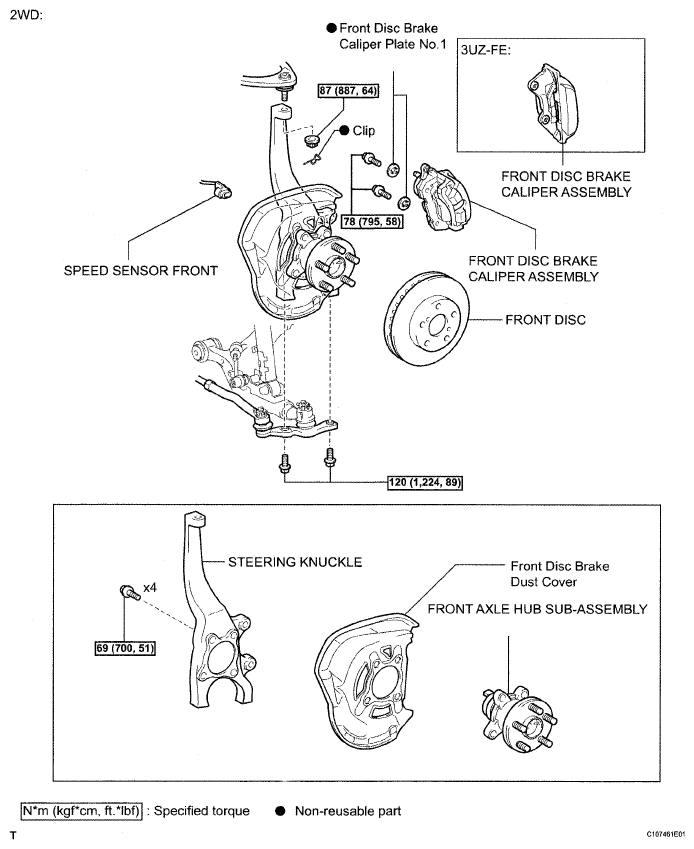

Fig 1: Steering Knuckle Replacement Components With Torque Specifications (1 Of 2)
G05296330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

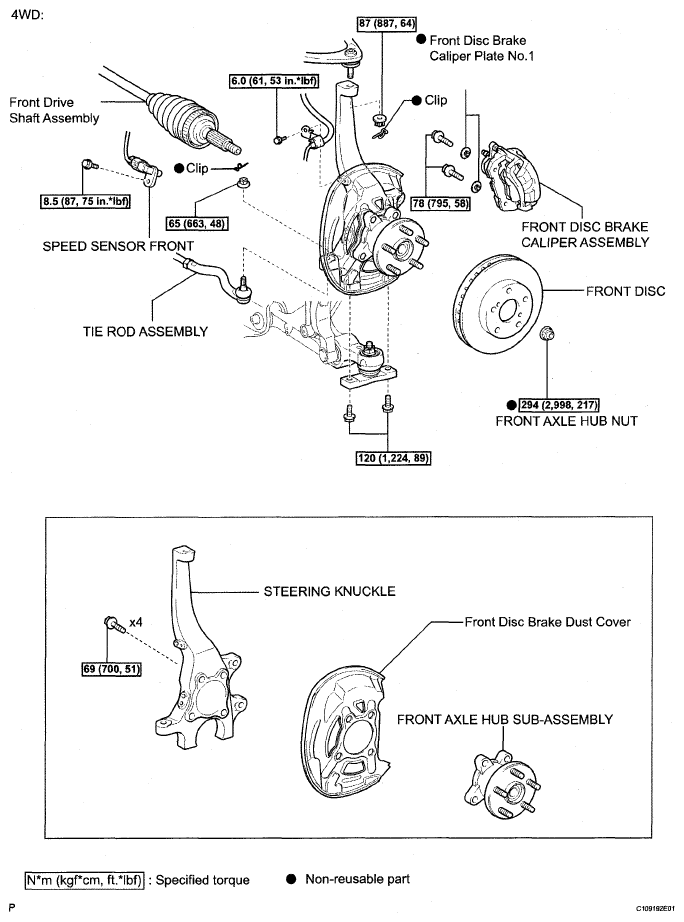

Fig 2: Steering Knuckle Replacement Components With Torque Specifications (2 Of 2)
G05296331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
