Dynamic Radar Cruise Control for 2GR-FSE: Notes

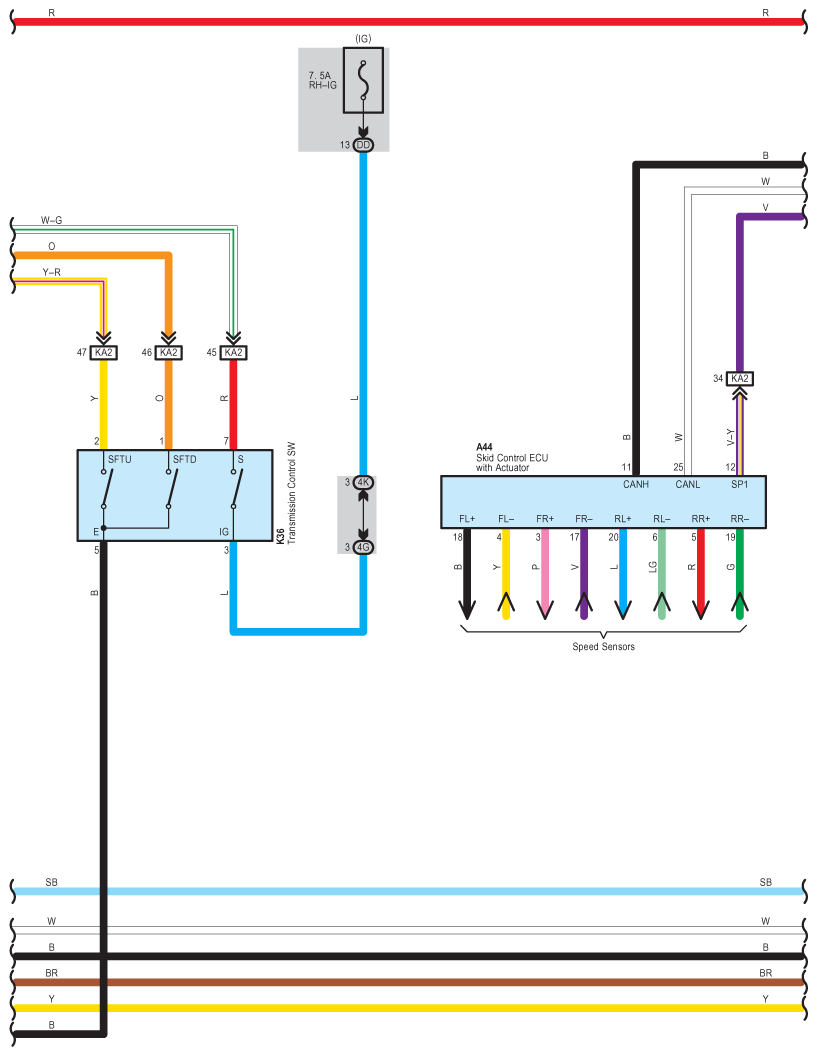

Fig 1: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

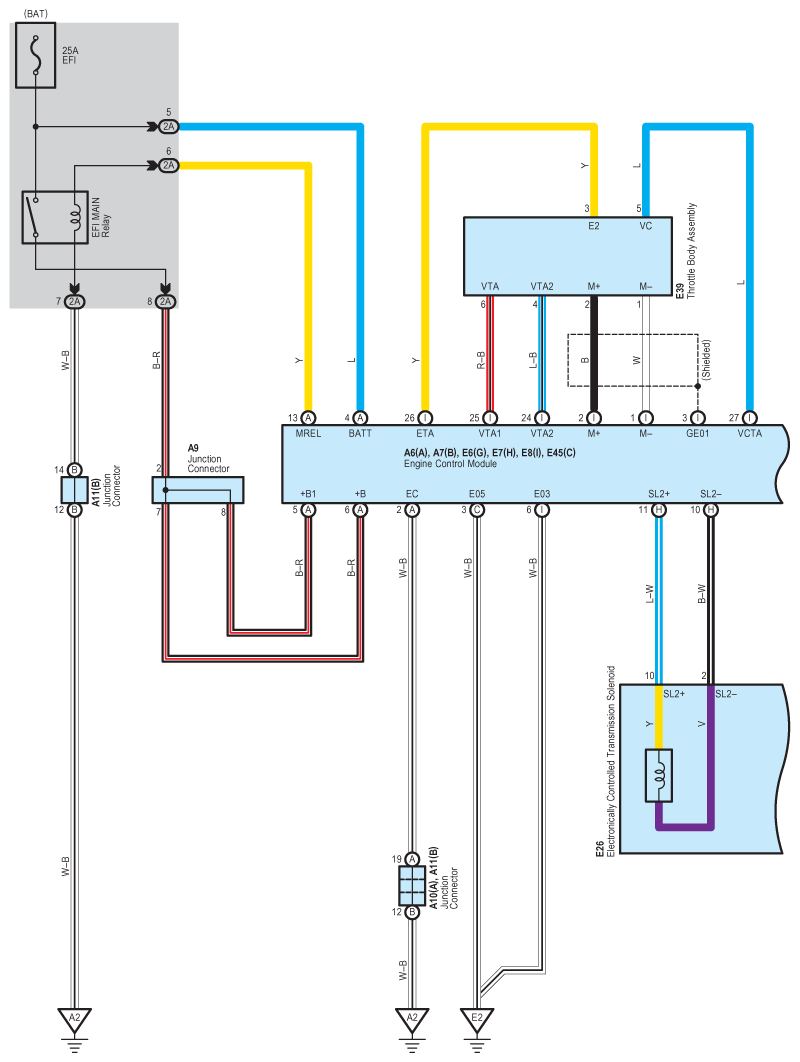

Fig 2: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

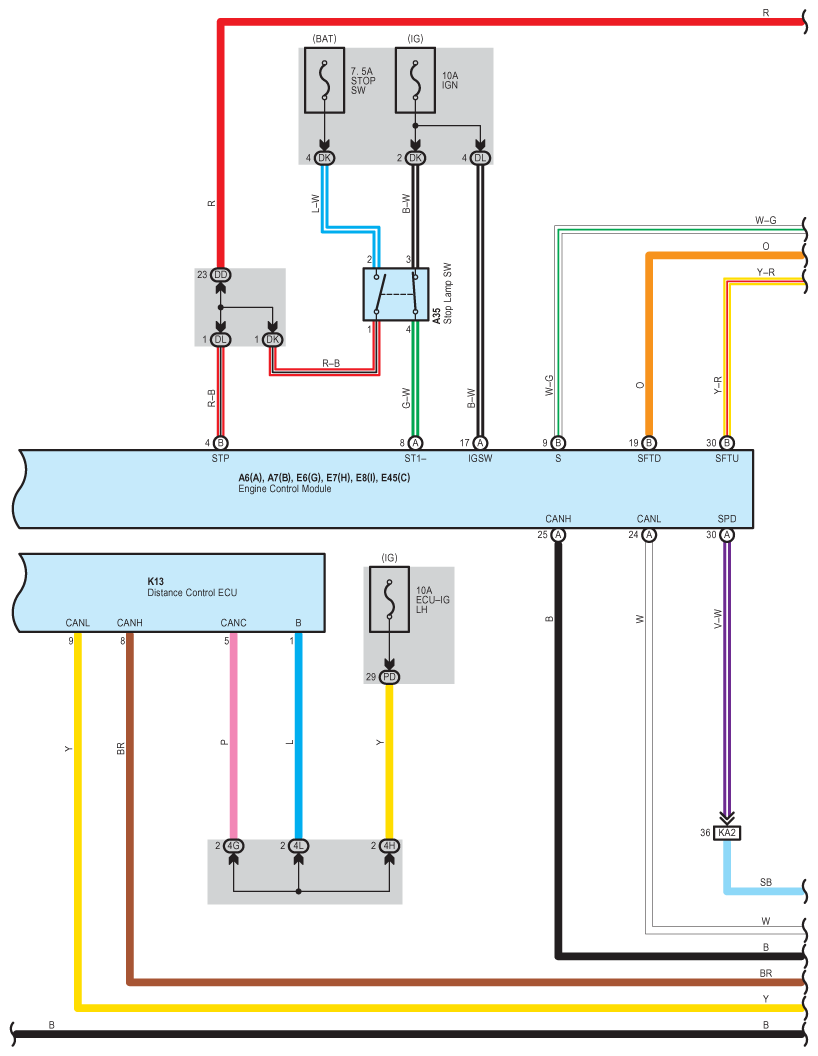

Fig 3: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

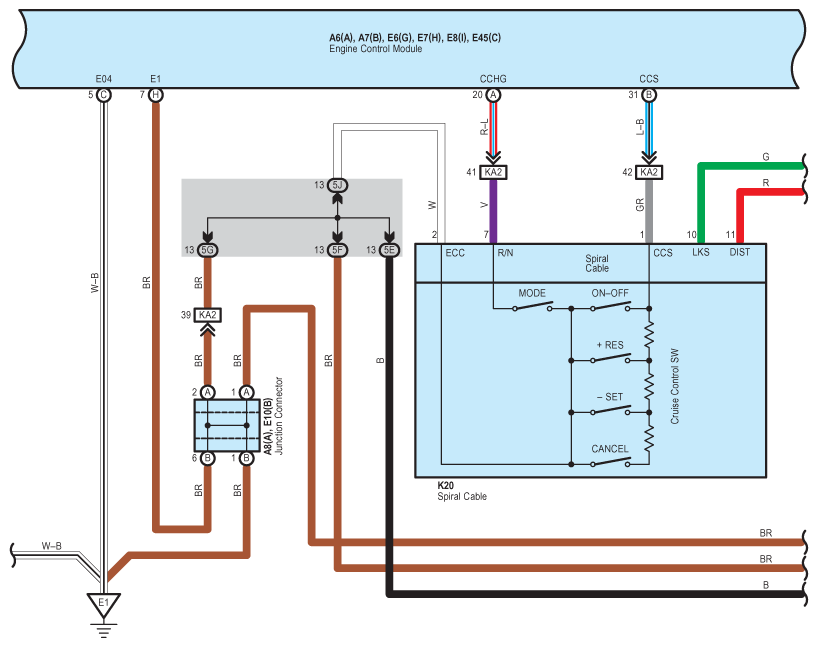

Fig 4: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

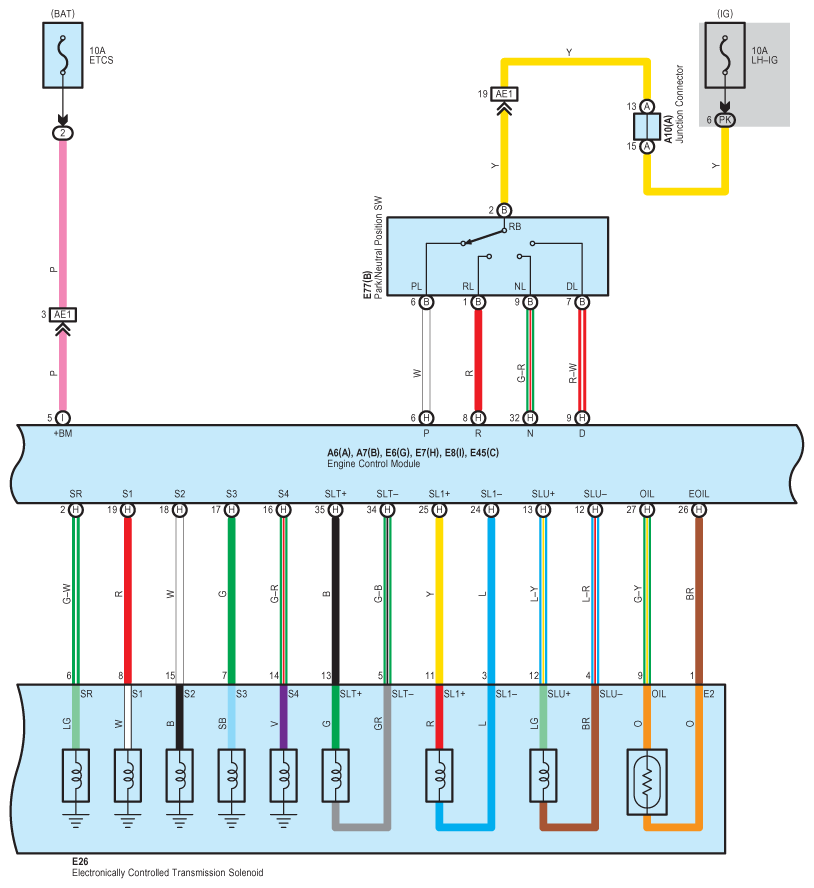

Fig 5: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

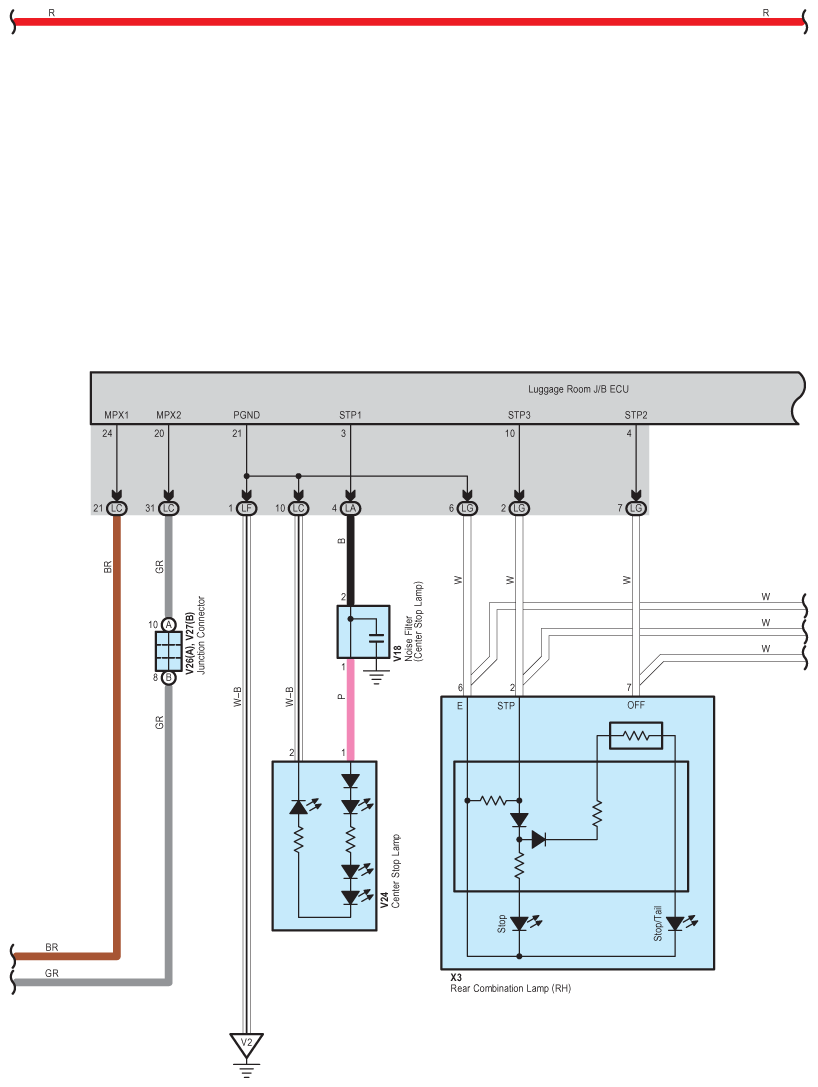

Fig 6: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

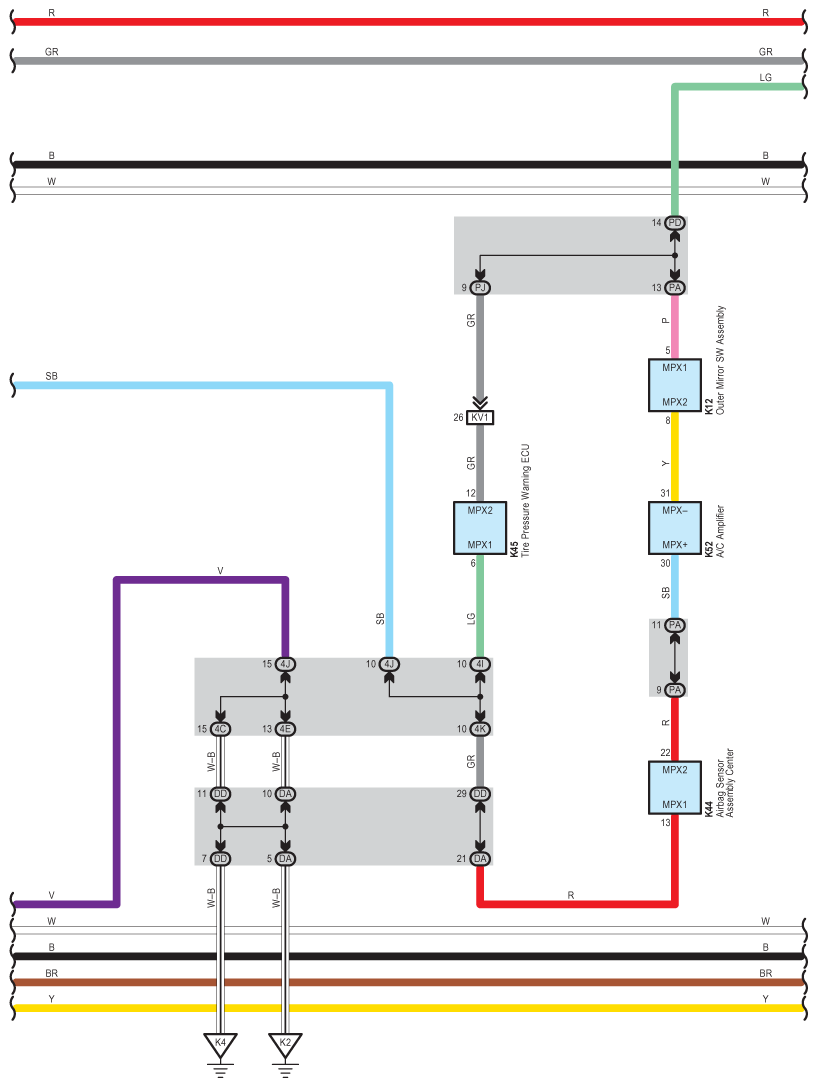

Fig 7: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

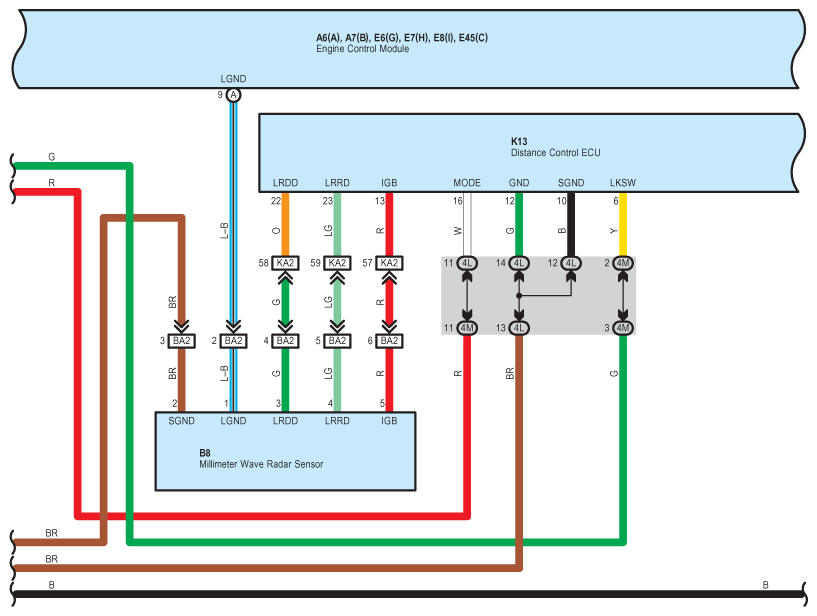

Fig 8: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

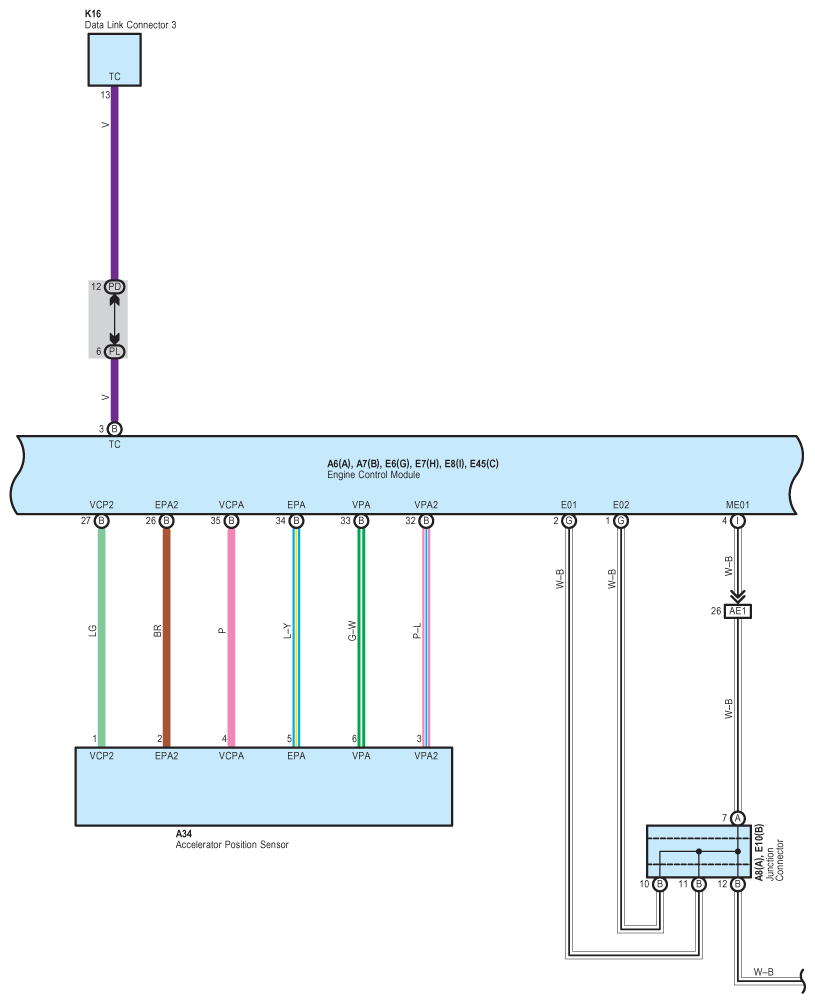

Fig 9: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

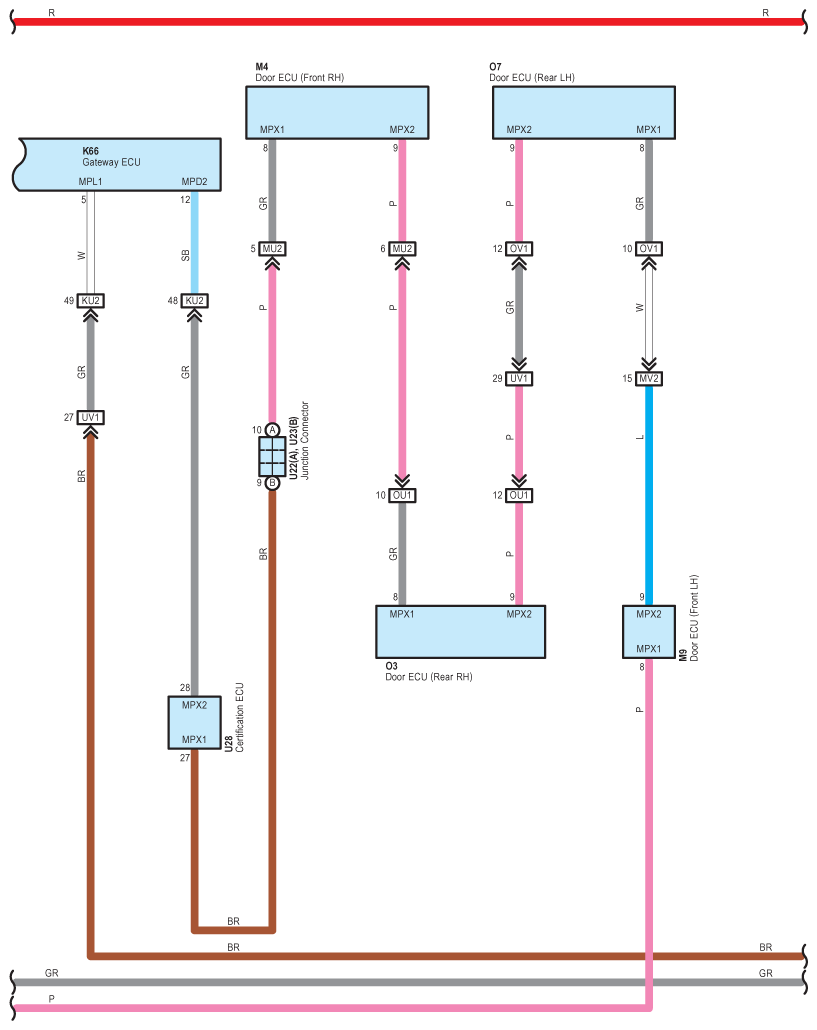

Fig 10: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

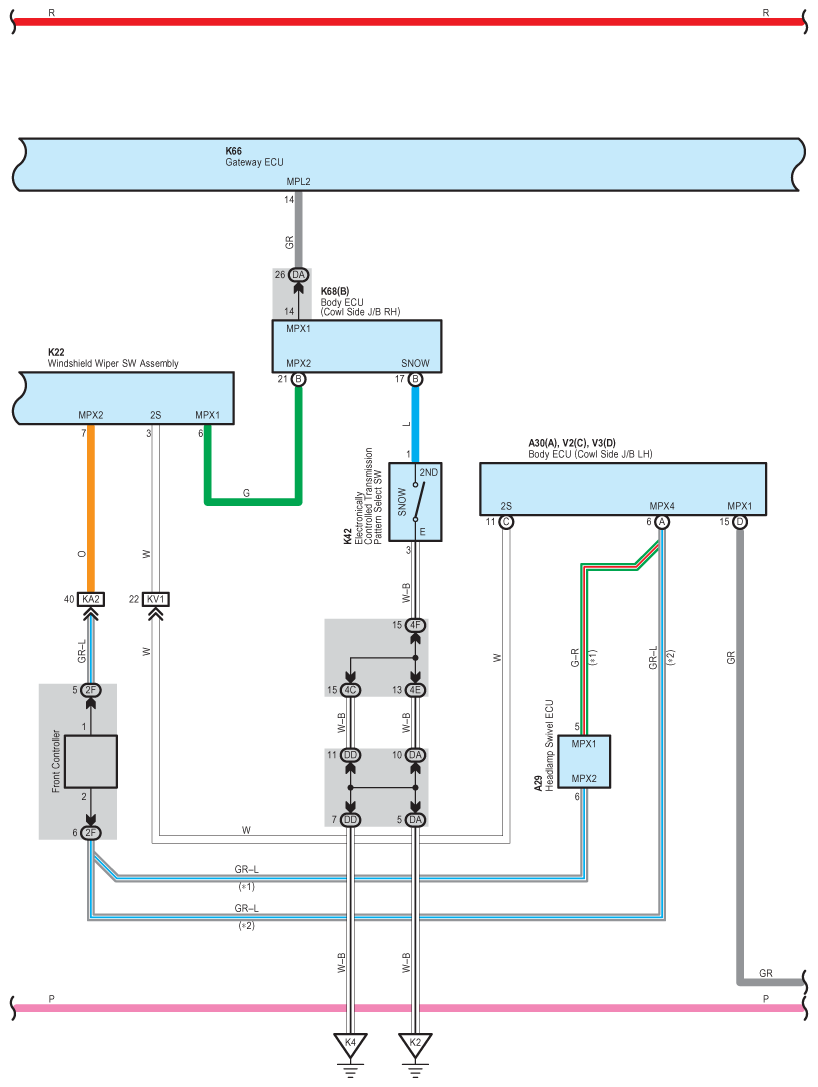

Fig 11: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (11 Of 15)

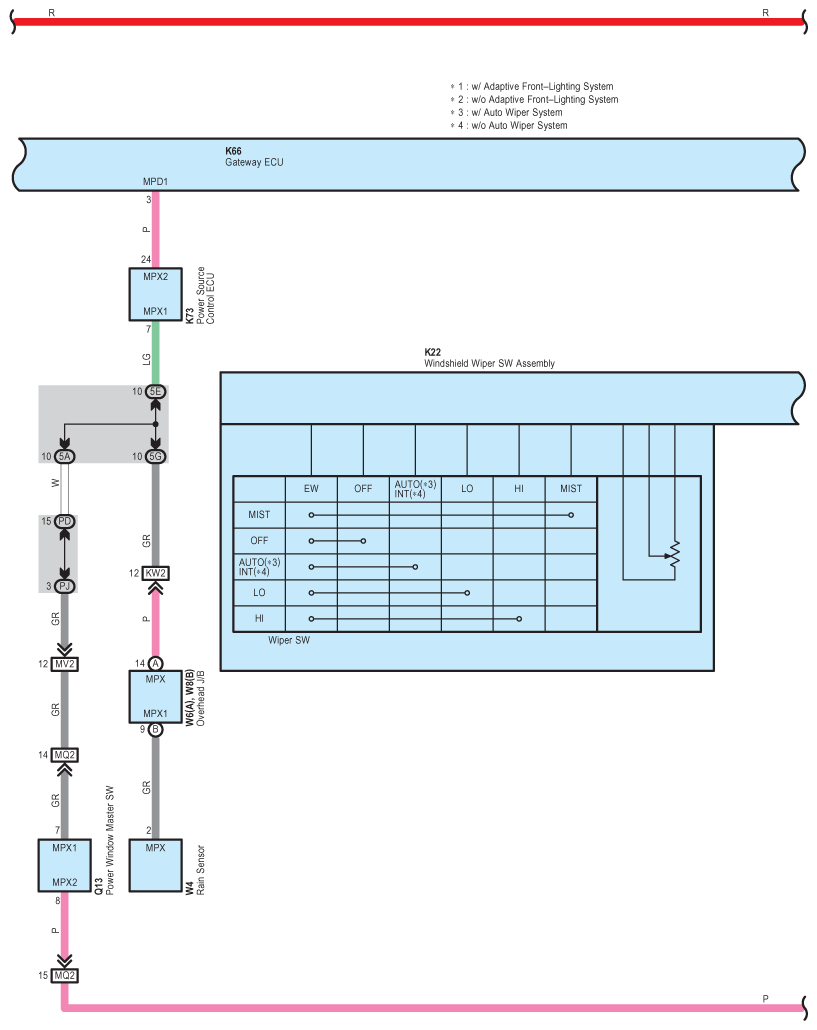

Fig 12: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (12 Of 15)

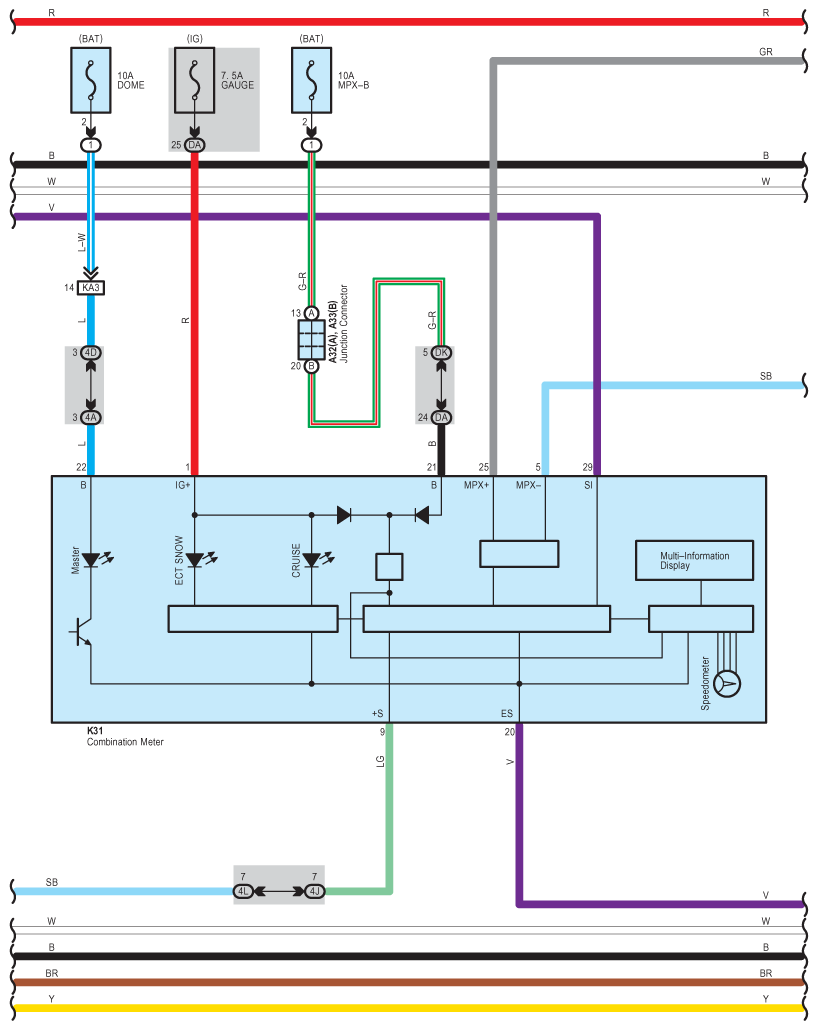

Fig 13: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (13 Of 15)

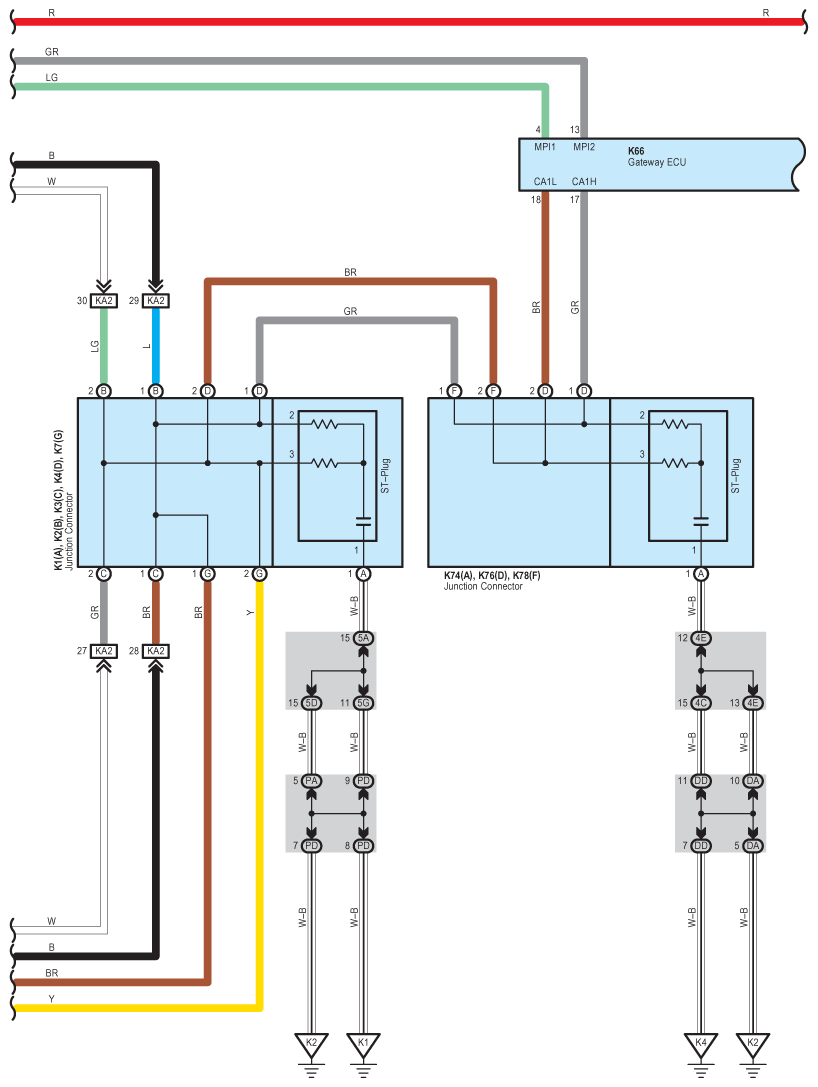

Fig 14: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (14 Of 15)

Fig 15: Dynamic Radar Cruise Control For 2GR-FSE System Wiring Diagram (15 Of 15)
