Electronic Modulated Suspension: Notes

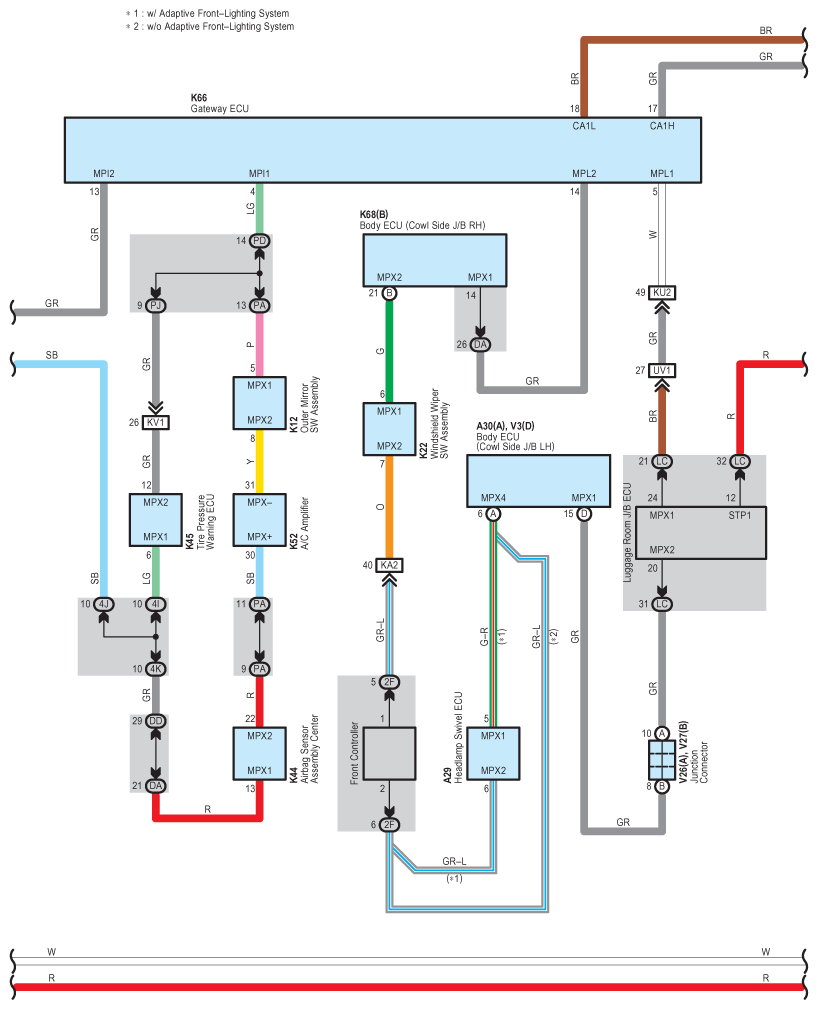

Fig 1: Electronic Modulated Suspension System Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

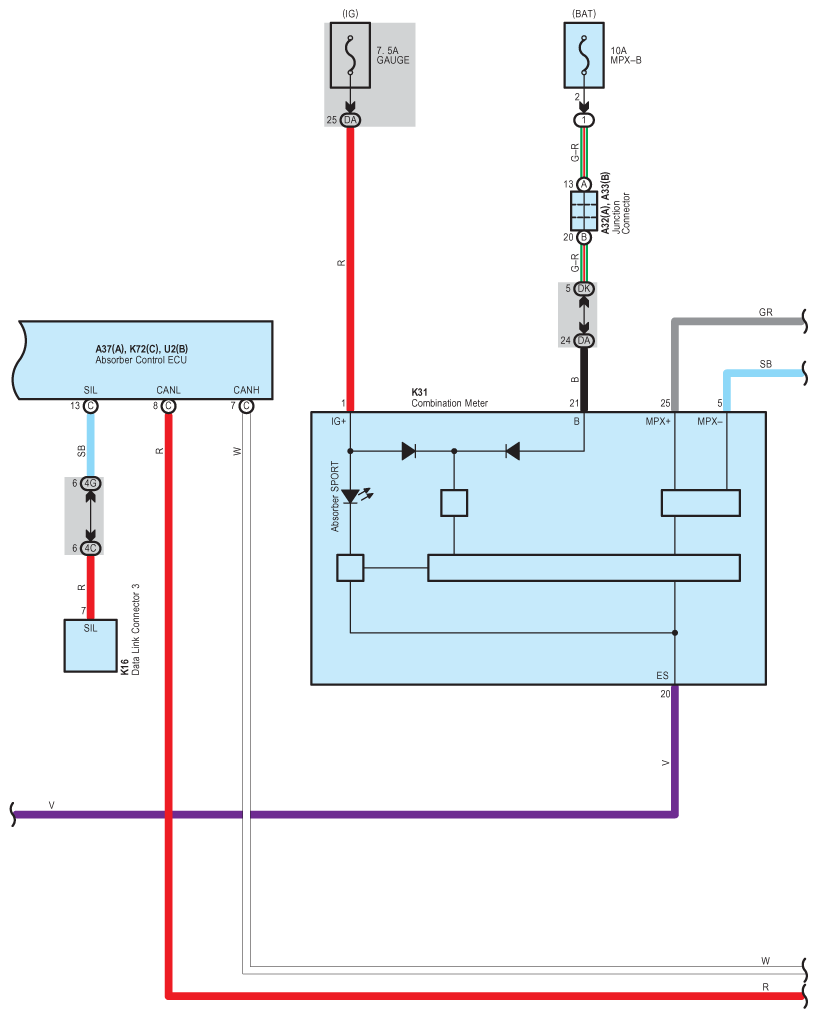

Fig 2: Electronic Modulated Suspension System Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

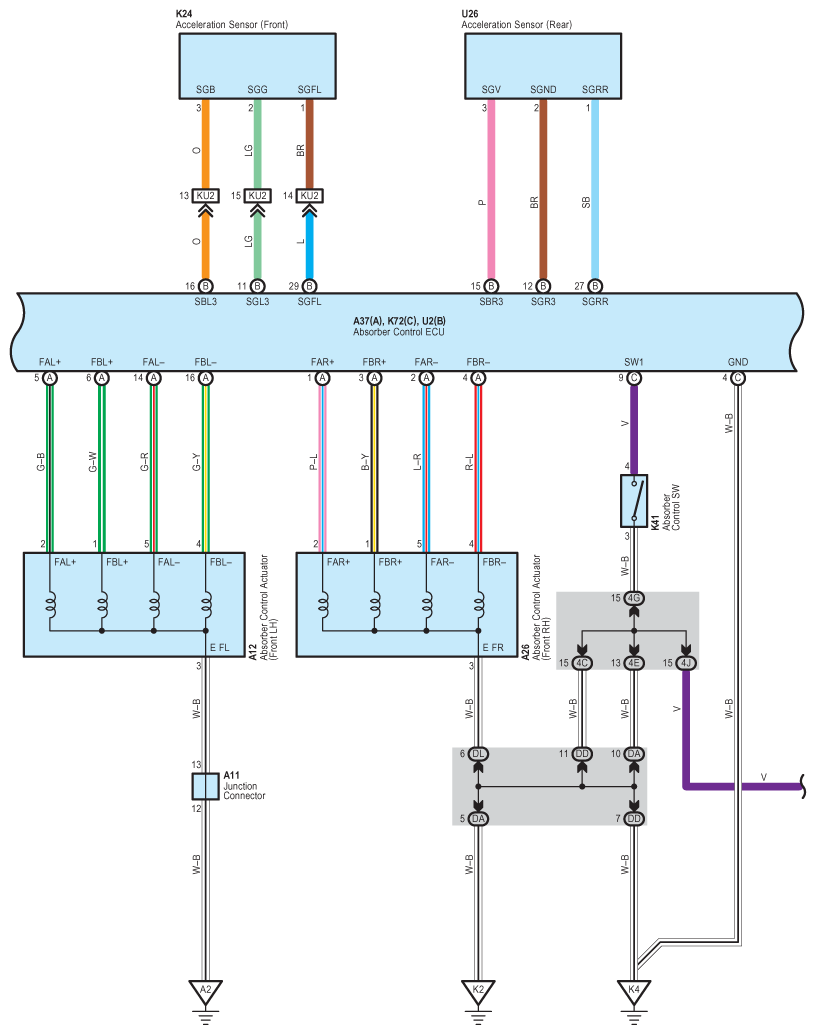

Fig 3: Electronic Modulated Suspension System Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

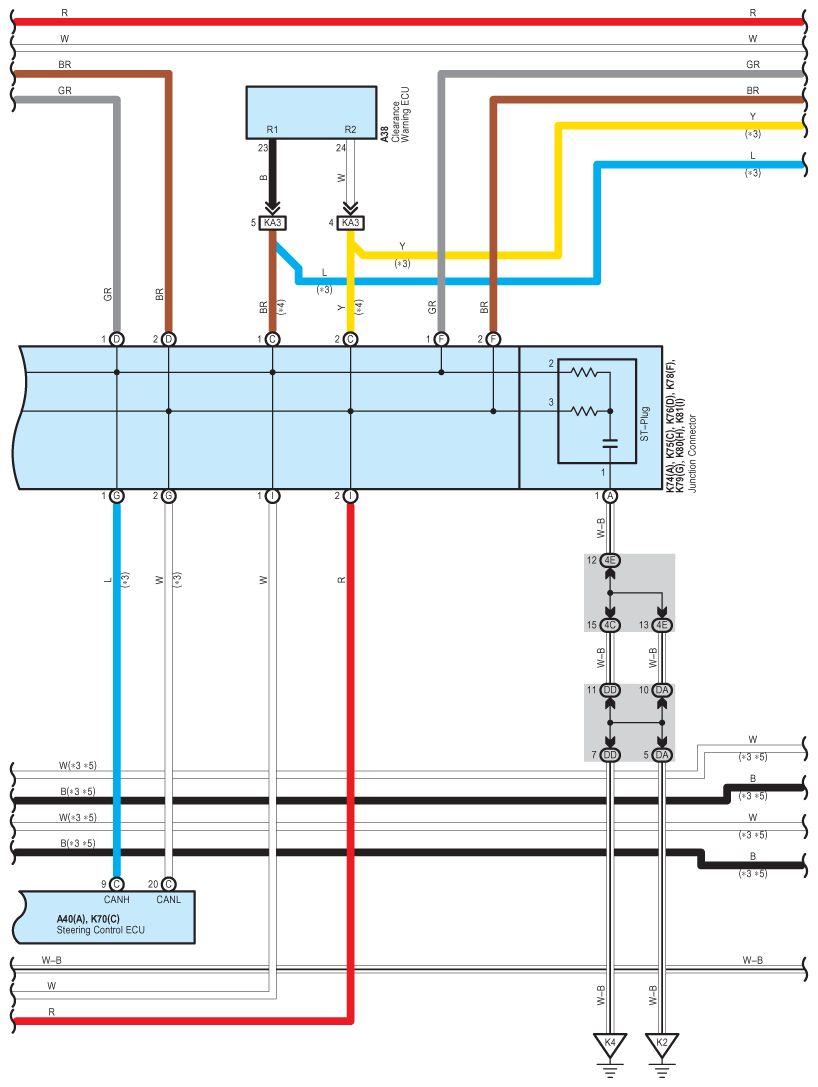

Fig 4: Electronic Modulated Suspension System Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

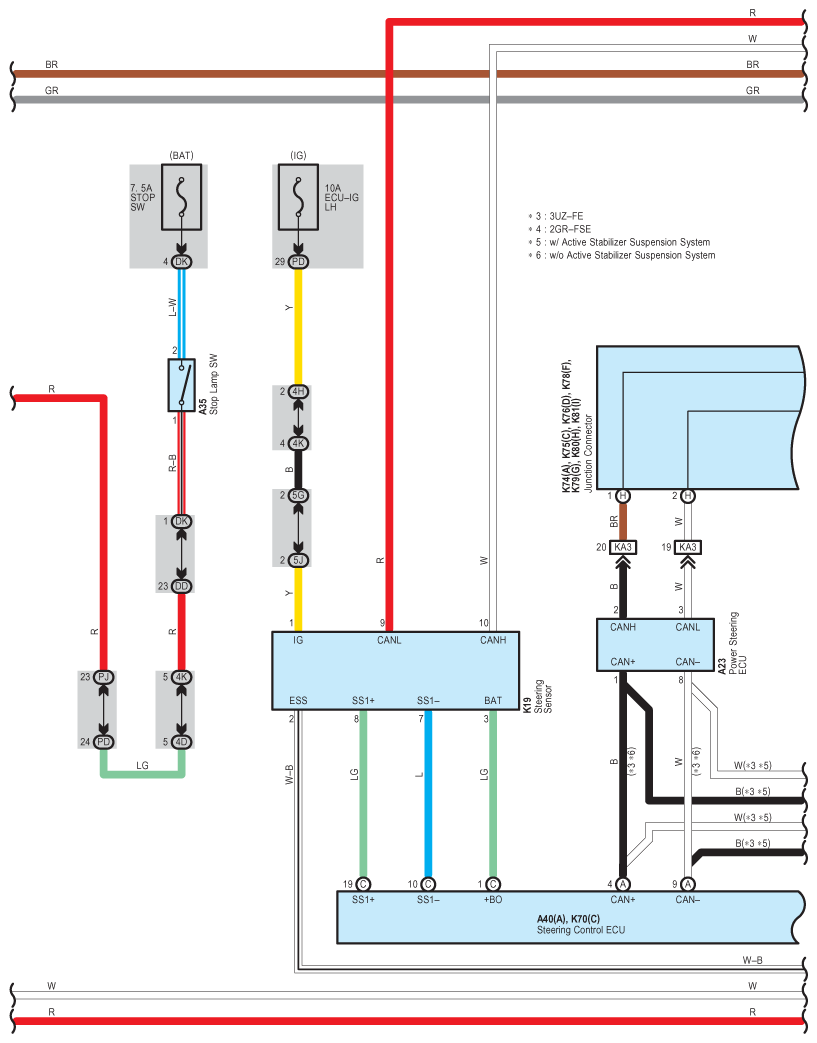

Fig 5: Electronic Modulated Suspension System Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

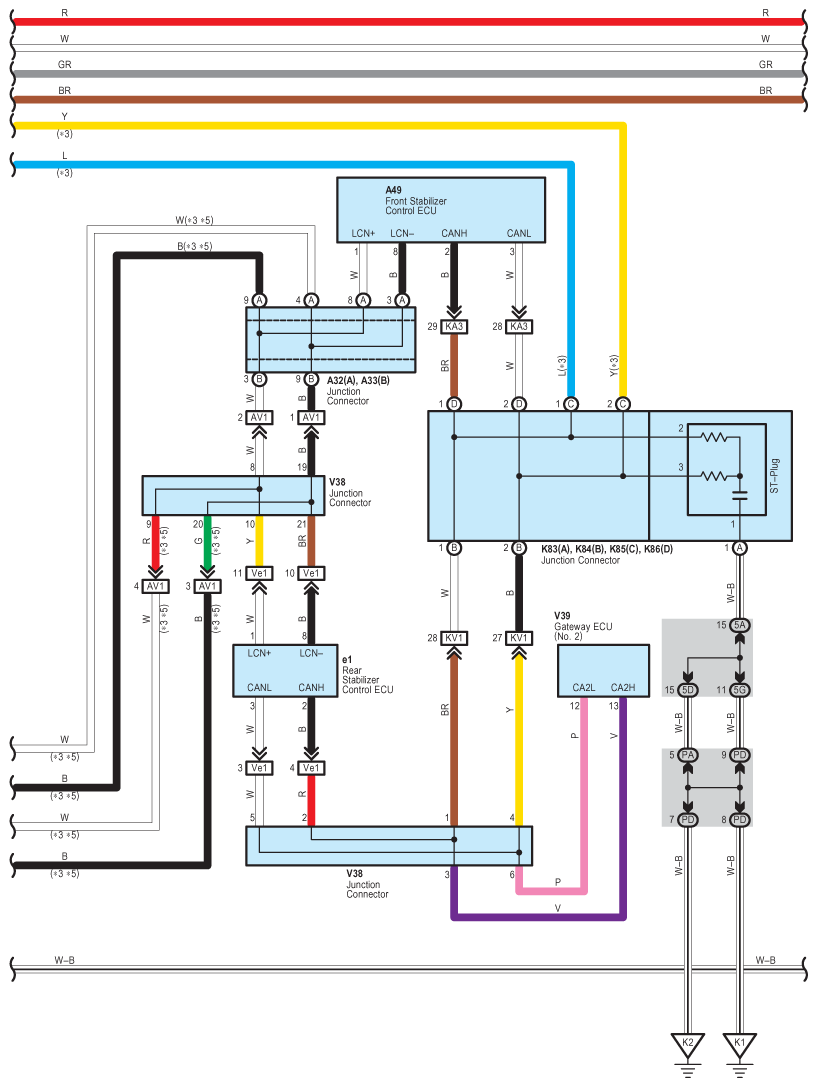

Fig 6: Electronic Modulated Suspension System Wiring Diagram (6 Of 8)

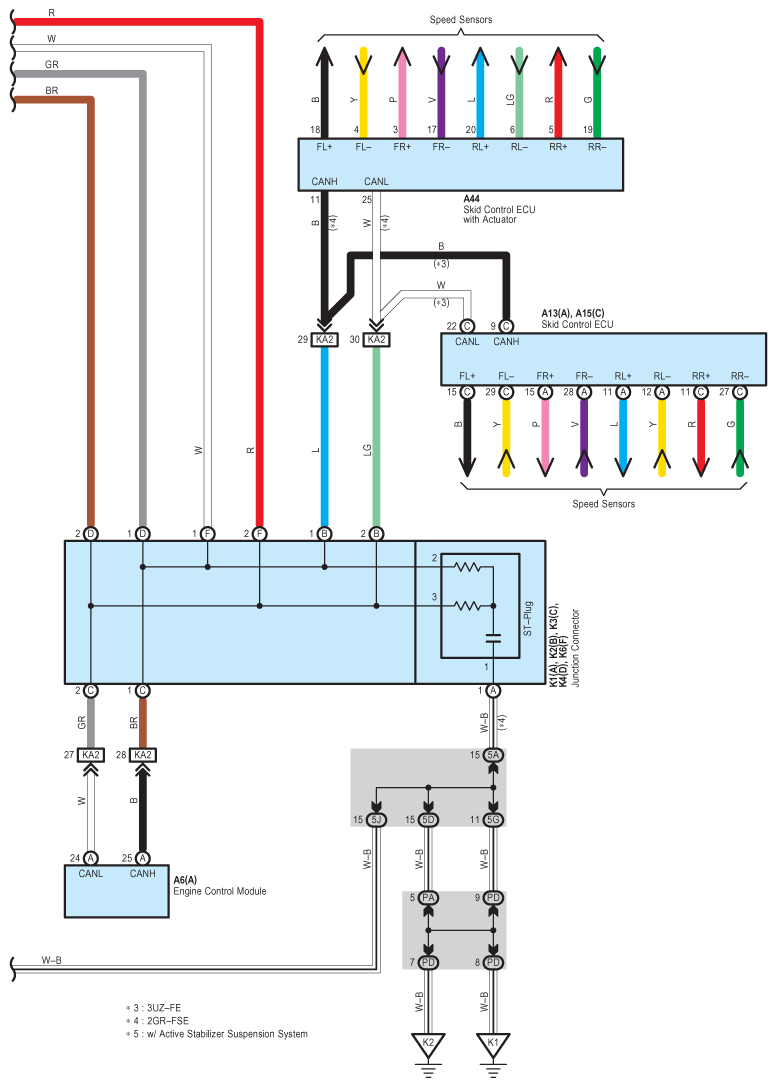

Fig 7: Electronic Modulated Suspension System Wiring Diagram (7 Of 8)

Fig 8: Electronic Modulated Suspension System Wiring Diagram (8 Of 8)
