Electronic Tension Reducer: Notes

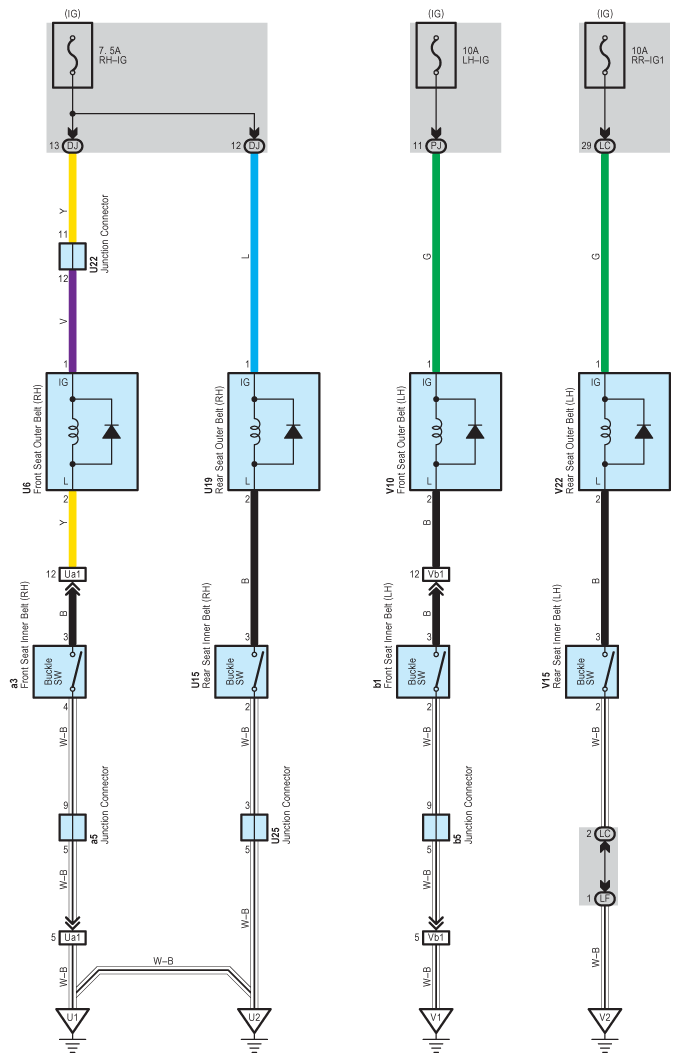

Fig 1: Electronic Tension Reducer System Wiring Diagram
G08915909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
