Mirror Heater: Notes

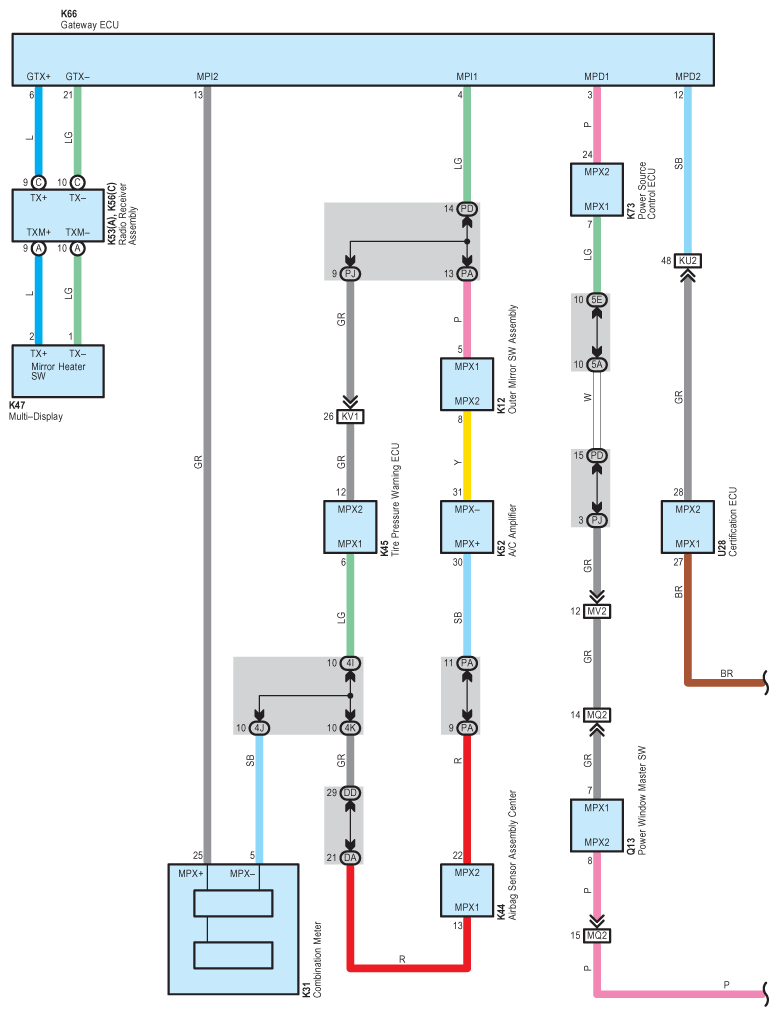

Fig 1: Mirror Heater System Wiring Diagram (1 Of 3)
G08915942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

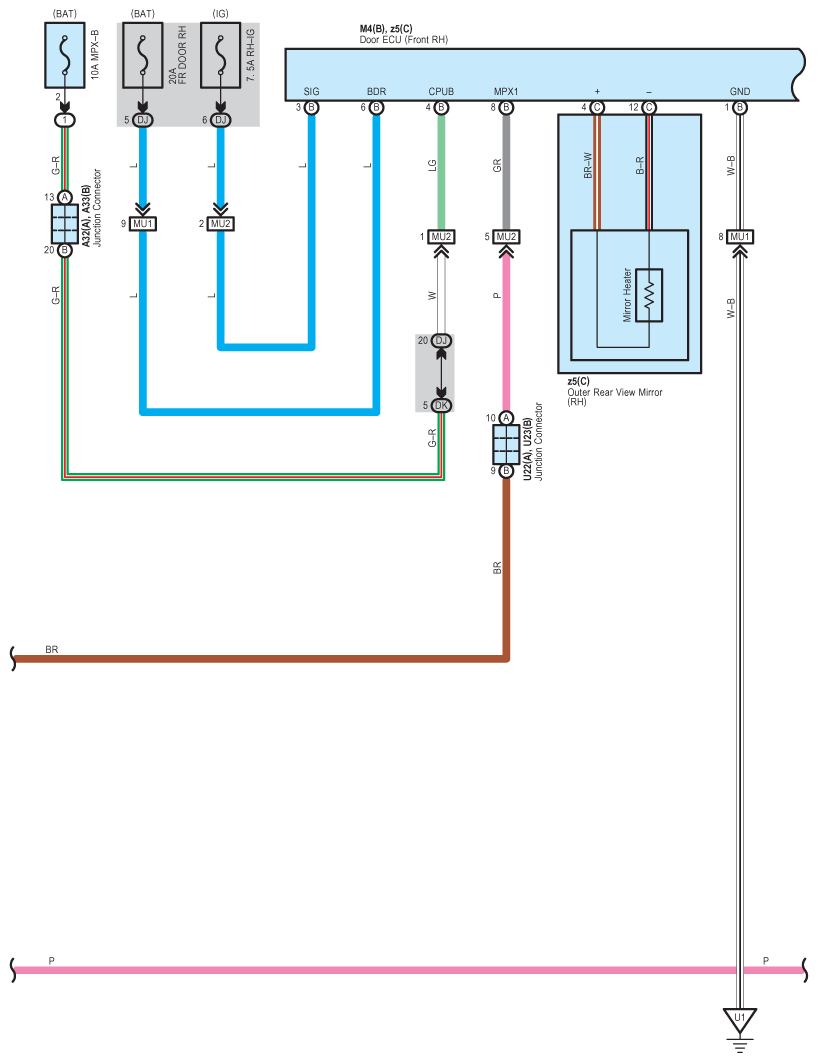

Fig 2: Mirror Heater System Wiring Diagram (2 Of 3)
G08915943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

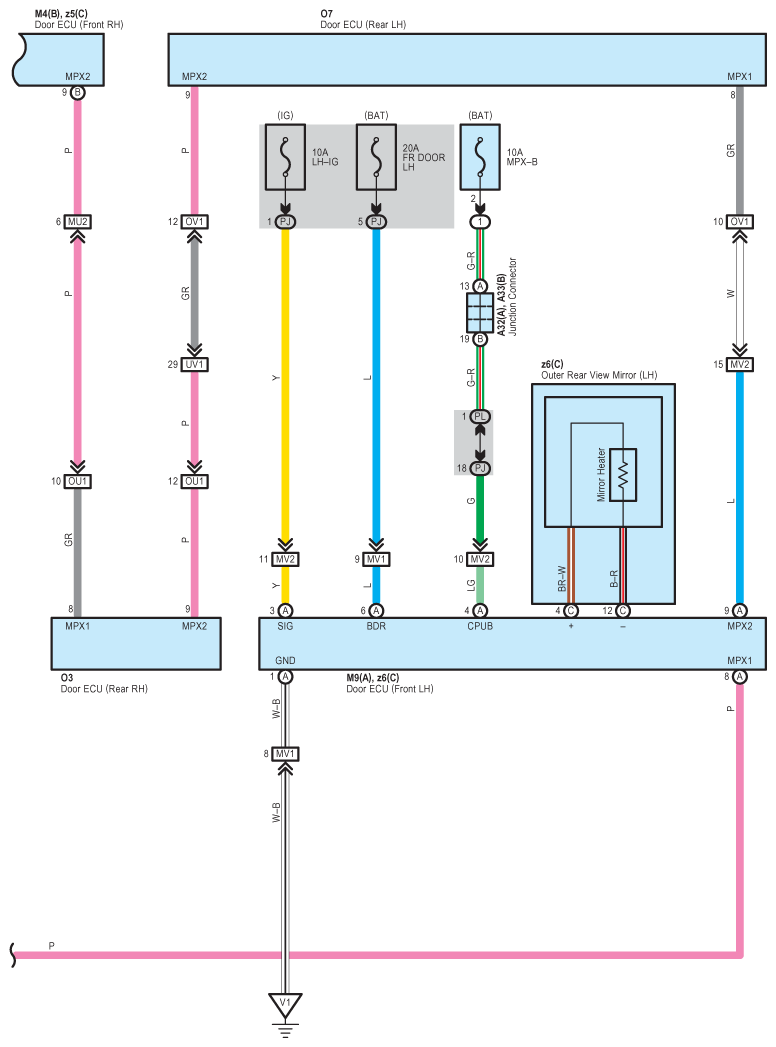

Fig 3: Mirror Heater System Wiring Diagram (3 Of 3)
G08915944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
