Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|

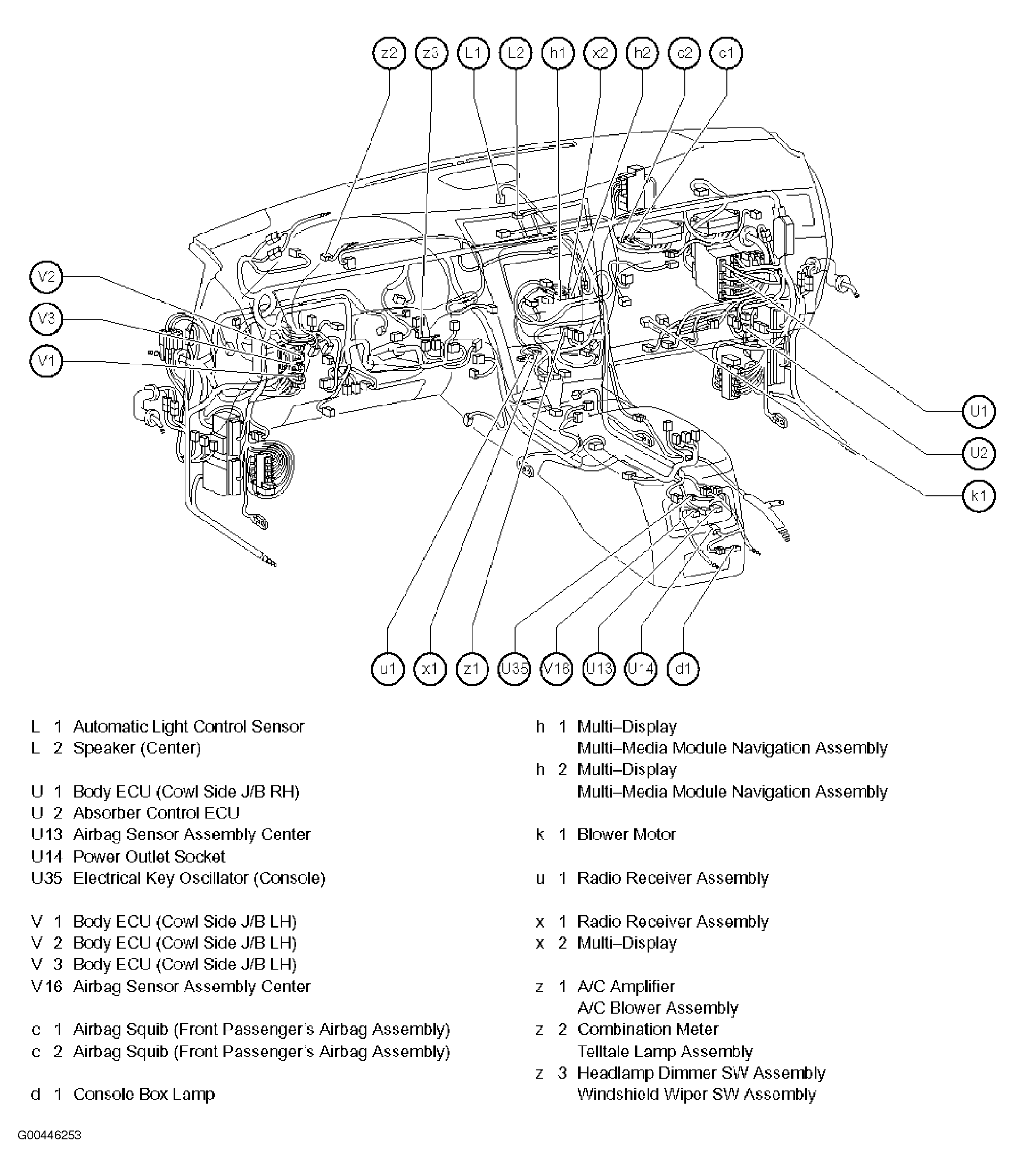

| A/C Blower Assembly | Behind right side of dash. See Figure. |
| Blower Motor | Under lower right side of dash. See Figure. |
| Brake Actuator | Left rear corner of engine compartment. See Figure. |

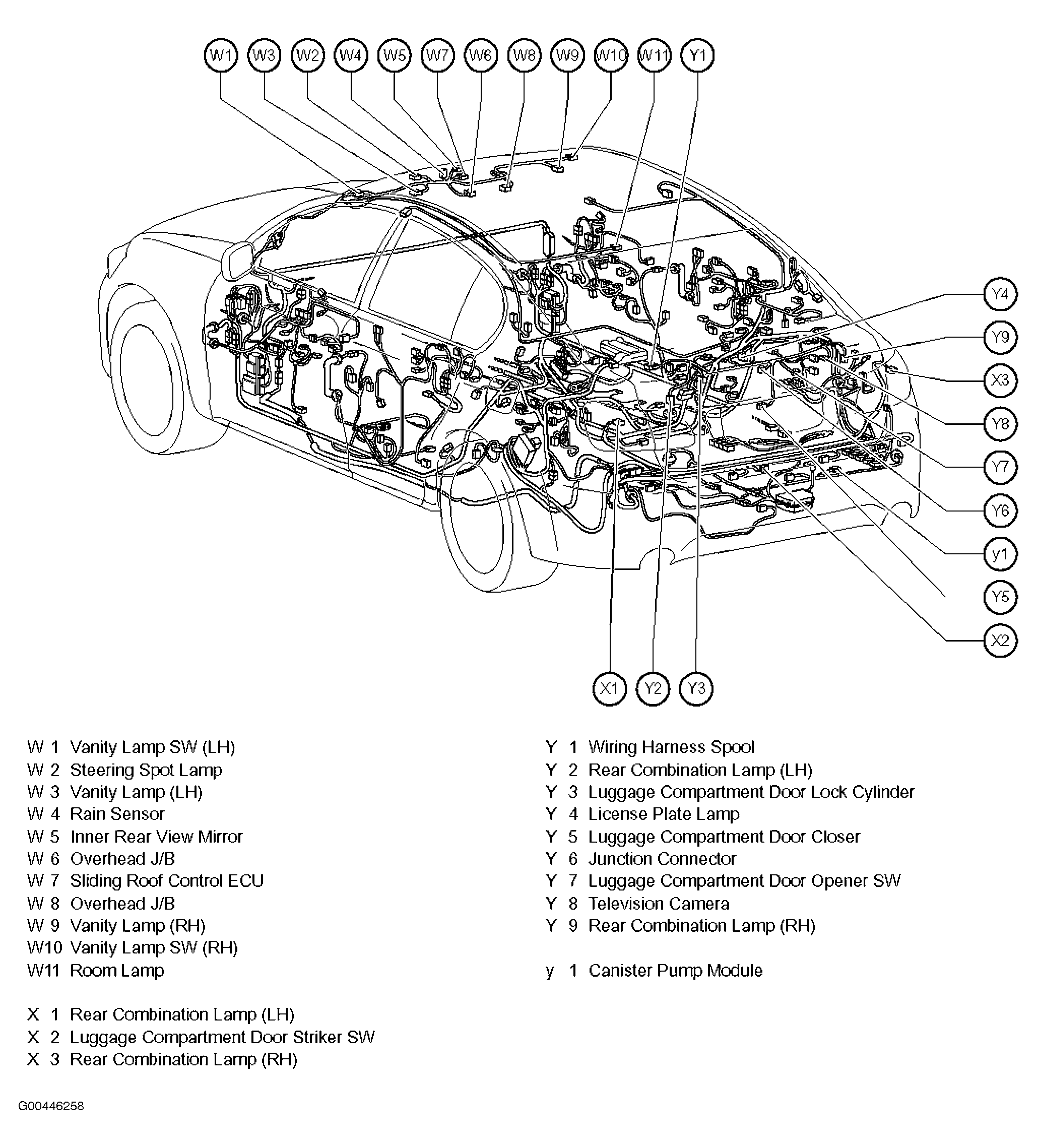

| Canister Pump Module | Center rear underside of vehicle. See Figure. |

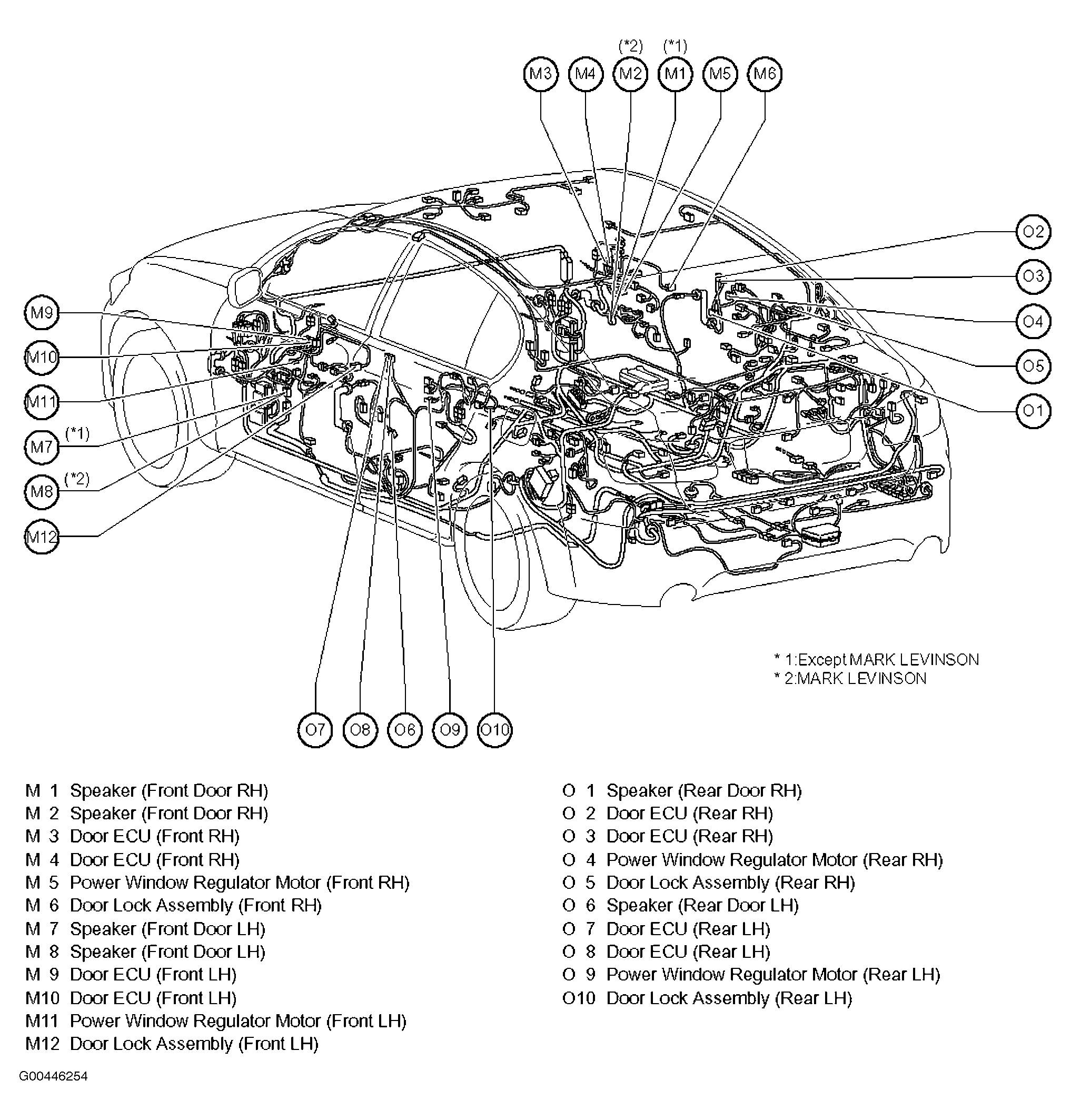

| Door Lock Assembly (Front LH) | Rear of left front door. See Figure. |
| Door Lock Assembly (Front RH) | Rear of right front door. See Figure. |
| Door Lock Assembly (Rear LH) | Rear of left rear door. See Figure. |
| Door Lock Assembly (Rear RH) | Rear of right rear door. See Figure. |
| Front Seat Outer Belt Motor (LH) | At base of left "B" pillar. See Figure. |
| Front Seat Outer Belt Motor (RH) | At base of right "B" pillar. See Figure. |

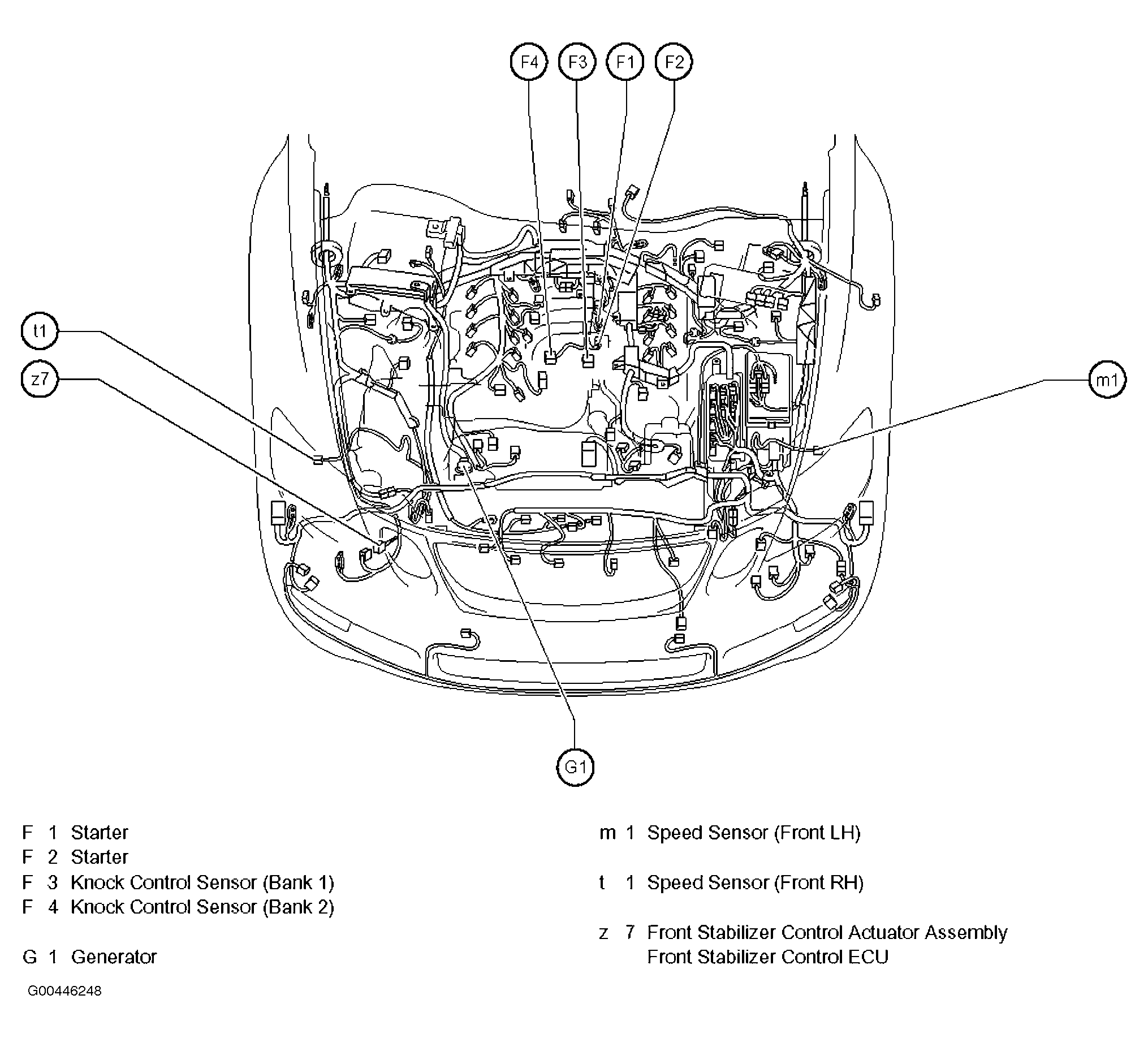

| Front Stabilizer Control Actuator Assembly | Right front corner of engine compartment. See Figure. |

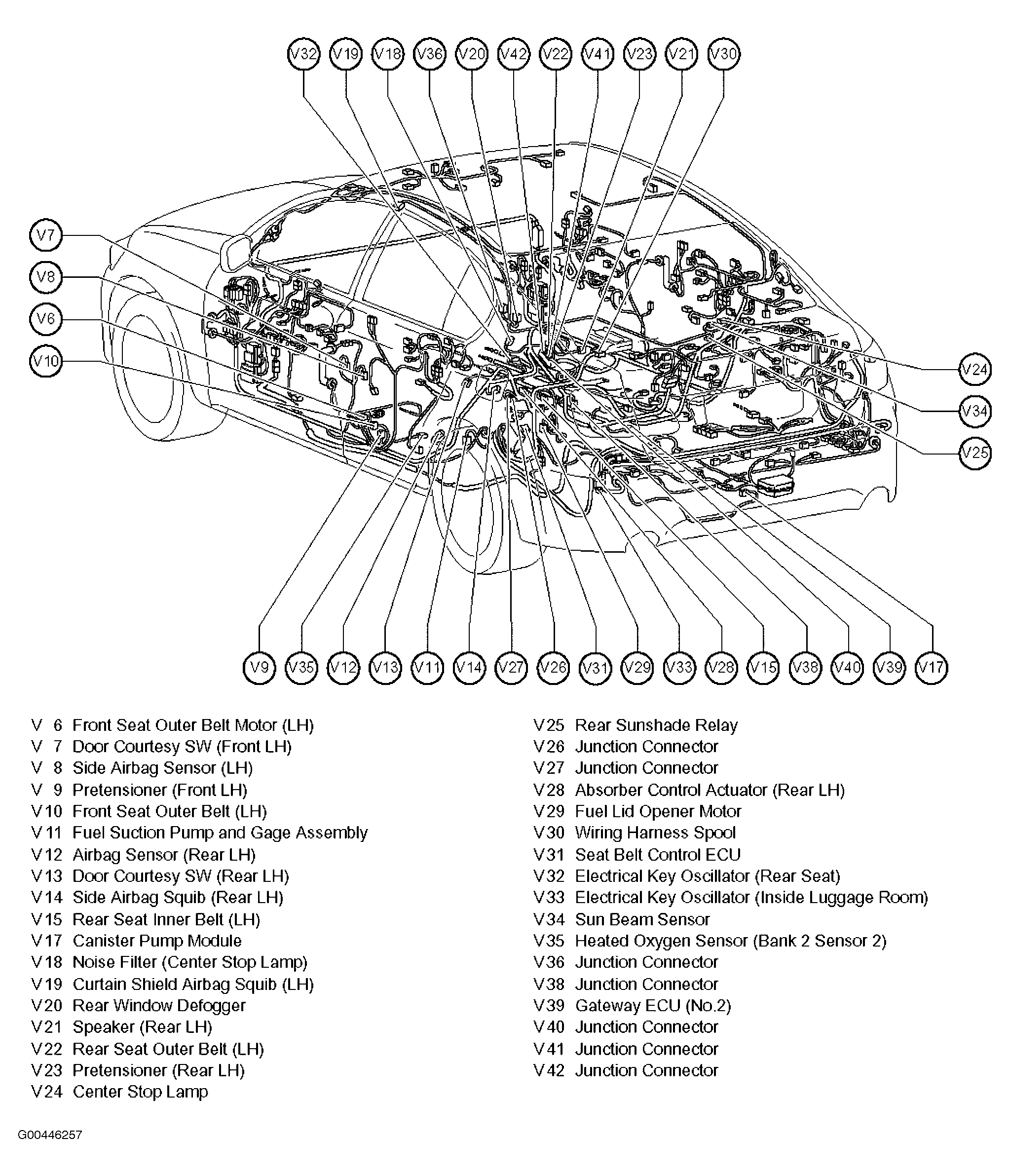

| Fuel Lid Opener Motor | At left side of luggage compartment. See Figure. |
| Fuel Suction Pump & Gage Assembly | In fuel tank. See Figure. |
| Headlamp Cleaner Motor (3.5L) | Below left headlight. See Figure. |
| Headlamp Cleaner Motor (4.3L) | Below left headlight. See Figure. |
| Outer Rear View Mirror (LH) | Front of left front door. See Figure. |
| Outer Rear View Mirror (RH) | Front of right front door. See Figure. |
| Power Seat Motor (Left Front Seat Front Vertical Control) | Under driver's seat. See Figure. |
| Power Seat Motor (Left Front Seat Lumbar Support) | In driver's seat. See Figure. |
| Power Seat Motor (Left Front Seat Rear Vertical Control) | Under driver's seat. See Figure. |
| Power Seat Motor (Left Front Seat Reclining Control) | Under driver's seat. See Figure. |
| Power Seat Motor (Left Front Seat Slide Control) | Under driver's seat. See Figure. |
| Power Seat Motor (Right Front Seat Front Vertical Control) | Under right front seat. See Figure. |
| Power Seat Motor (Right Front Seat Lumbar Support) | In right front seat. See Figure. |
| Power Seat Motor (Right Front Seat Rear Vertical Control) | In right front seat. See Figure. |
| Power Seat Motor (Right Front Seat Reclining Control) | In right front seat. See Figure. |
| Power Seat Motor (Right Front Seat Slide Control) | Under right front seat. See Figure. |
| Power Steering Motor (3.5L) | Front of engine compartment. See Figure. |
| Power Steering Motor (4.3L) | Front of engine compartment. See Figure. |
| Power Window Regulator Motor (Front LH) | In left front door. See Figure. |
| Power Window Regulator Motor (Front RH) | In right front door. See Figure. |
| Power Window Regulator Motor (Rear LH) | In left rear door. See Figure. |
| Power Window Regulator Motor (Rear RH) | In right rear door. See Figure. |
| Rear Stabilizer Control Actuator Assembly | Right side of luggage compartment. See Figure. |
| Seat Climate Control Blower (Left Front Seat Back) | In driver's seat back. See Figure. |
| Seat Climate Control Blower (Left Front Seat Cushion) | Under driver's seat. See Figure. |
| Seat Climate Control Blower (Right Front Seat Back) | In front passenger's seat back. See Figure. |
| Seat Climate Control Blower (Right Front Seat Cushion) | Under front passenger's seat. See Figure. |

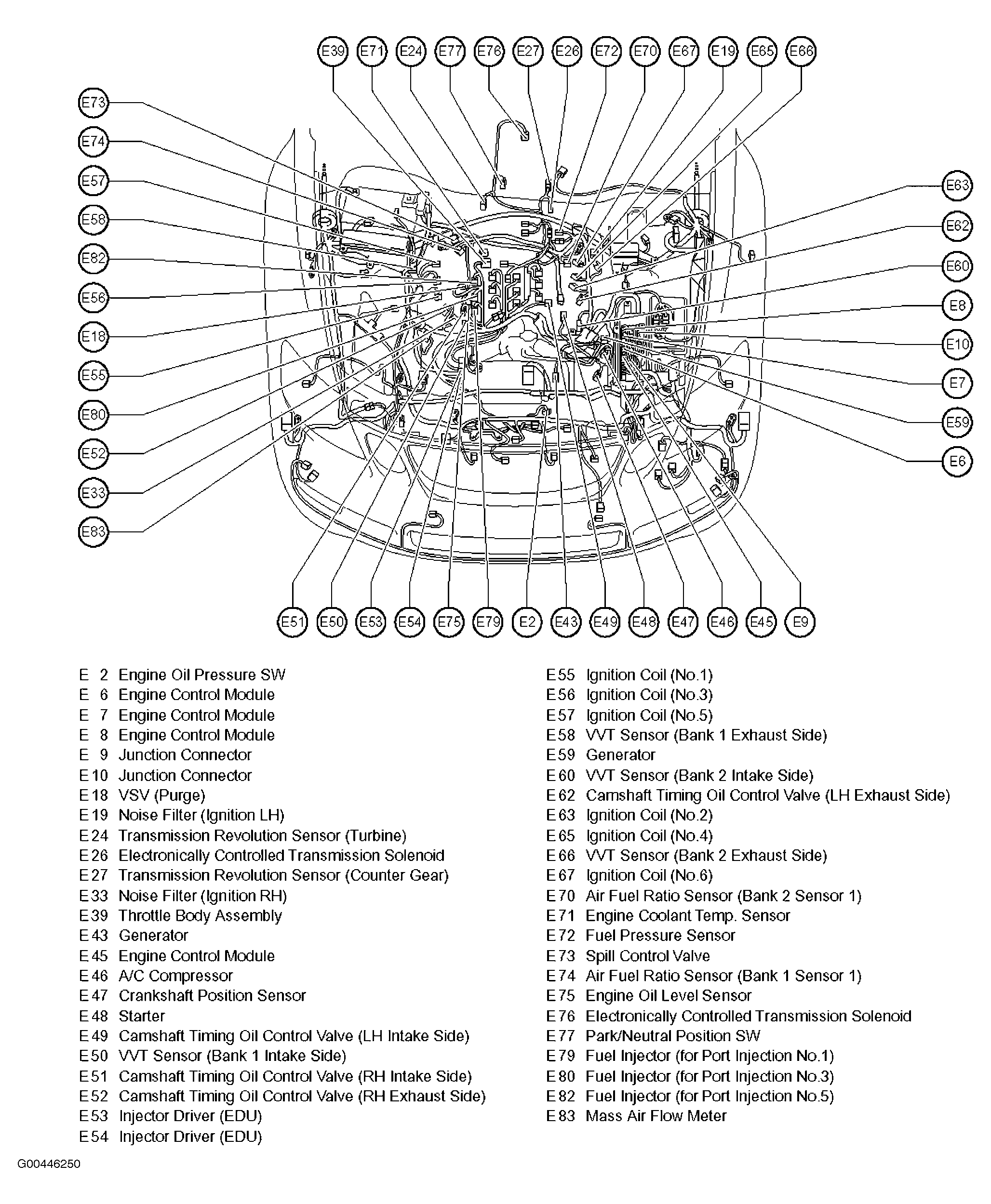

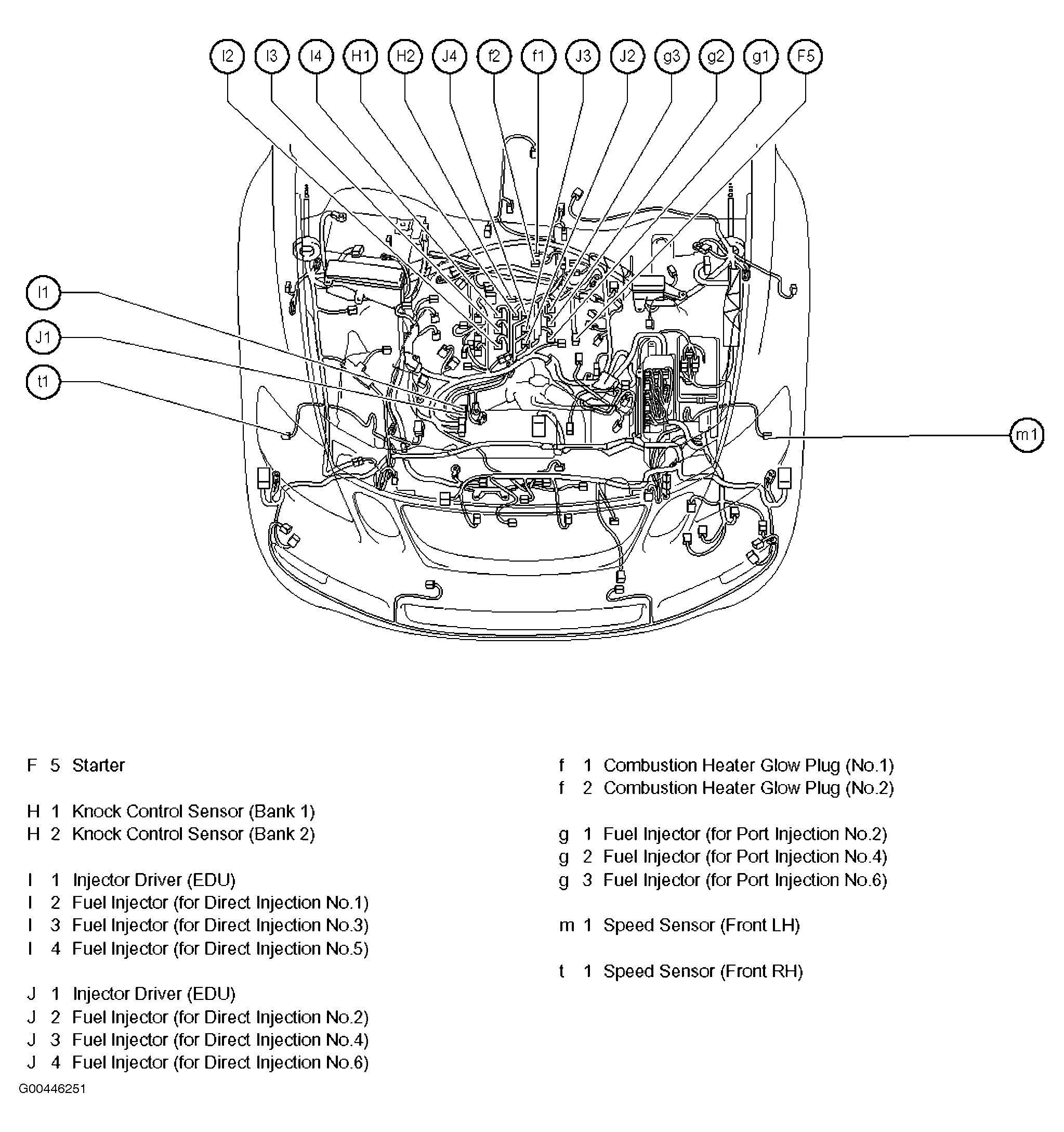

| Starter (3.5L) | Left rear of engine. See Figure. |

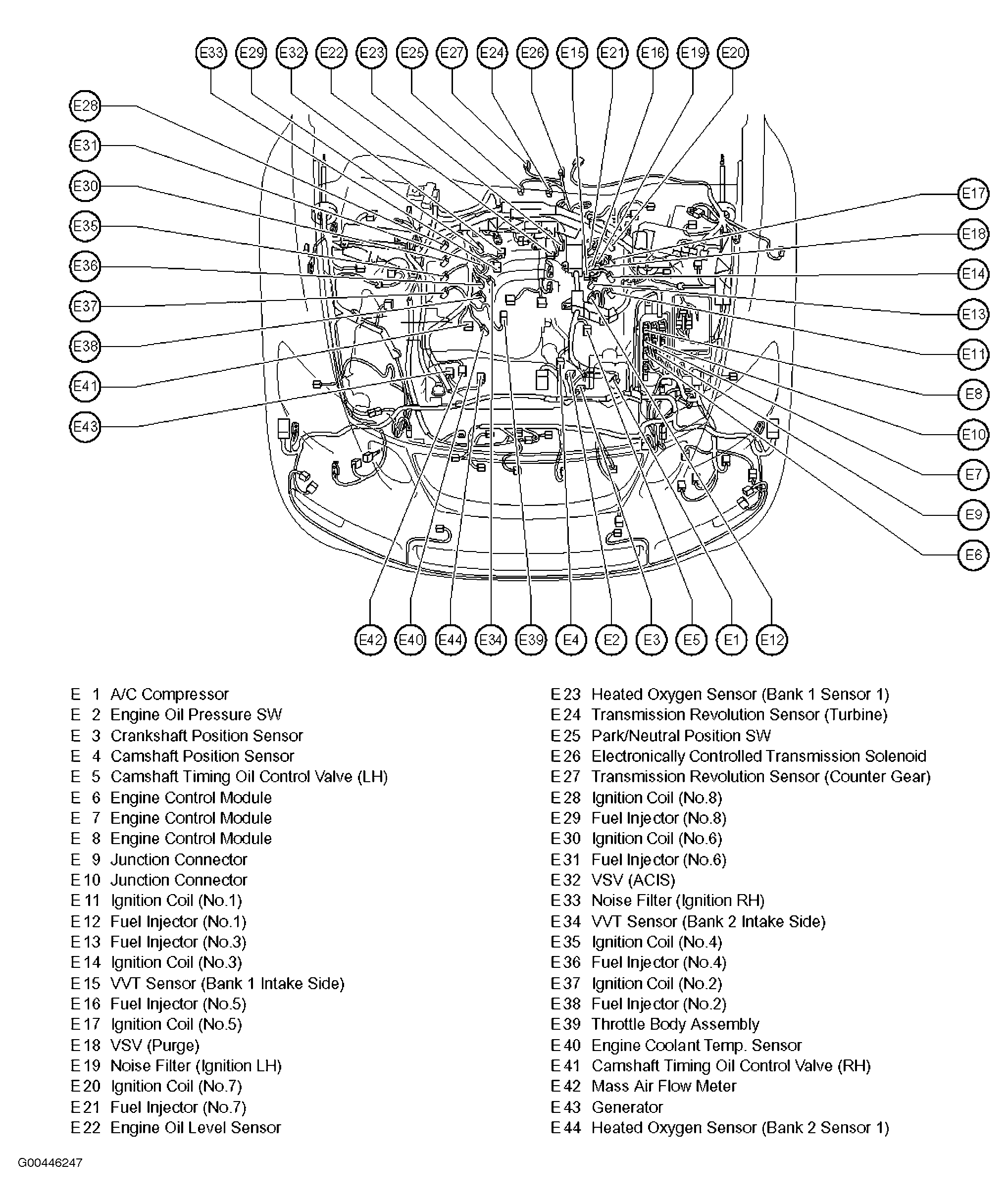

| Starter (4.3L) | Rear of engine. See Figure. |
| Steering Actuator | Behind left side of dash, near steering column. See Figure. |
| Throttle Body Assembly (3.5L) | Top of engine. See Figure. |
| Throttle Body Assembly (4.3L) | Top of engine. See Figure. |
| Tilt Motor | Under left side of dash. See Figure. |
| Windshield Washer Motor (3.5L) | At left front corner of engine compartment. See Figure. |
| Windshield Washer Motor (4.3L) | At left front corner of engine compartment. See Figure. |
| Windshield Wiper Motor (3.5L) | At rear of engine compartment. See Figure. |
| Windshield Wiper Motor (4.3L) | Rear of engine compartment. See Figure. |
