Rear Console Box: Components

Fig 1: Identifying Rear Console Box Components (1 Of 2)
G05300416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

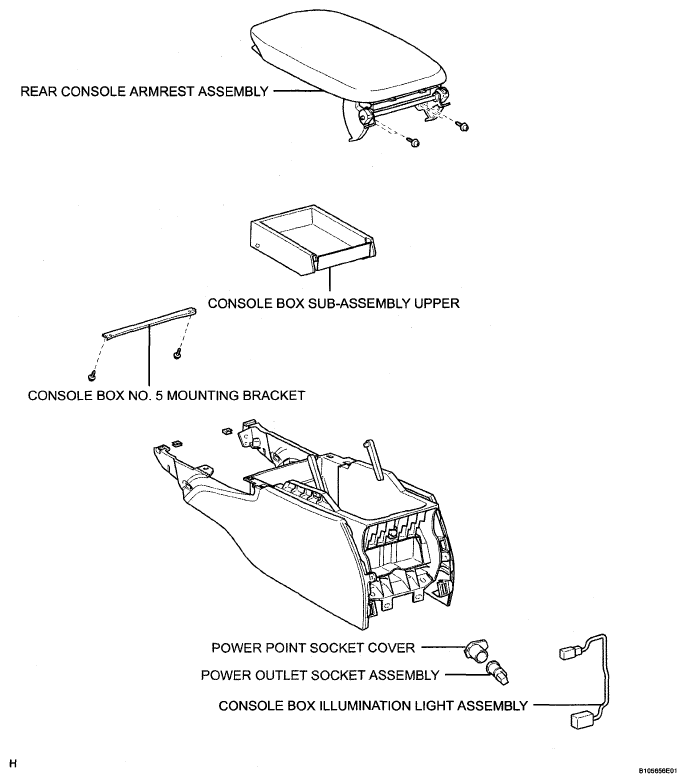

Fig 2: Identifying Rear Console Box Components (2 Of 2)
G05300417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
