Parts Location

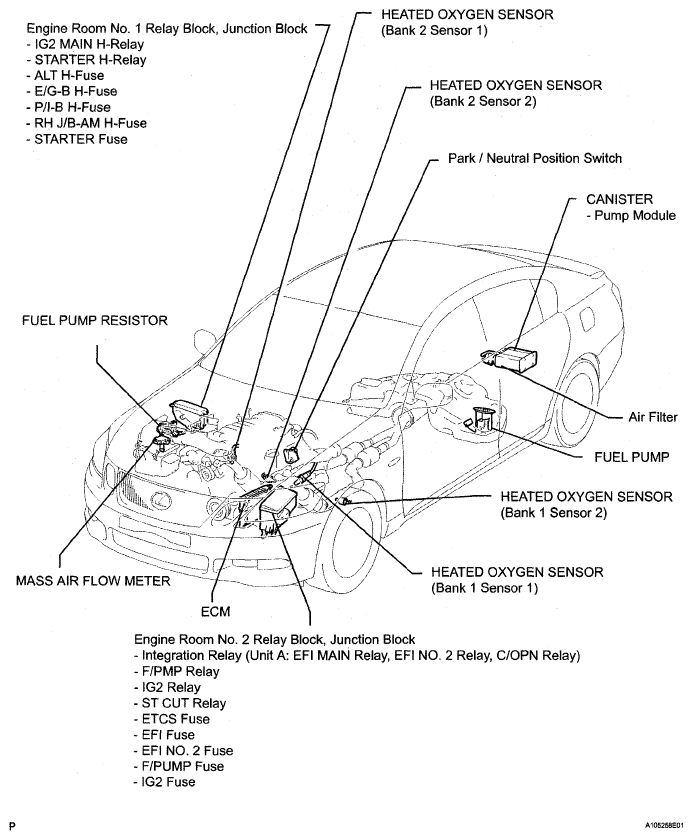

Fig 1: Identifying SFI System Parts Location (1 Of 3)
G05285417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

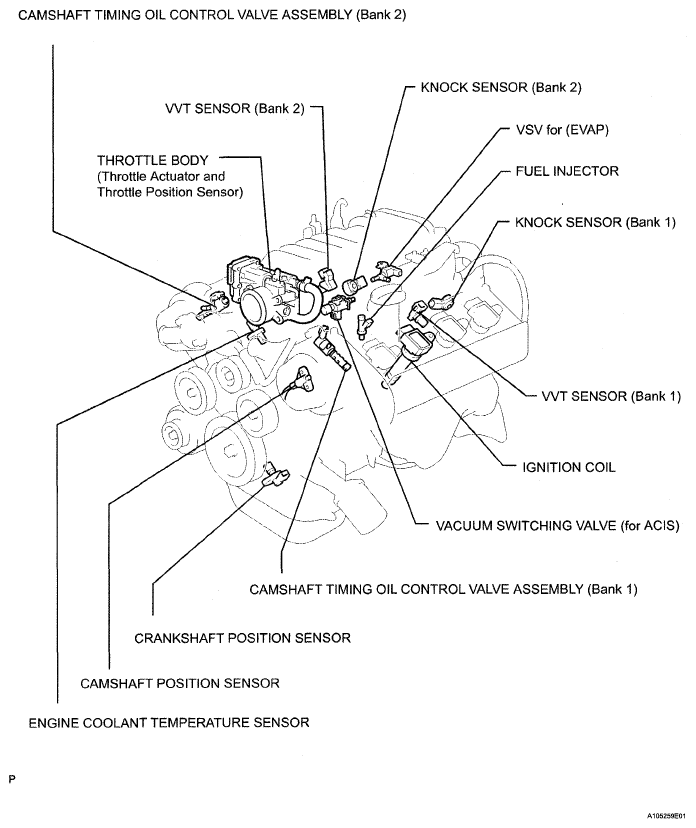

Fig 2: Identifying SFI System Parts Location (2 Of 3)
G05285418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

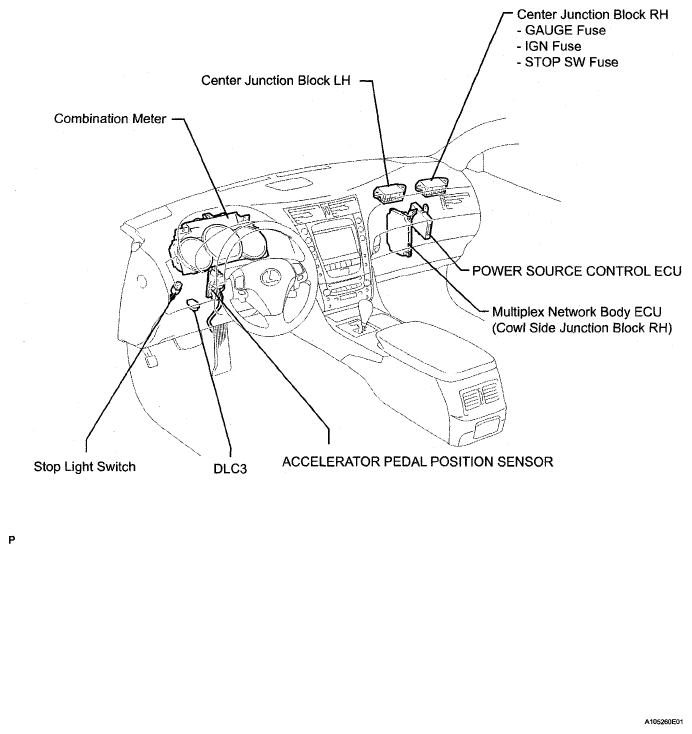

Fig 3: Identifying SFI System Parts Location (3 Of 3)
G05285419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
